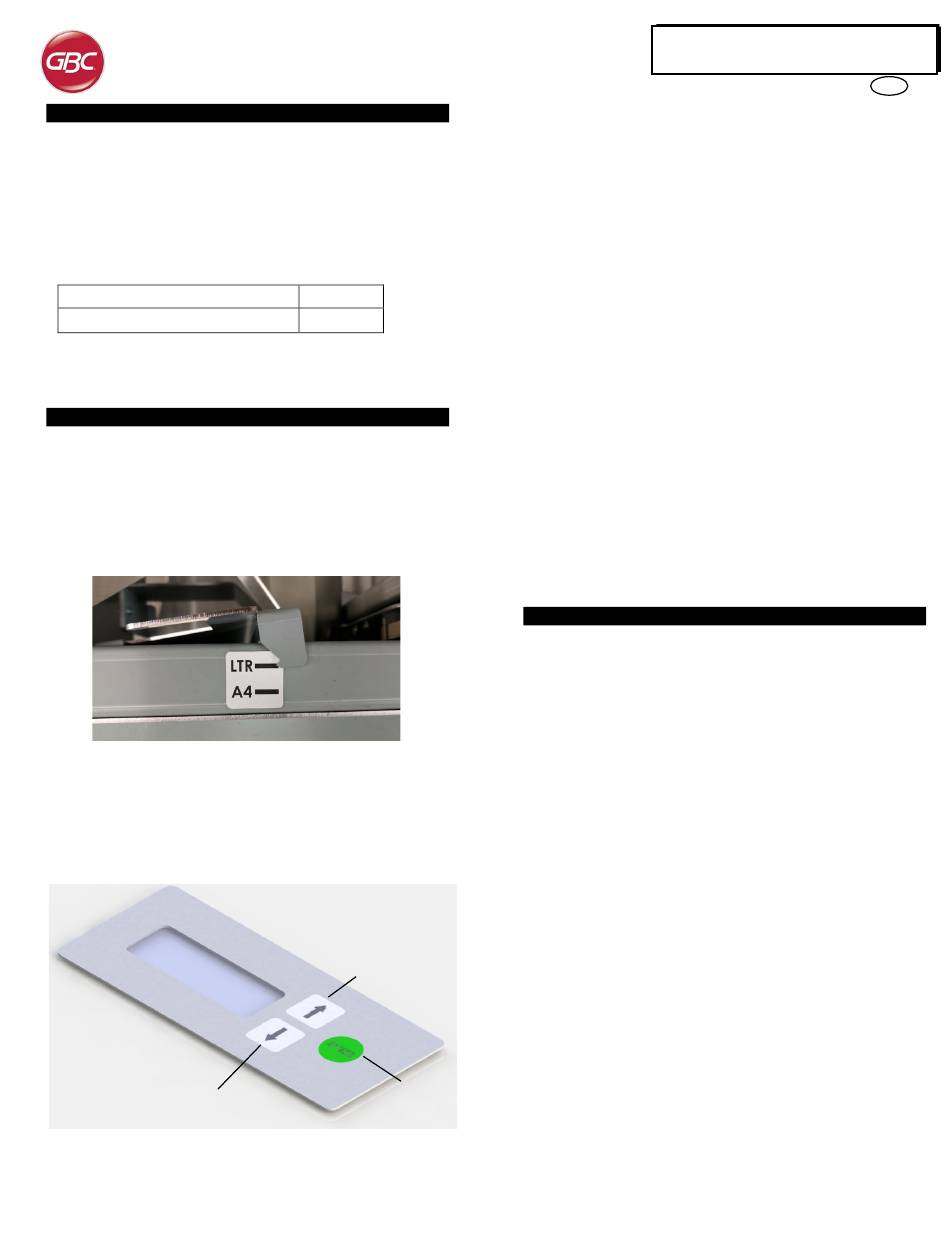

5. eWire VFX DIES
Prior to Operation of the eWire VFX, an eWire VFX die set must
be installed into the StreamPunch VFX. eWire VFX will not
function unless one of the die sets listed below is installed.
Die Set Details
A die set from the following list must be used. Refer to Section 10 of
this document for further details.
Die, eWire, 3:1, Round
Die, eWire, 3:1, Square
Punched Hole Quality
Prior to operating the eWire VFX for the first time, or whenever a die
set is changed, perform the hole quality check outlined in Section 9 B.

6. QUICK START GUIDE

eWire VFX must be connected to AC power and the rear ON/OFF
switch should be ON to enable any feature of the machine.
• A spool of the correct size twin loop wire must be installed
before running a bind job. See Section 7 B for details on
loading twin loop spools into the eWire VFX
• Ensure that the book drawer in area 4 is set to the size paper
you intend to use, shown below.
• Check that the StreamPunch VFX has an eWire VFX die as
detailed in Section 5.
• Do not open doors while the machine is operating. The
current job will not resume if any eWire VFX doors are
opened while "RUNNING BINDING" is displayed on the LCD.
When binding is not directed the machine will operate in bypass mode.
DOWN
Layout of eWire VFX LCD User Interface
7723484
7723485
UP
OK
6
Feeder Loading Directions
When running a book output from a printer and finisher.
1.
At the printer the set should be printed 1-N face up but the rear
cover should be printed first and face down.
2.
Once the set is completed on the finisher/stacker. The set should
be turned over and placed in the feeder tray.
3.
The feeder is then programmed for the number of the sheets in
the set.
4.
Once the book is bound the rear cover needs to be flipped to the
back of the book so that the spine of the wire is hidden between
the last body page and the rear cover.
When running a book from multiple feeder trays.
1.
Set the rear cover and front cover* in one tray so the order in the
tray from top to bottom is rear cover face up, front cover face
down.
2.
Set the main body in the other tray with the order of sheets from
top to bottom 1-N with the sheets orientated face down.
3.
From the feeder set the top layer as the correct number of body
sheets, set the bottom layer as 2 cover sheets.
4.
Set the feeder to the number of books needed or that are present
in the trays.
*When running with a clear cover front sheet, place the rear cover and
clear cover in one tray so that t he order in the dray from top to bottom
is rear cover face up, clear cover face up

7. USER OPERATIONS

A.
Removing Supply Spool from the Machine:
Supply spools can be removed from the machine before they are
empty to be stored for future use.
B.
Installing a New Supply Spool into the Machine:
eWire VFX offers a variety of different twin loop wire options,
depending on the requirements of your job. Load a new wire
supply spool if a different size or color of binding is required, or
when the spool is empty.
C.
Supply Spool Storage:
The twin loop wire supply spools should always be stored
according to the guidelines listed to prevent damage.
D.
Emptying the Book Drawer:
Empty the book drawer to remove your bound books.
E.
Clearing Jams:
How to clear paper or wire jams.
eWire VFX
GB
