4. eWire VFX OVERVIEW

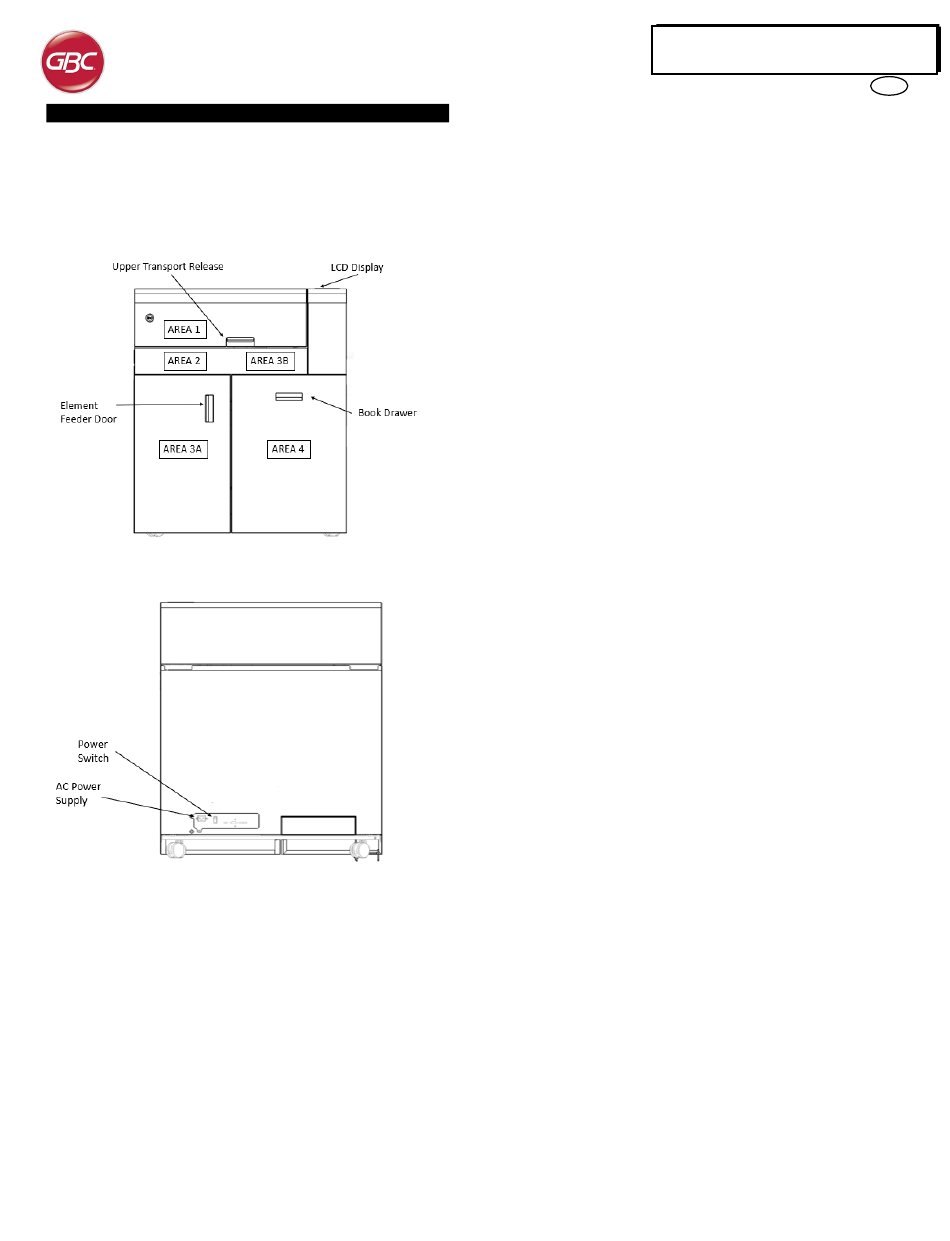

The picture below shows an overview of the eWire VFX system. Key
User Interface locations are identified. Functional areas are identified
to aid the user in troubleshooting. A jam can be categorized by
identifying where in the eWire VFX the jam occurs.
eWire VFX Overview
1.
Area 1
This refers to the area of the eWire VFX where sheets are fed in
and are either bypassed through the eWire VFX, or redirected
into the eWire VFX for binding
2.
Area 2
Refers to the area of the eWire VFX where sheets are transferred
onto the twin loop wire for binding.
3.
Area 3a
Refers to the area of the eWire VFX where twin loop wire is fed
off the supply spool and cut to length for binding. Area 3 primarily
refers to wire feed, not paper stacking.
4.
Area 3b
Refers to the area of the eWire VFX where the closer and holder
are located. The closer compresses the open binding element to
finish the book. The Holder holds the element while sheets stack.
5.
Area 4
Refers to the area of the eWire VFX where bound books are
stacked.
6.
Book Drawer
Pulling the Book Drawer handle will allow the user to access the
completed book stack for removal. The book drawer is only to be
opened when the feeder is in standby.
7.
Element Feeder Door
Open the door and release the Element Feeder tray to access the
twin loop supply spool. The element feeder door is only to be
opened when the feeder is in standby.
8.
Upper Transport Release
Release the latch and raise the lid to open the upper section of
the bypass panel. The lower bypass panel can also be raised, by
lifting the handle. Access this area of the machine for jam
clearance.
9.
LCD Display
The LCD will provide key information about the system, and also
allow the user to access settings on the eWire VFX.
10. AC Power Supply
Location for the power supply cord. Use only the cord provided.
11. Power Switch
Use to turn off power to the eWire VFX during service, or if the
eWire VFX will not be used for a long period of time.
