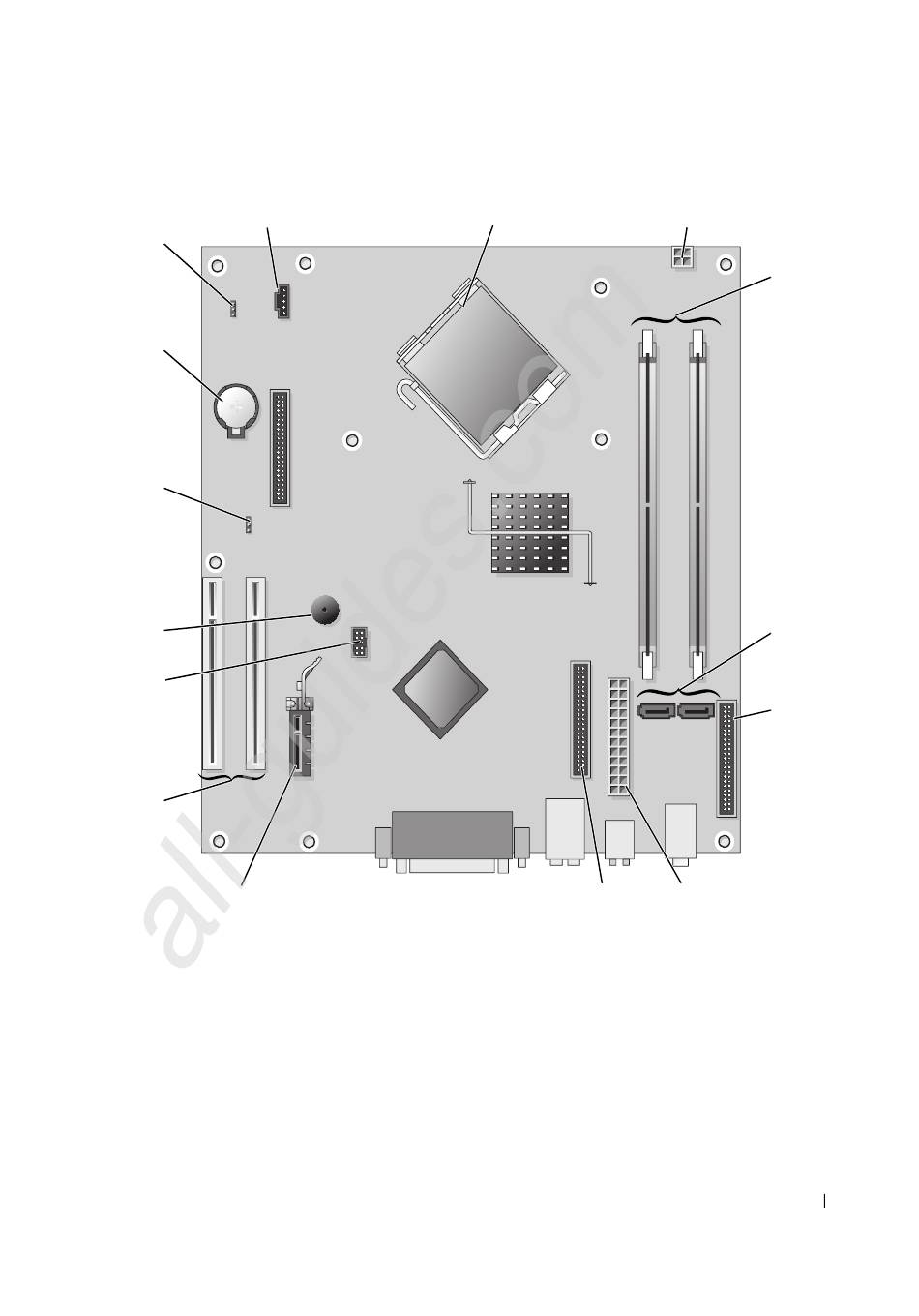

System Board Components
15
14
13
12
11
10
9
1
fan connector (FAN)
2
processor connector (CPU)
3
power connector (12VPOWER)
4
memory module connectors (DIMM_1, DIMM_2)
5
serial ATA drive connectors (SATA0, SATA2)
6
front-panel connector (FNT_PANEL)
7
power connector (POWER)
8
CD/DVD drive connector (IDE)
All manuals and user guides at all-guides.com
1
2
8
9
PCI Express x1 card connector
10
PCI card connector (2)
11
FlexBay USB connector
12
Piezo speaker
13
password jumper (PSWD)
14
battery socket (BATT)
15
RTC reset jumper (RTCRST)
