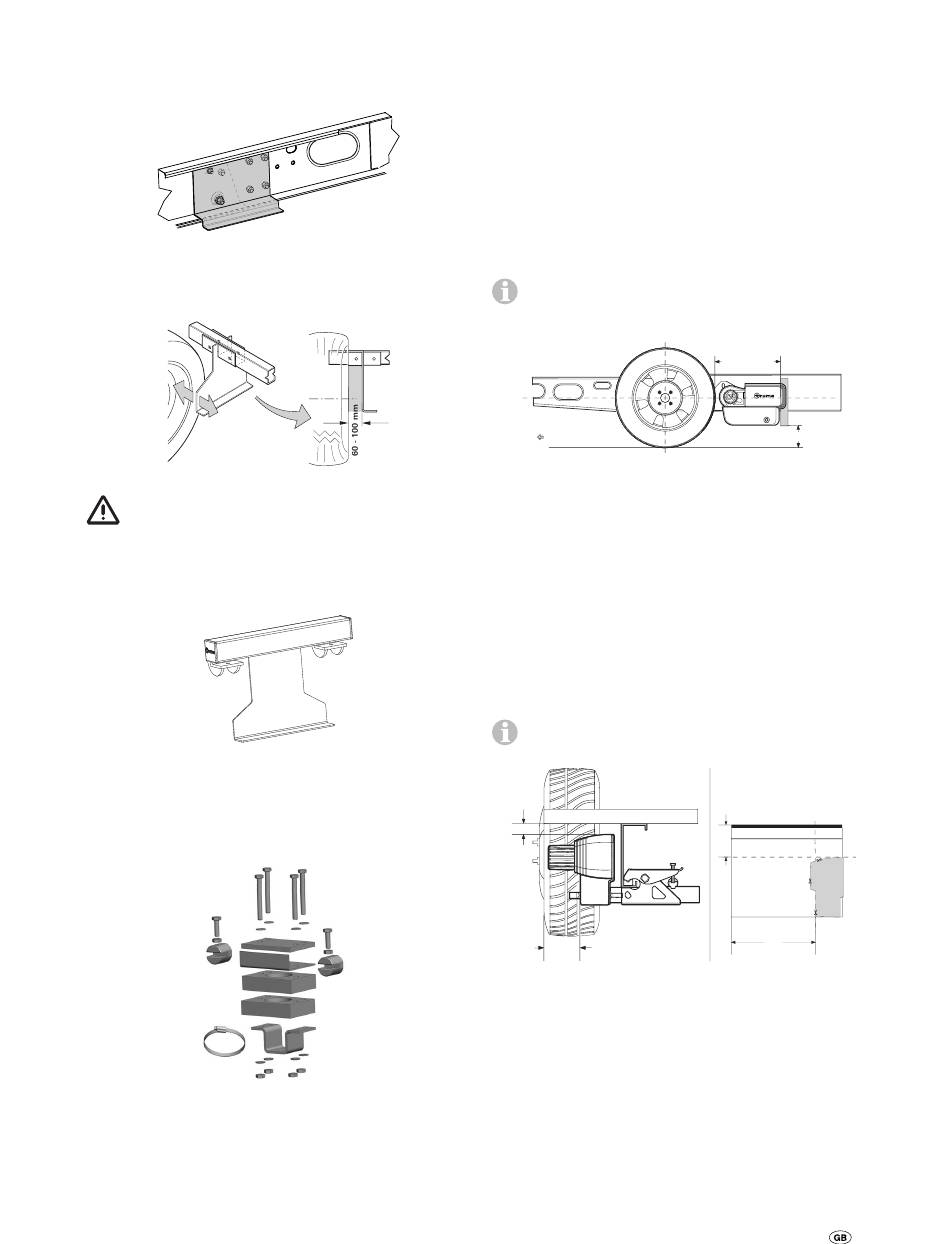

8. Adapter kit AL-KO M 1900 – 2000 kg
For chassis with a continuous frame and a permissible
gross weight of 1900 kg - 2000 kg
For compensating for frame edges for caravans with
AL-KO chassis M. The adapter kit is needed for mounting in
front of the axle, part no. 60031-02000.
Figure 14
9. Eriba Touring adapter kit
Part no. 60030-09000
Figure 15
In some cases installation is not possible because of the
design of the sub-frame. Contact your dealer if necessary.
10. Eriba Touring Troll adapter kit
The Eriba Touring Troll adapter kit allows installation of the
Mover behind the axle on an Eriba Touring Troll caravan,
part no. 60031-03000.
Figure 16
11. Short mounting system
Replacement for standard mounting system if this cannot be
used due to lack of space and to compensate for the height
(30 or 60 mm) of substructures such as tanks,
part no. 60031-20000.
Figure 17
All manuals and user guides at all-guides.com
Selecting a location
The Mover should preferably be mounted in front of the axle,
but in exceptional circumstances (e.g. lack of space) it is also
possible to mount it behind the axle. Only use the bolts pro-
vided (or the mounting parts available as special accessories)
to attach the Mover.
Mudflaps
When a Mover® is fitted, the existing mudflaps must be
moved / adapted if necessary (max. distance between
tyre / mudflap 300 mm).
If the original mudflaps cannot be used, the Truma mudflap kit
(part no. 60031-08200) must be used and adapted.
Figure 18
Adapting the mudflaps to the Mover
1. Remove the mudflaps
2. Install the Mover in accordance with the following installation
3. Determine the dimensions a and b and transfer them to the
Determining the cut-out sizes
Figure 19
Cut out the template in the appendix, place it onto the mud-
flap, transfer the contour and cut out.
If necessary, make recesses in the mudflap for apron contour
and attach the mudflap to the underside of caravan 300 mm
from tyre.
The mudflaps are installed behind the axle. No mudflaps
are required in front of the axle.
Mover® SX
Direction of travel
instructions.
mudflaps. The top leg of the fastening bracket must face
towards the rear of the caravan.
Pay attention to left and right sides!
Mover®
SX
a
b
max.
300 mm
Mover®
SX
max. 200 mm
a
b
