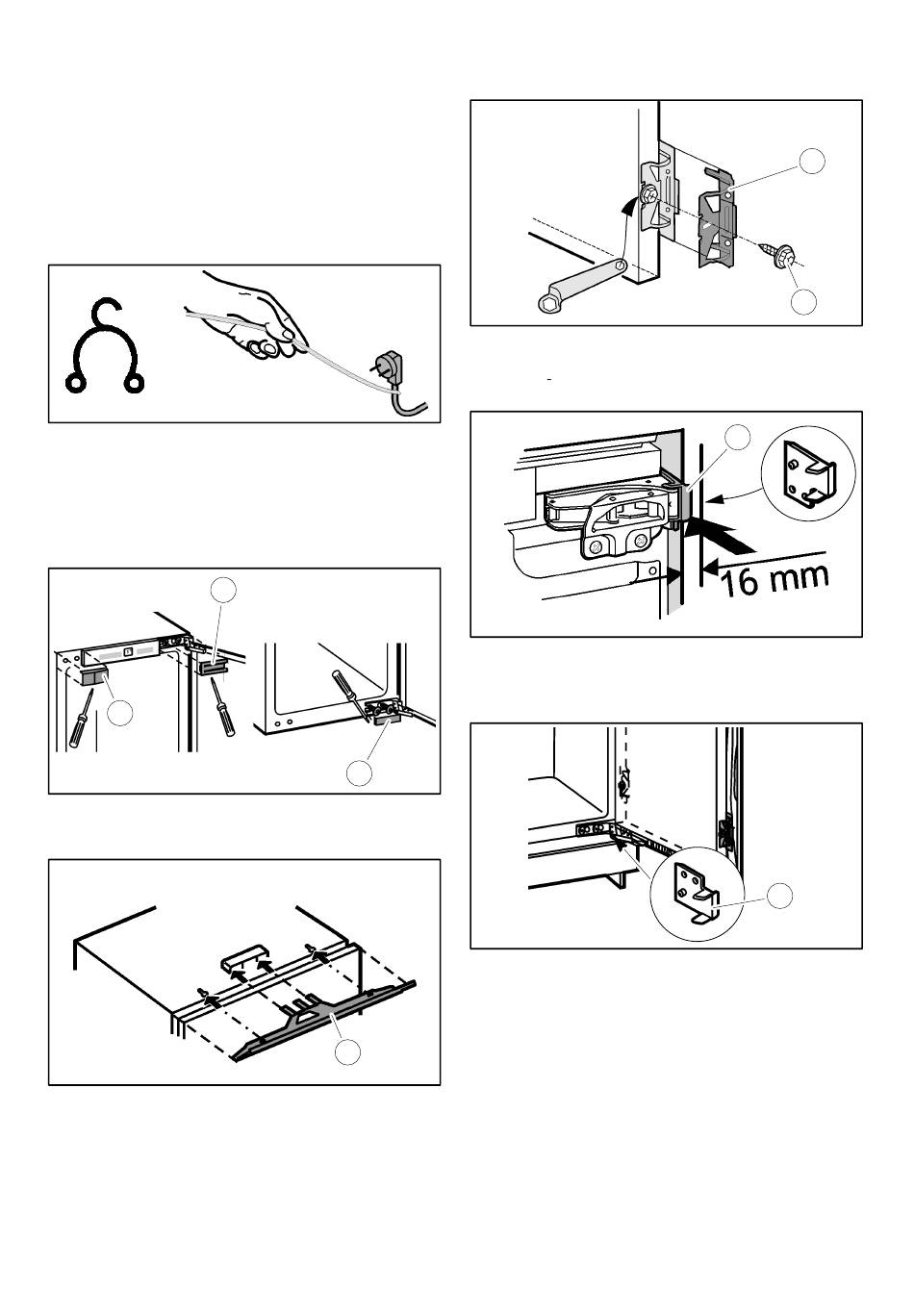

Fitting the appliance
1. Check the installation dimensions.
2. Remove the connecting cable from the rear of the
appliance. In doing so, remove the cable clip to
prevent vibration noises.
3. Using a cord, lay the connecting cable in such a way
that the appliance can be connected easily after
installation.
4. Slide the appliance 3/4 of the way into the recess.
6
4
5. Lift the cover parts (4), (6) and (7).
6. Slide the compensating panel (11) to the centre of
the bar retainer and hook it into the keyholes.
All manuals and user guides at all-guides.com
7. Screw all mounting angles (12) with the screw (13) in
8. If the kitchen unit walls are 16 mm thick:
7
9. If the kitchen unit walls are 16 mm thick:
11
the pre drilled holes on the appliance door.
Clip the spacer (14) onto the upper hinge.
Clip the spacer (15) onto the lower hinge.
12
13
14
15
