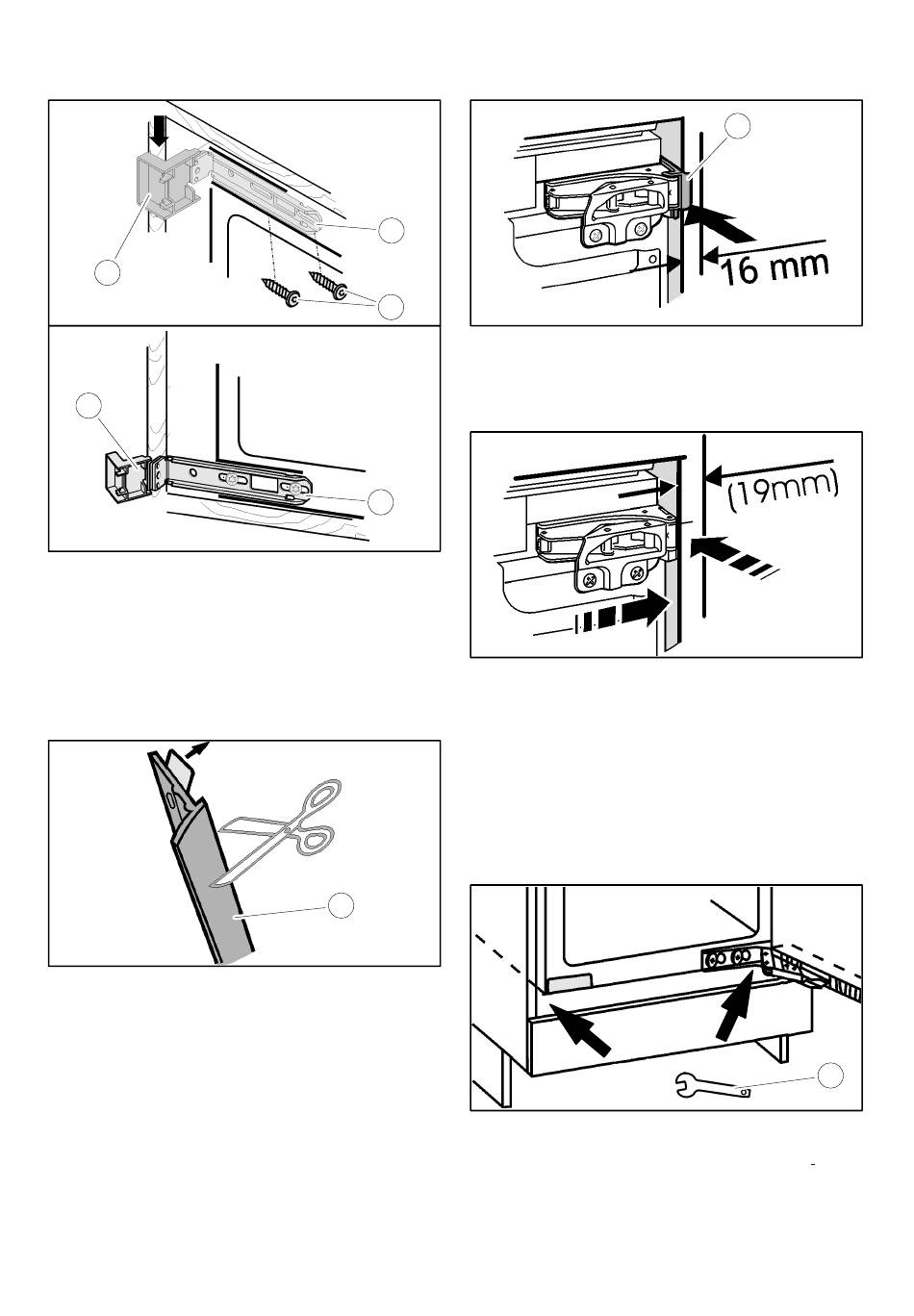

10. Place the covers (16) into the mounting angle at the
top and bottom (17).
11. Secure the mounting angle (17) at the top and
bottom using the screws (19). Do not tighten the
screws completely. The mounting angle (17) must
still be able to move to the left and right.
12. Remove the protective foil from the cover strip (20).
13. Position the handle side of the cover strip (20) flush
mounted on the lug of the upper cover (16) and stick
it to the side wall of the appliance.
14. Shorten the cover strip (20) at the bottom if required.
The cover strip (20) must end 3 mm above the upper
edge of the lower mounting angle (17).
15. Slide the appliance into the recess until the covers
(16) butt against the side wall of the kitchen unit.
36
All manuals and user guides at all-guides.com
17
19
16. If the kitchen unit walls are 16 mm thick:
17
17. If the kitchen unit walls are 19 mm thick:
18. In the case of kitchen units (16 mm and 19 mm)
20
19. Set up the appliance in an upright position by means
Allow the spacers (14) to butt against the side wall of
the kitchen unit.
Align the front edges of the hinges flush with the
side wall of the kitchen unit.
with door jamb parts (knobs, sealing lips, etc.):
Bear in mind the installation dimension (depth of the
door jamb parts): Allow hinges and covers (16) to
project from the installation dimension.
of the threaded feet using the enclosed open ended
spanner (21).
14
21
