English
6

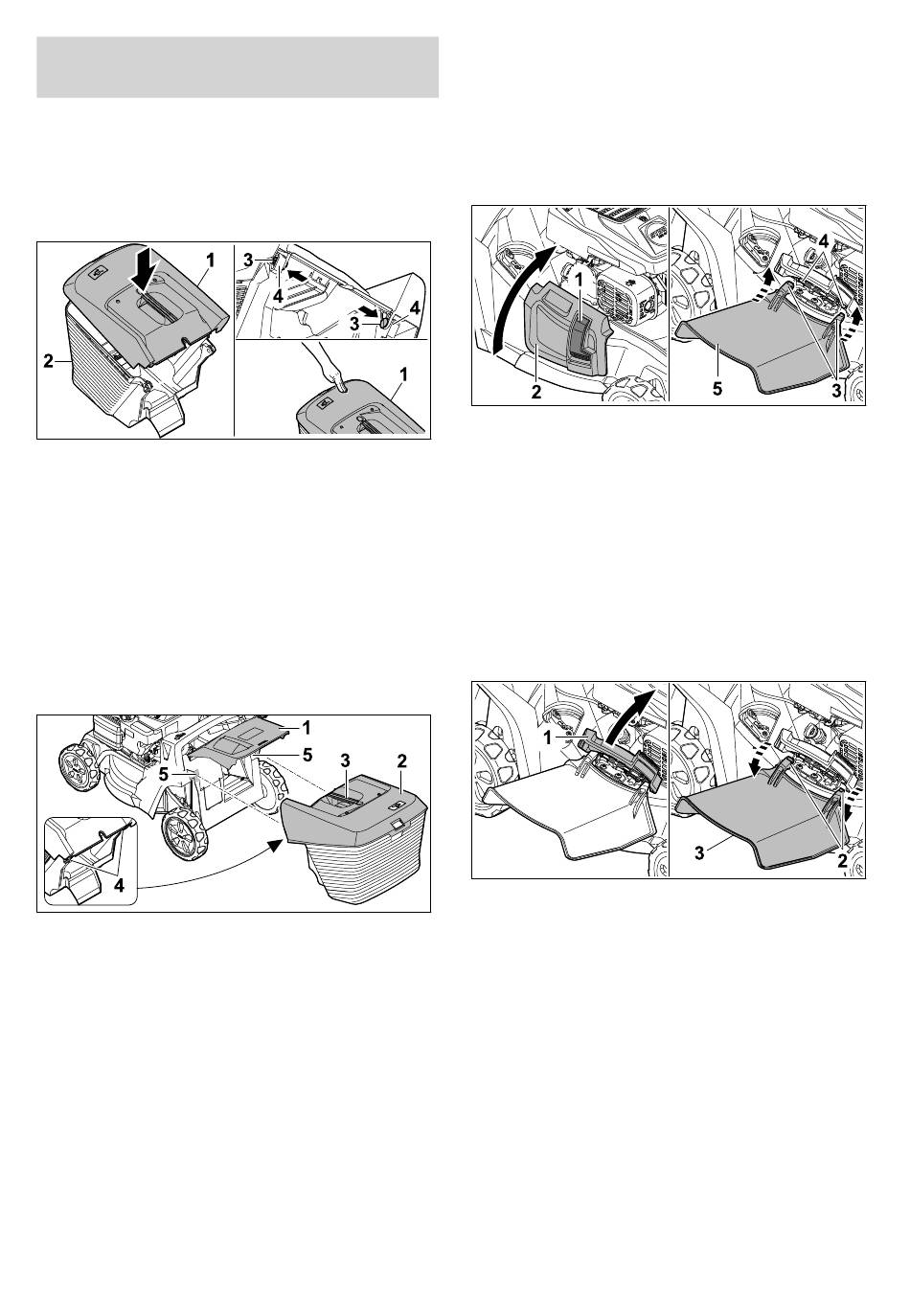

Assembling the Lawn
Mower
6.1
Assembling, Attaching and
Detaching the Grass Catcher
Box
6.1.1
Assembling the Grass Catcher Box
► Fit upper part of grass catcher box (1) onto
lower part of grass catcher box (2).
► Press pins (3) through openings (4) from the
inside.
► Press upper part of grass catcher box (1)
downwards.
The upper part of the grass catcher box
engages with a click.
6.1.2
Engaging the grass catcher box
► Shut off the engine.
► Place the lawn mower on a level surface.
► Open discharge flap (1) and keep it open.
► Take hold of grass catcher box (2) by han‐
dle (3) and engage the hook (4) from above
into the mounting notches (5).
► Lower the discharge flap (1) onto the grass
catcher box (2).
6.1.3
Detaching the Grass Catcher Box
► Stop the engine.
► Place the lawn mower on a level surface.
► Open the discharge flap and hold it open.
► Remove the grass catcher box upwards by the
handle.
► Close the discharge flap.
30
6 Assembling the Lawn Mower
6.2
Attaching and Detaching the
Extension
6.2.1
Attaching the Extension
► Stop the engine.
► Detach the spark plug socket.
► Place the lawn mower on a level surface.
► Press lock (1) and hold.
► Open side discharge flap (2) and hold it open.
► Attach both hooks (3) to the axle (4) from
below.
► Set down side discharge flap (2) on exten‐
sion (5).
► Connect the spark plug socket.
6.2.2
Detaching the Extension
► Stop the engine.
► Detach the spark plug socket.
► Place the lawn mower on a level surface.
► Open side discharge flap (1) and hold it open.
► Unhook both hooks (2).
► Fold extension (3) upwards and remove.
► Close side discharge flap (1).
► Connect the spark plug socket.
6.3
Adding Engine Oil
The engine oil lubricates and cools the engine.
The engine oil specification and capacity can be
found in the engine instruction manual.
0478-111-9661-A
