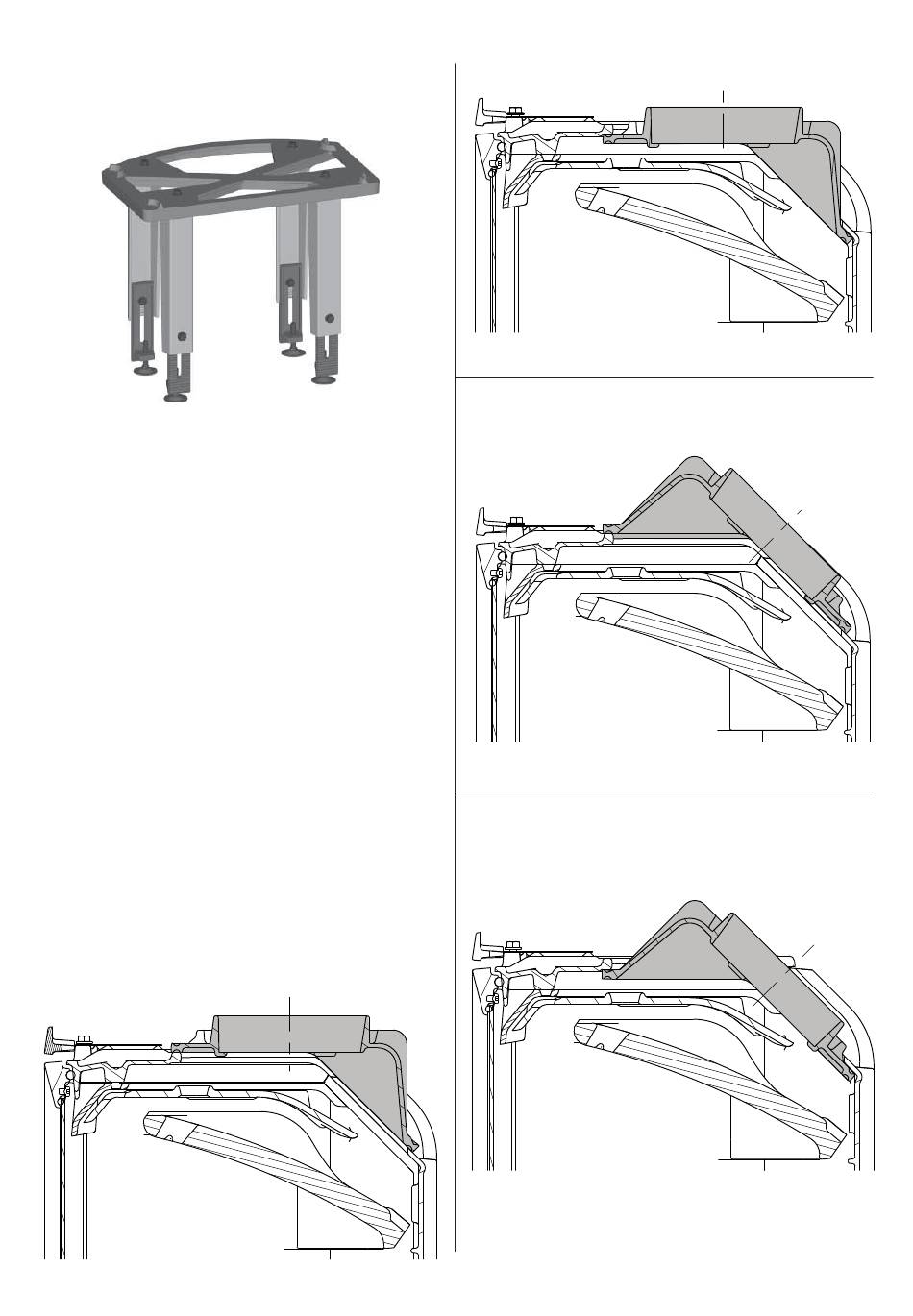

Installation of leg rack (optional)
If building a brick surround, the leg base (optional, item no.
51044759) must be used. See Fig. 1 e and f.
Door hinges
The door is left-hinged as standard but can be changed to right-
hinged if required. If so, it should be changed before placing
the stove inside the hearth or surround.
An optional kit is required to change the door
hinging.
Item no. 50045754. (See the manual, item no. 10045851,
which comes with the assembly kit.)
4.8 Connection to chimney
Before installing the product, you need to decide how it is to be
connected to the chimney.
Installation of the smoke bell
The smoke bell can be installed from the outside and the inside.
It is factory-fi tted on the outside for a top outlet, but can be
mounted to a top outlet from the inside. It can also be rotated
45° (rear outlet) for installation from both outside and inside.
If installing from the inside, the burn plates, baffl e and exhaust
defl ector must be removed.
Fig. 5
Top outlet installed from the outside
(factory-fi tted)
14
Top outlet installed from the inside
Rear-installed smoke outlet (rotated 45°)
from the outside
Rear-installed smoke outlet (rotated 45°)
from the inside.
