ENGLISH

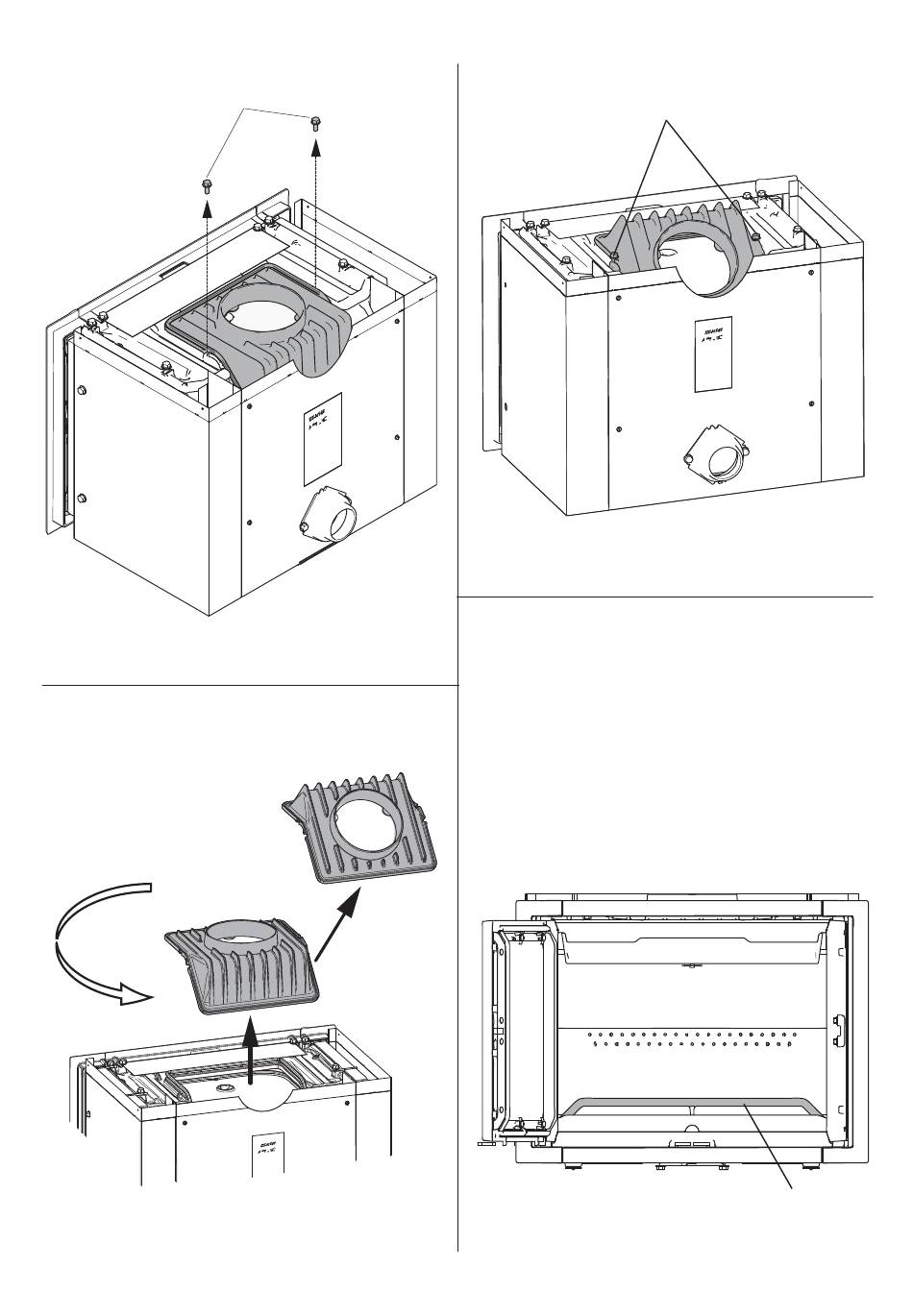

Fig. 10
3. Remove the two screws (A) that are holding the smoke bell
to the burn chamber.
Fig. 11
Top outlet
o
180
4. Lift the smoke bell up and rotate it 180°.
16
A
Rear outlet
Fig. 12
5. Screw the smoke bell onto the burn chamber again using
the same two screws (A).
4.9 Installation
Installation of internal smoke bell
The product comes in four diff erent models. The installation
procedure depends on which model is being fi tted:
For the following three models, follow Figures 13 to 20.
•
For the Jøtul I 520 F (glass in the front), Jøtul I 520 FL (glass
in the front and left side) and Jøtul I 520 FR (glass in the
front and right side).
•
For the Jøtul I 520 FRL (glass in front and on both sides),
follow Figures 14 to 20.
Fig. 13
1. Open the door and remove the log retainer (A).
A
A
