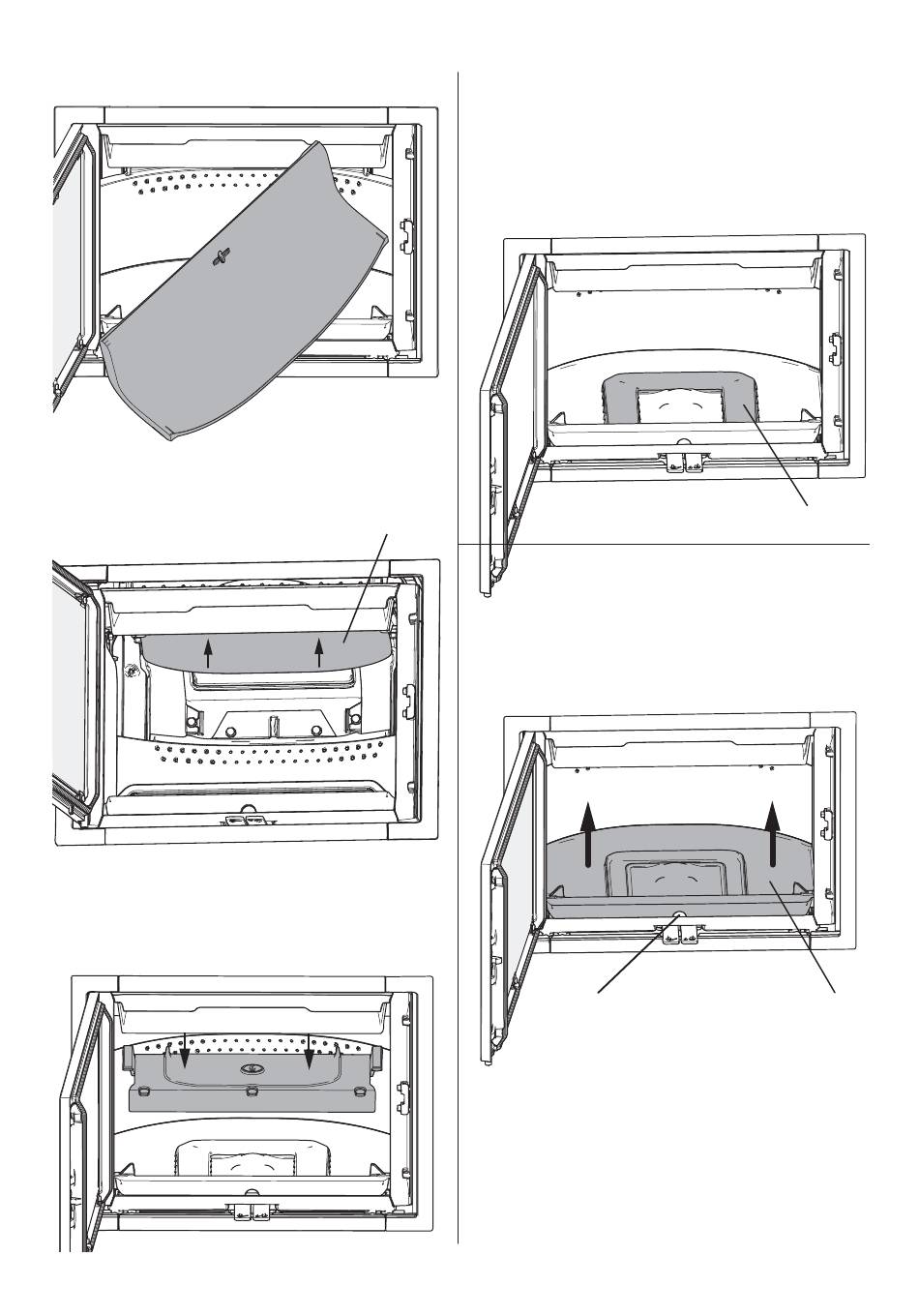

Fig. 46
5. Turn one corner towards you and pull it out sideways.
Fig. 47
6. Then remove the exhaust defl ector (A) by raising it slightly
to begin with. Then push the exhaust defl ector backwards.
Fig. 48
2
32
7. Lower the exhaust defl ector and lift it out.
8. When refi tting, follow the same procedure in reverse order.
A
1
7.2 Replacing the air duct and
inner bottom
It is important that the insert is level when installing it inside
a brick or prefabricated surround and hearth/open fi replace.
Fig. 49
1. Lift the air duct (A) up and remove it.
Fig. 50
B
2. Take hold of the hole (B) at the front edge of the inner bottom
(A) and lift it up.
A
A
