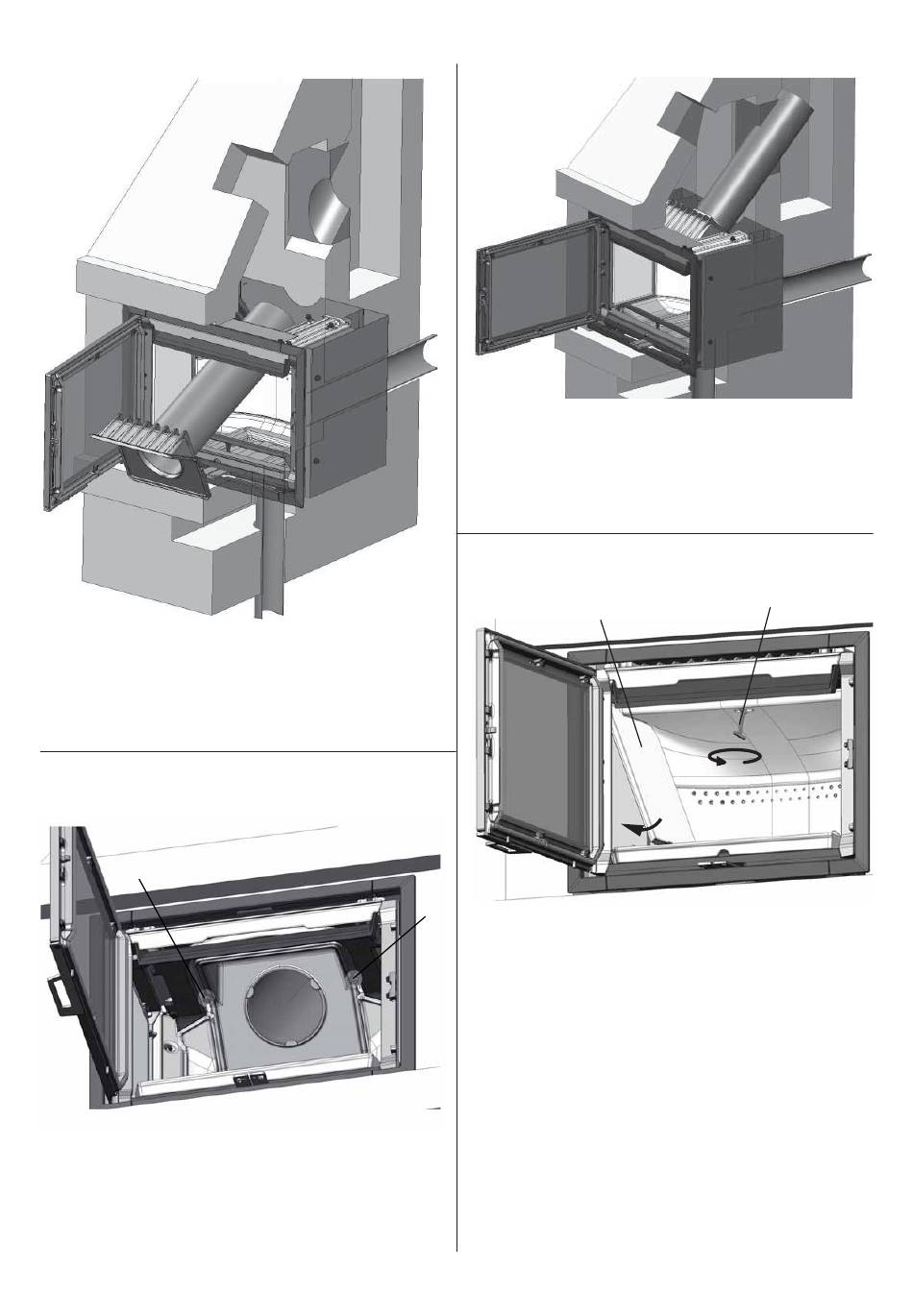

Fig. 35
5. Attach the smoke bell (A) to the end of the fl ue pipe where
the gasket is fi tted.
6. Attach the fl ue pipe with the smoke bell on from the inside
of the burn chamber.
Fig. 36
A
7. Then attach the smoke bell using the screws (A) that had
previously been removed when it was taken off the top outlet.
Fig. 37
8. If installing as shown in example 3, we recommend
threading the fl ue pipe in through the door opening of the
burn chamber. Push the fl ue pipe with the smoke bell on in
through the door opening and the opening for the smoke
bell and any insulation material and up inside the chimney.
Fig. 38
B
A
9. Push the key (A) up through the opening in the baffl e, turn
it and secure it.
10. Insert the side burn plates (B) into place.
ENGLISH
A
27
