F. Power supply requirement
3.6 V DC ~ 4.2V DC
G. Optical Sensor
Red light (wavelength is 660nm,6.65mW)
Infrared (wavelength is 905nm, 6.75mW)
H. Adjustable alarm range
SpO2 : 0%~100%
Pulse Rate : 0bpm~254bpm
5. Installation

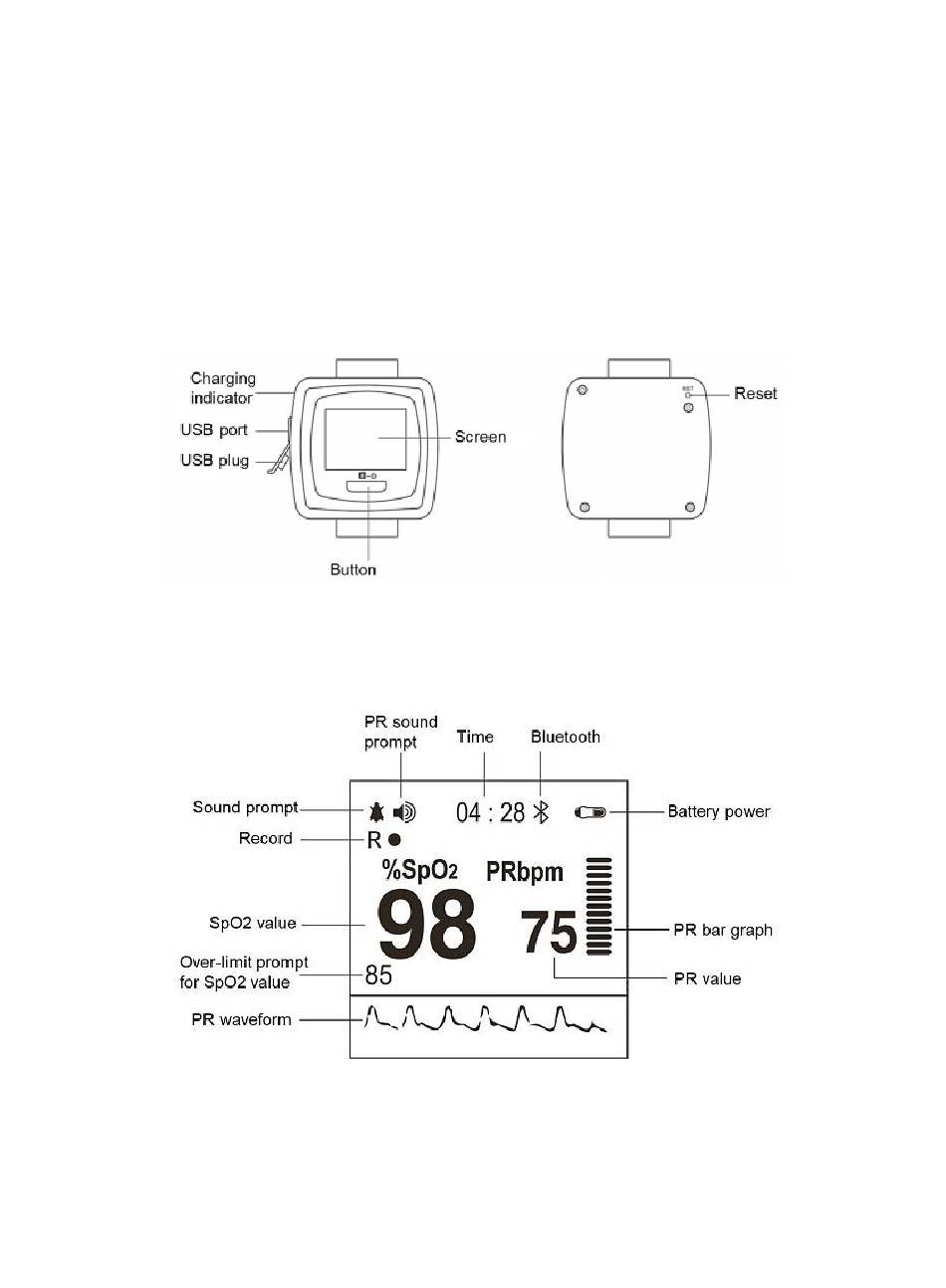

5.1 Appearance
USB interface: connect with USB cable or SpO2 probe
Button: power on, pause sound prompt, display clock, enter menu, menu operation.
RESET hole: reset button inside of it, to reset the device.
5.2 Interface introduction
5.3 SpO2 probe installation
Open the USB plug of the device, then insert the SpO2 probe interface into the USB port of the
device.
5.4 Connection of USB cable
Open the USB plug of the device, insert the micro end of USB cable into the SpO2 probe interface ,
the other end into computer or power adapter.
Figure 2 Appearance
Figure 3 Measurement interface
