5.5 Structure and accessories

A. Structure: main unit, SpO2 probe, USB cable, power adapter (optional).

B. Accessories: one SpO2 probe, one USB cable, one power adapter (optional), one User Manual.

Please check the device and accessories according to the list to avoid that the device can not work

normally.

6.1 Measurement

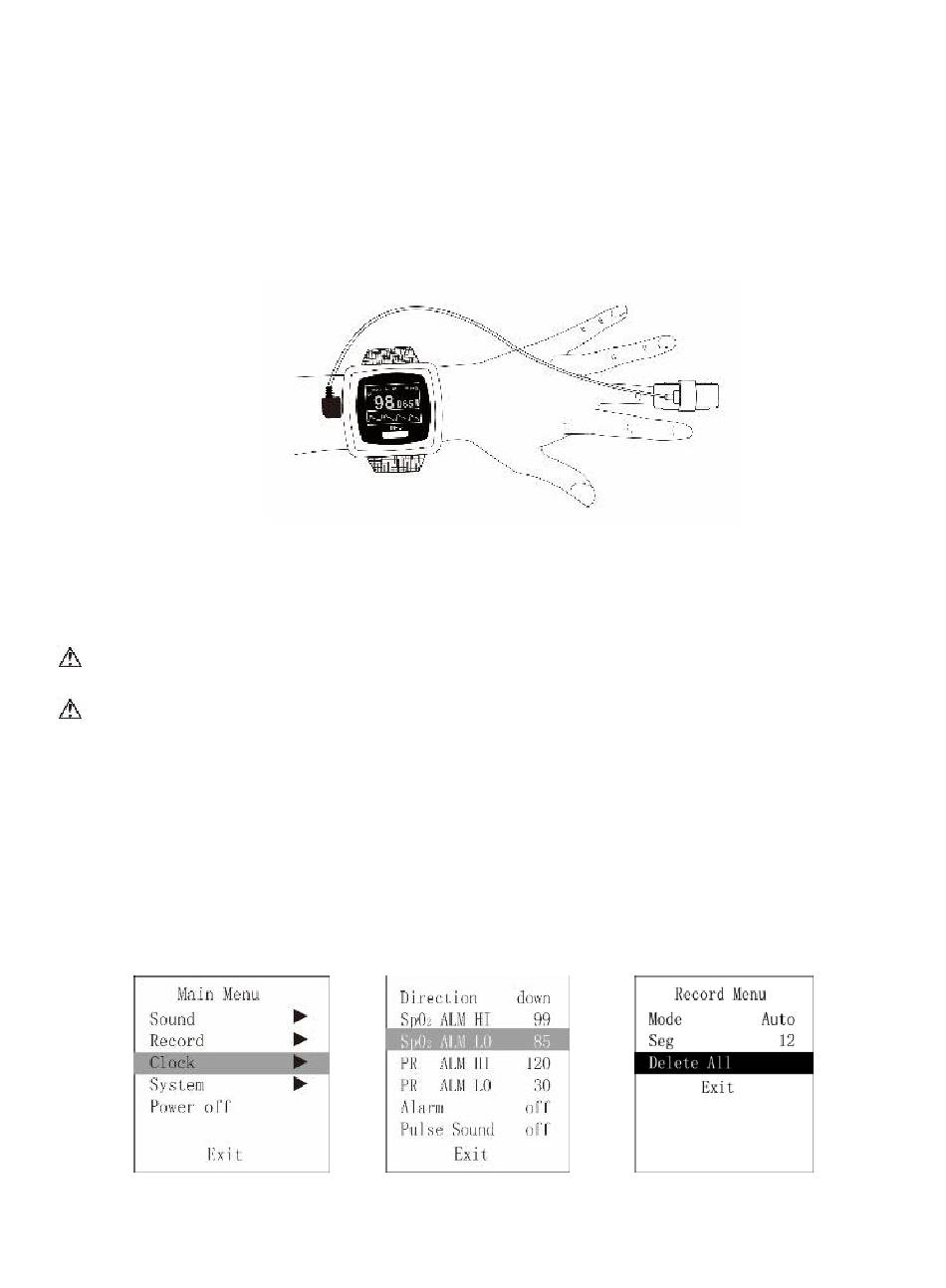

A. Insert the finger into the probe as shown in Figure 4.

(The appearance of actual probe may be different with the one shown as Figure 4, please refer

to the actual probe.)

B. Press button to turn on the device, it displays the measurement interface.

C. Wait a few seconds, the device directly shows measurement result on the screen.

When inserting the finger, the light emitting from the sensor must be directly irradiated to

the side of the fingernail.

During measuring, do not shake the finger and keep quiet, not move.

6.2 Measurement interface

A. In sound prompt "ON" state, when the sound prompt occurs, short press the button to pause

the sound prompt, and it will resume automatically after about 60s.

Sound prompt includes over-limit prompt, low-battery prompt, probe off or finger out prompt.

B. If you want to turn off the sound prompt permanently, please set it in menu.

If there is no sound prompt, short pressing the button will directly enter clock interface, press

again to exit.

6.3 Menu operation

Under the measurement interface, long press the button to enter the main menu interface as

shown in Figure 5, sound, record, clock,system, etc. can be set, methods are as followings:

Fig. 5 Main menu

Under main menu, short press the button to select "Sound", then long press the button to enter

its setting interface shown in Figure 6.

Fig. 4

Fig. 6 Alarm menu

Fig. 7 Record menu
