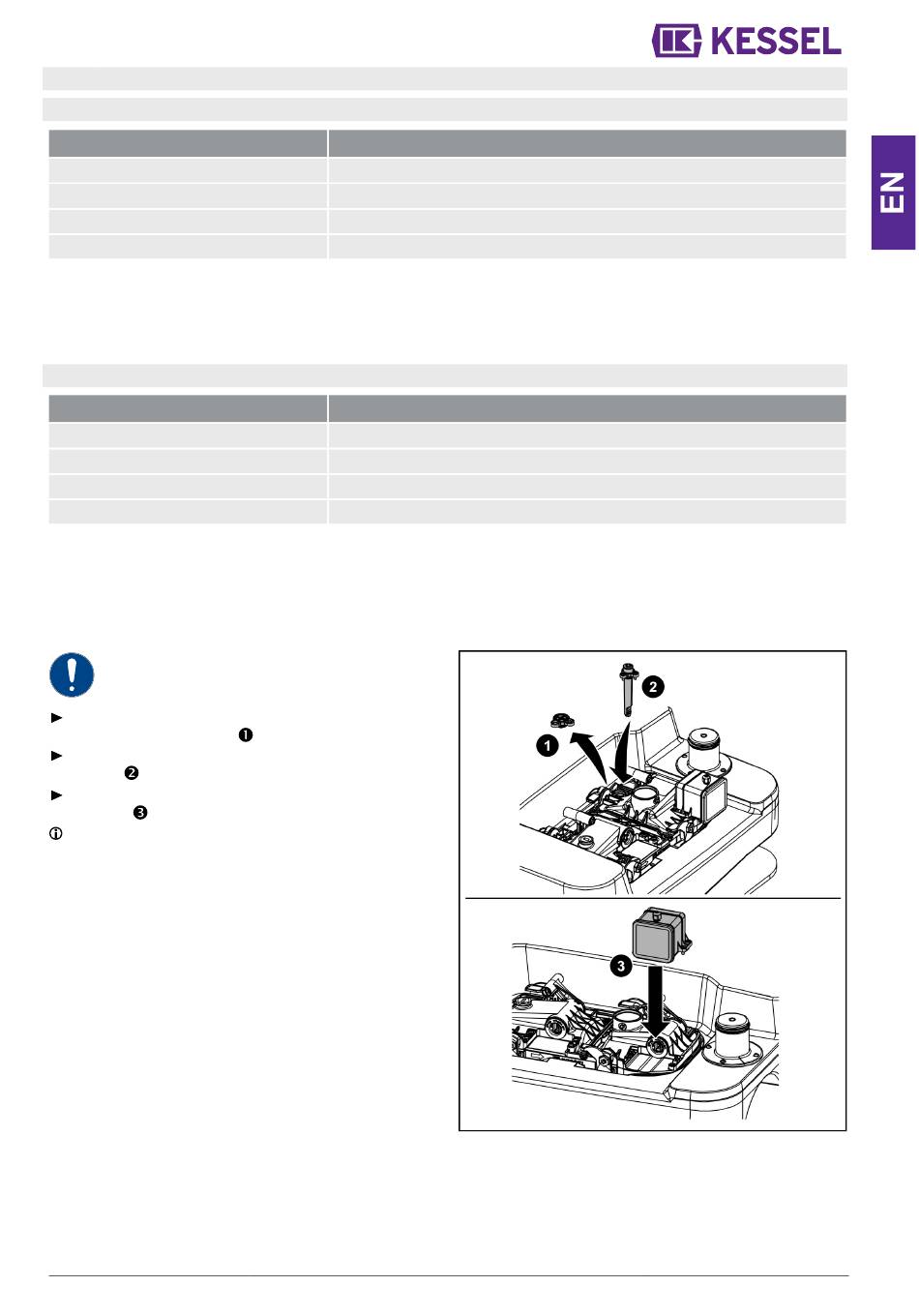

Ecolift L SWA and Ecolift L FKA
4.5.1
Ecolift L SWA installation
Art. no.
22000
22001
22004
22005
The Ecolift L SWA has 2 hinged flaps for faecal-free wastewater. In the event of backwater, the outer flap (operating valve)
closes securely and opens automatically when the water flows away.
The second flap (emergency closure) provides additional safety and can be used to close and open the pipe by hand. The
Ecolift L SWA is suitable for showers, washbasins and washing machines, for example.
4.5.2
Ecolift L FKA installation
Art. no.
22002
22003
22006
22007
The Ecolift L FKA is suitable for faecal wastewater. During normal operations, both flaps are open and enable complete dis-
charge of the wastewater. In the event of backwater from the sewer, the flap is locked automatically by a motor-driven clo-
sure system with optical probe and is reopened automatically after the backwater has gone.
When the emergency closure is actuated, no more water can flow into the sewer.
Fitting the electric components
NOTICE
Keep the flap closed.
Remove both screws from the blind plug for the optical
probe and the blind plug .
Insert the optical probe and fasten it with both
screws.
Fit the flap motor and fasten it using the screws
included.
The connection of the electric cables is explained in
the enclosed control unit instructions.
016-319
Description
Ecolift L Mono SWA with an on-site pressure pipe
Ecolift L Duo SWA with an on-site pressure pipe
Ecolift L Mono SWA with an integrated pressure pipe
Ecolift L Duo SWA with an integrated pressure pipe
Ecolift L Mono FKA with an on-site pressure pipe
Ecolift L Duo FKA with an on-site pressure pipe
Ecolift L Mono FKA with an integrated pressure pipe
Ecolift L Duo FKA with an integrated pressure pipe
Installation and operating instructions
Description
37 / 152
