42 MW306 Portable Meter
10.2.3.
Exporting Data
PC Export
1. With the meter on, use the supplied micro USB cable to
connect to a PC.
2. Press SETUP then CAL/EDIT.

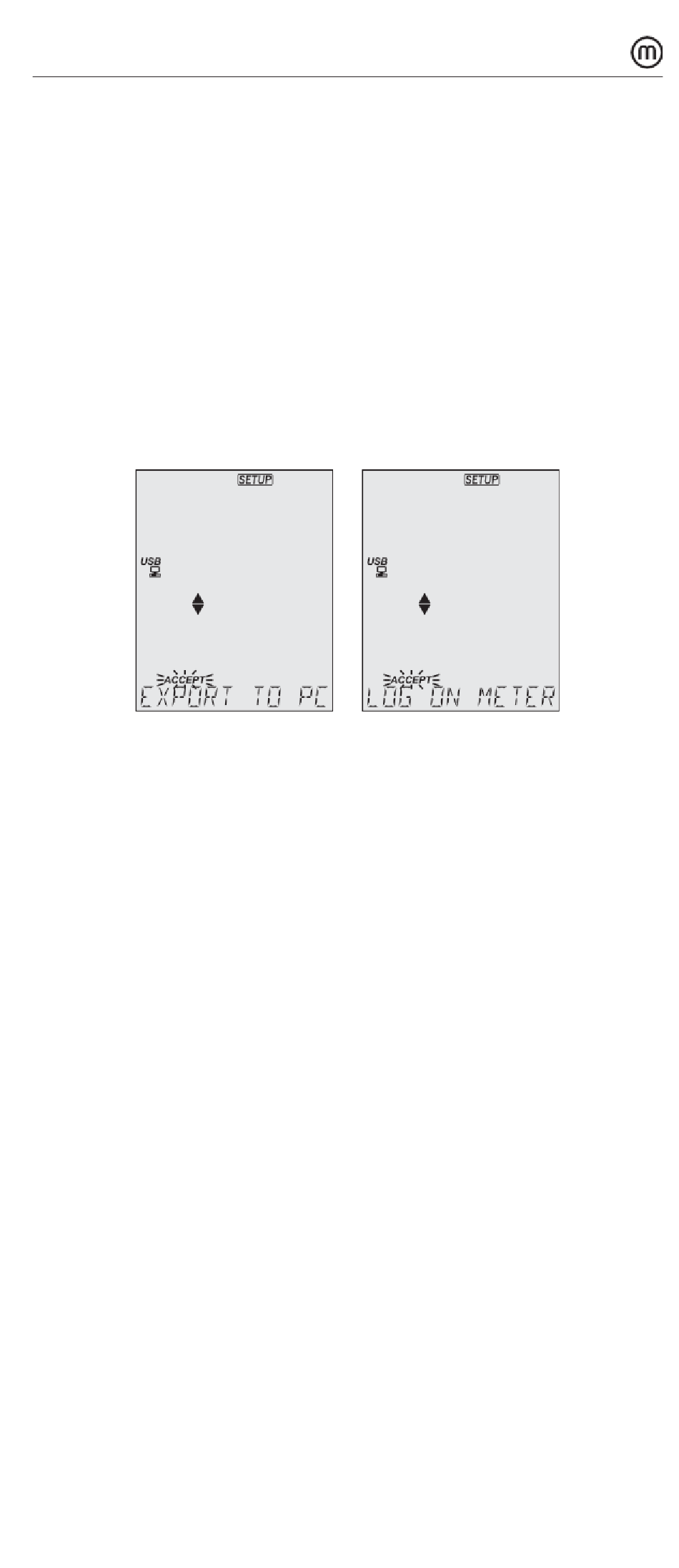

3. Use the keys and select "EXPORT TO PC".
The meter is detected as a removable drive. LCD displays the
PC icon.
4. Use a file manager to view or copy files on the meter.
When connected to a PC, to enable logging:
Press LOG/CLEAR. LCD displays "LOG ON METER" with ACCEPT
tag blinking.
Press GLP/ACCEPT. Meter disconnects from the PC and the PC
icon is no longer displayed.
To return to "EXPORT TO PC" mode, follow steps 2 and 3 above.
Exported data file details:
The CSV file (comma separated values) may be opened with a
text editor or spreadsheet application.
The CSV file encoding is Western Europe (ISO-8859-1).
Field separator may be set as comma or semicolon. See
Separator Type in SETUP OPTIONS section.
Interval log files are named ECLOT###, where ### is the lot
number (e.g. ECLOT051).
Manual log file is named ECLOTMAN and stability log file is
named ECLOTSTAB.
USB Export All
1. With the meter on, insert a USB drive into the micro USB port
located on top of the meter. If the flash drive does not have a
micro USB connector, use an adapter.
