WARNING: Ensuring Adequate Ventilation

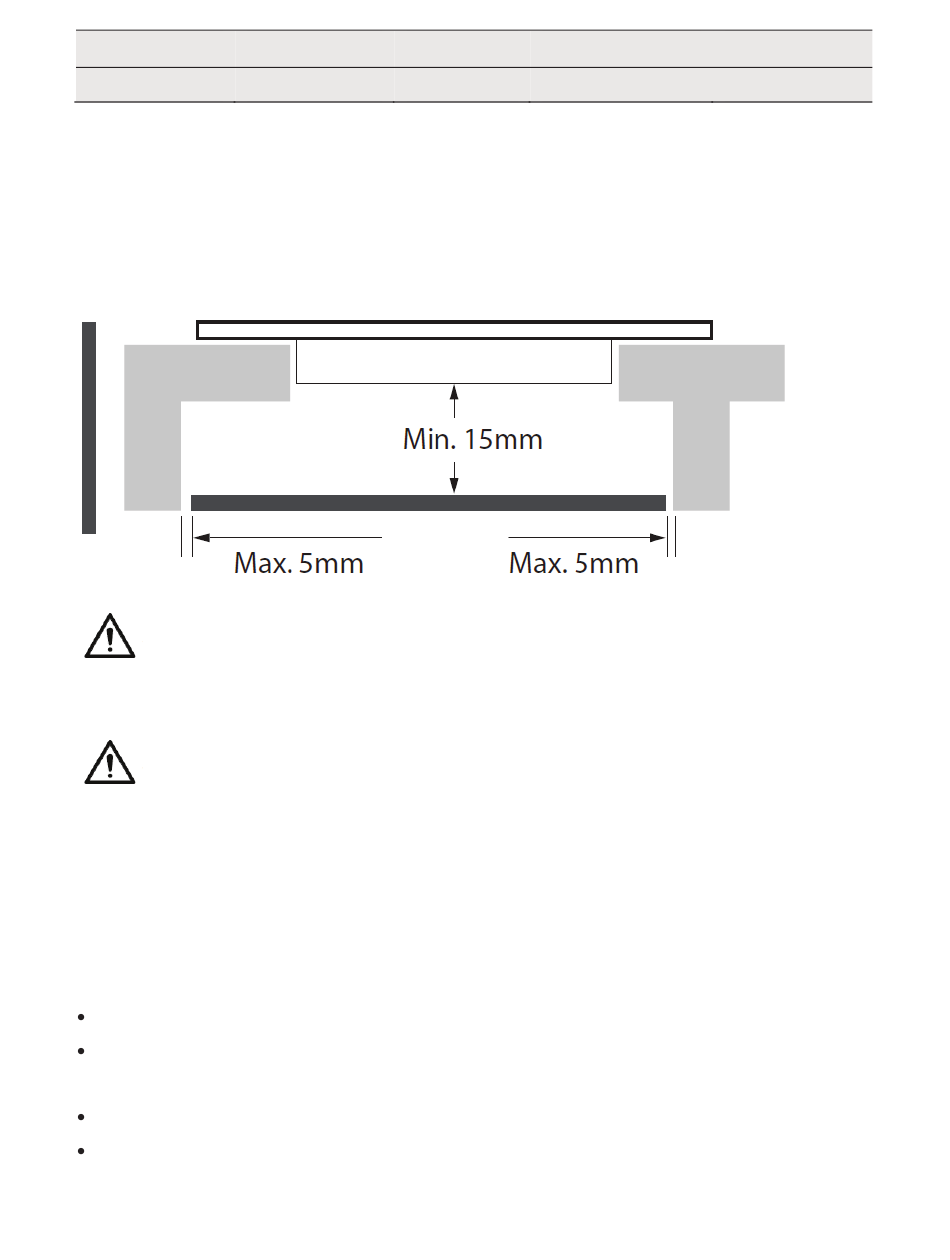

Make sure the hob is well ventilated and the air inlet and outlet are not blocked. To

prevent items accidently touching the base of the hob, it is necessary to put a wooden

insert, fixed by screws, at a minimum distance of 15mm from the bottom of the hob.

Follow the requirements below.

There are ventilation holes around outside of the hob. YOU MUST ensure these

holes are not blocked by the worktop when you put the hob into position.

Make sure that the glue that joins the plastic or wooden material to the cabinet

is able to resist temperatures up to 150°C. The rear wall, adjacent and surrounding

surfaces must be able to withstand a temperature of 90°C.

Sticking the sealing strip

Before installing onto the workbench, it is necessary to stick the sealing strip onto the

back of the glass plate:

Flip the entire machine over to the back of the glass plate.

Take out the sponge strip from the self-sealing bag and tear off the double-sided

adhesive on the back of the sponge strip.

Stick the sponge strip onto the back of the glass plate.

The sponge strip should not exceed the edge of the glass plate.

C (mm)

Min. 20

Air intake 30mm Air exit 2mm
