INSTALLATION CONTINUED

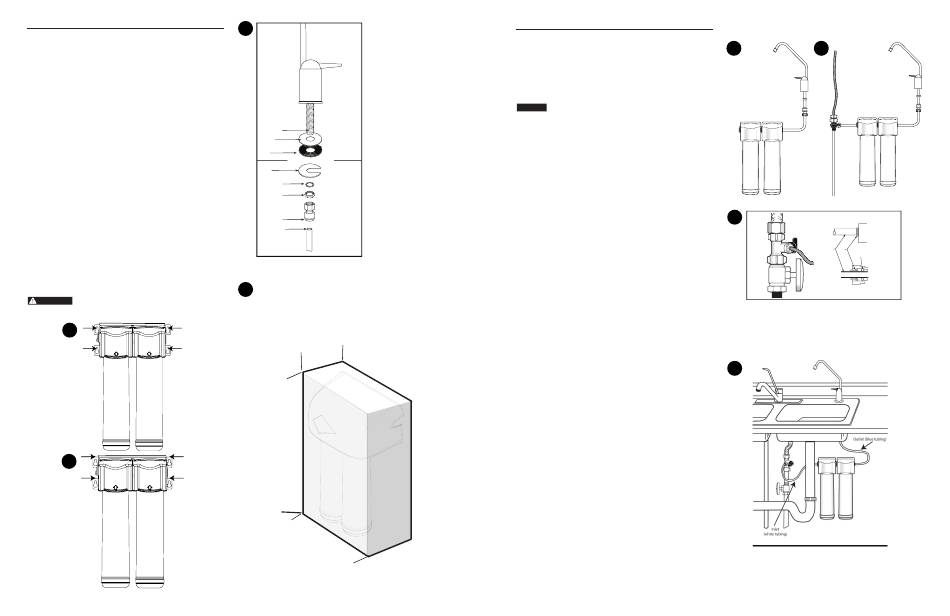

3. Mounting the faucet
A. Apply 3-5 wraps of plumber tape to faucet stem.
B. Assemble faucet as shown in figure 3.
C. Screw quick connector onto threaded end of faucet stem.
D. Place a mark 5/8" from one end of the blue tubing. Wet the
end of the 3/8" tube and push into bottom of connector. The
5/8" mark should be flush with the collar of the connector.
NOTE: To remove the tube, push on the fittings' collar and pull
the tube out.
E. Holding the faucet, feed the tubing through the hole in the
sink. Position the faucet handle at a desired location.
F. Center the faucet and slip slotted disc between the bottom
of the counter or sink and lock washer. Tighten the stem
nut with a wrench until it is tight.
G. Firmly insert spout into faucet base.
4. Mounting the system
A. Select a location under the sink, or other suitable area
where the system will be installed.
NOTE: The system carton can be used to determine the
operational footprint required for installation of the
system and replacement cartridges. (figure 4a)
B. Mount the system vertically. Ensure mounting is level.
Place a pencil mark in the upper slots of the bracket
mounting holes. (figure 4b). Alternate mounting option: If
mounting the system near the floor, place the pencil marks
above each of the mounting holes on the bracket to ensure
enough space resides below the cartridge and the floor for
cartridge replacement (figure 4c). Use the 3/32" drill bit to
create pilot holes for mounting.
The system should be mounted to a firm, solid
WARNING:
surface that is able to support the weight of the
system.
4b
Filter
4c
Filter
4 • F2000-B2B, F2000-B2M Filtration systems instruction manual
All manuals and user guides at all-guides.com
3
Faucet Stem
Chrome
Plate
Rubber
Washer
Counter Top
Slotted
Disk
Lock Washer
Stem Nut
Quick
Connector
3/8" Tubing
4a
178 mm (7")
Inlet
Outlet
413mm (16.25" )
273 mm (10.75")
INSTALLATION CONTINUED
5. Connecting the faucet to the system
A. Determine the length of plastic blue tubing needed to
connect to the outlet (right) side of the filter from the
faucet. Be sure to allow enough tubing to prevent kinking
and cut the tubing squarely. Use a marker to mark one end
of the tubing 5/8" from the end (figure 5). Wet the end of the
3/8" tube and push into the outlet (right) connection of the
system up to the mark.
Do not bend or crimp tube inserting.
CAUTION
B. Gently pull back on the tube to ensure it is connected
properly.
6. Connecting the supply adapter
A. Determine the length of plastic white tubing needed
to connect the inlet (left) side of the filter with the feed
adapter installed on the cold water supply line. Be sure to
allow enough tubing to prevent kinking and cut the tubing
squarely. Place a mark 5/8" from one end of the tubing. Wet
the end of the tubing. Insert the end of the tubing into the
3/8" fitting of the inlet supply adapter. The 5/8" mark should
be flush with the collar of the fitting located on the inlet
supply adapter (figure 6a).
B. Mark the remaining end of the tubing. Use a marker to
mark 5/8" from the end. Wet the end of the tube. Insert the
end into the feed connection on the inlet side (left) of the
system. The tube should go in up to the mark. (figure 6b).
7. Placing the system into operation
A. Slowly turn on the cold water supply. Ensure that the feed
adapter valve is also open.
B. Open faucet and flush filter for 10 minutes. Discard water.
C. Check for leaks at all fittings before leaving installation. If
leaks appear, see troubleshooting.
NOTE: A drinking water cartridge may contain carbon fines
(very fine black powder). If carbon fines appear in
the water, discard water. More flushing is required if
carbon fines are present.
NOTE: Initially, filtered water may appear cloudy. If
cloudiness in a glass of water disappears from the
bottom; fine air bubbles are present. This air within
the water will disappear within a few weeks after
installation.
INSTALLATION IS NOW COMPLETE.
5
6a
6b
7
F2000-B2B, F2000-B2M Filtration systems instruction manual • 5
