FILTER CARTRIDGES REPLACEMENT
NOTE: The life of the filter cartridges depends on water
volume used and the quality of the feed water. It is
recommended that the filter cartridges be replaced
every 6-12 months, or when there is a noticeable
change in taste, odor, or flow of filtered water.
Ensure the correct cartridge set is purchased for
the system.
Model F2000-B2B and F2000-B2M use F2B2-RC2 replacement
cartridge set
8. Cartridge replacement
A. Relieve pressure by turning off the water supply to the
system and opening a faucet until water flow stops. Place a
bucket or towel under the system to catch any water drips
(figure 8a).
B. Remove the cover and lift the locking bar upward until the
filter cartridge disengages from the filter head assembly
(figure 8b).
C. Pull the cartridge away from the filter head assembly
(figure 8c).
D. Ensure the locking bar is fully in the up position (figure 8c).
E. Align the posts on the filter cartridge with the ports in the
filter head assembly. Slide the cartridge filter towards into
the filter head assembly engaging with the locking bar
causing it to drop forward and down. (figure 8d).
F. Pull down the locking bar until it snaps into place
(figure 8e)
G. Install cover.
NOTE: See placing the system into operation section for
remaining steps.
TROUBLESHOOTING
Leaks between filter head assembly and filter
cartridge
1. Relieve pressure by turning off the water supply to the
system and opening faucet until water flow stops. Place a
bucket or towel under the system to catch any water drips.
2. Remove cartridge and inspect O-rings to make sure they
are seated and clean.
3. Install filter cartridge. Place system into operation and
check for leaks. If leaks persist, turn off the water supply
and contact your distributor.
Leaks from tubing fittings
1. Relieve pressure by turning off the water supply to the
system and opening faucet until water flow stops. Place a
bucket or towel under the system to catch any water drips.
2. Depress collet on system or inlet supply adapter tubing
fittings and pull tubing from fitting. Inspect surface of
tubing for scratches or debris. Clean or cut back tubing to
access clean surface.
3. Wet the end of the inlet tubing and press into the inlet
fitting of the system. Ensure the tubing is fully pushed past
the fitting O-rings. Place system into operation and check
for leaks. If leaks persist, turn off the water supply and
contact your distributor.
6 • F2000-B2B, F2000-B2M Filtration systems instruction manual
All manuals and user guides at all-guides.com

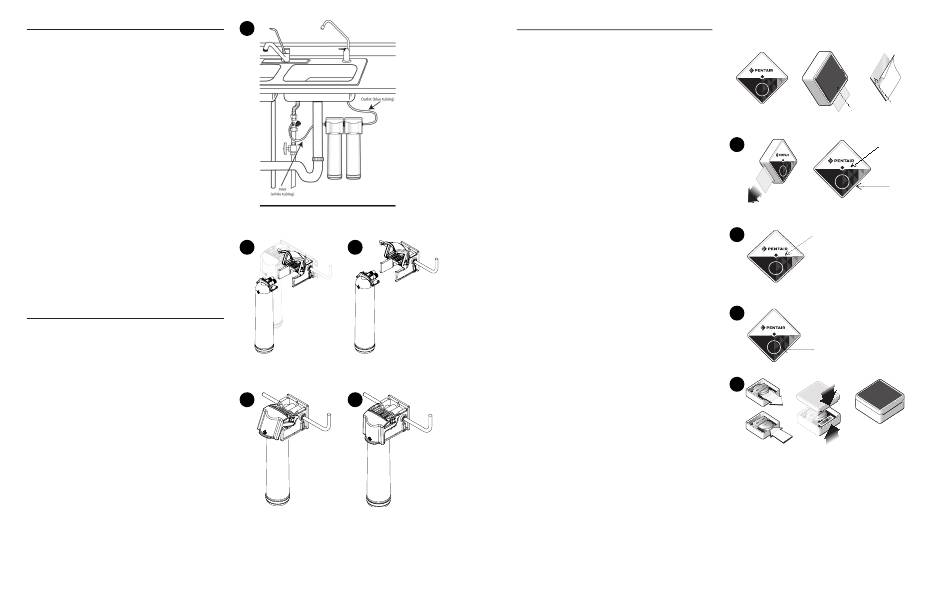

8a
8b
8c
8d
8e
CARTRIDGE TIMER PROCEDURE
FILTER CARTRIDGE TIMER
(MONITORED SYSTEMS ONLY)
The filter cartridge timer can be installed to the systems
decorative cover by peeling away the adhesive backing on the
metal plate included with the cartridge timer. The timer can
also be attached to a metal magnetic surface using the magnet
that is factory installed on cartridge timer.
INSTALLATION AND ACTIVATION
Once the installation location has been selected, activate the
timer by pulling the plastic tab out from the side of the timer.
Press and release the key to verify the battery is operational.
The light will blink green three times. (figure 9a)
NOTE: The timer operates on 12 month schedule. The timer
uses a coin cell type 2023 battery.
The filter cartridge timer is operational
Operation
1. The timer will begin to blink red once every three minutes
after 11 months, and will blink red three times every three
minutes after 12 months. (figure 9b)
Timer status of the cartridge life can also be
NOTE:
viewed immediately by pressing and releasing the
key.
Reset timer
1. To reset the timer after filter cartridge replacement, press
the key and hold for 5 seconds. The timer is now reset to 12
months. (figure 9c)
Battery replacement
1. Replace the battery every 12 months. To replace the battery,
locate the slot on the side of the timer body and carefully
remove the front of the timer. The battery is now accessible.
(figure 9d)
2. Slide the new battery under the battery retention bracket
with the positive + side of the battery facing up towards the
battery retention bracket. Align the tab on the timer back
to the slot on the timer front and press and snap both timer
halves together. Battery replacement will not reset the 12
month timer. If reset is required, press and hold key for 5
seconds.
Metal
Plate
Magnet
9a
Blinks
Green 3x
Key
9b
Blinks red 1x after 11 months
Blinks red 3x after 12 months
9c
Press and hold for 5 seconds
9d
F2000-B2B, F2000-B2M Filtration systems instruction manual • 7
