4 Safety Precautions
5 Level indicator
The level indicator indicates the filling level of
the grass catcher box.
6 Grass catcher box
The grass catcher box collects the grass cut‐
tings.
7 Discharge flap
The discharge flap closes the discharge
chute.
8 Lever
The lever is used to adjust and fold down the
handlebar.
9 Handle
The handle is used to hold the lawn mower
when adjusting the cutting height and to
transport the lawn mower.
10 Lever
The lever is used to set the cutting height.
11 Fuel tank cap
The fuel tank cap closes the opening for filling
gasoline.
12 Filter cover
The filter cover covers the air filter.
13 Carrying handle
The carrying handle is used to hold, control
and carry the lawn mower.
14 Safety latch
The safety latch keeps the side discharge flap
closed.
15 Side discharge flap
The side discharge flap closes the side dis‐
charge opening.
16 Side discharge opening
The side discharge opening discharges the
cut grass to the side.
17 Extension
The extension discharges the cut grass to the
side onto the ground.
18 Mulching insert
The mulching insert closes the discharge
chute.
19 Cutting blade
The blade mows and mulches the grass.
20 Spark plug boot
Connects the ignition lead to the spark plug.
21 Spark plug
Ignites the fuel-air mixture in the engine.
2
The grass catcher box is available as an option.
0478-111-9615-B
2
22 Muffler
The muffler reduces the sound emission of
the lawn mower.
23 Motor oil cap
The motor oil cap closes the opening for
pouring in motor oil.
# Rating plate with machine number
3.2

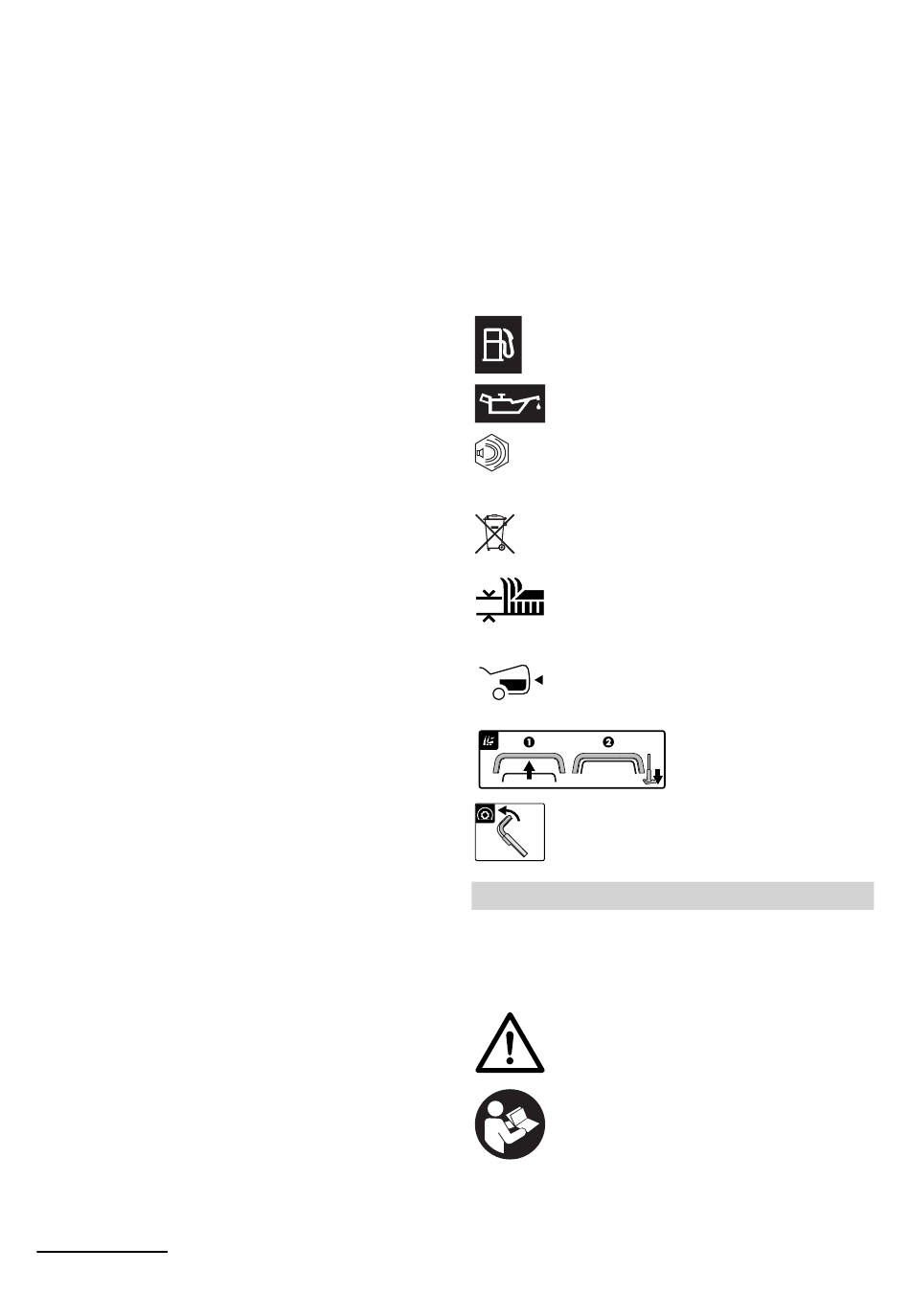

Symbols
The symbols can be on the lawn mower and
have the following meaning:
This symbol identifies the fuel tank
cap.
This symbol identifies the engine oil
cap.
Guaranteed sound power level in
L
accordance with Directive 2000/14/EC
WA
in dB(A) for the purpose of comparing
the sound emissions of products.
Do not dispose of the product with
domestic waste.
Set the cutting height.
Grass catcher box level indicator.
Engage self-propulsion.
4
Safety Precautions
4.1
Warning Symbols
The warning symbols on the lawn mower have
the following meaning:
Follow the safety instructions and their
measures.
Read, understand and keep the
instruction manual.
English
Start the engine.
23
