Lucht/water warmtepompboiler voor huishoudelijk warm water

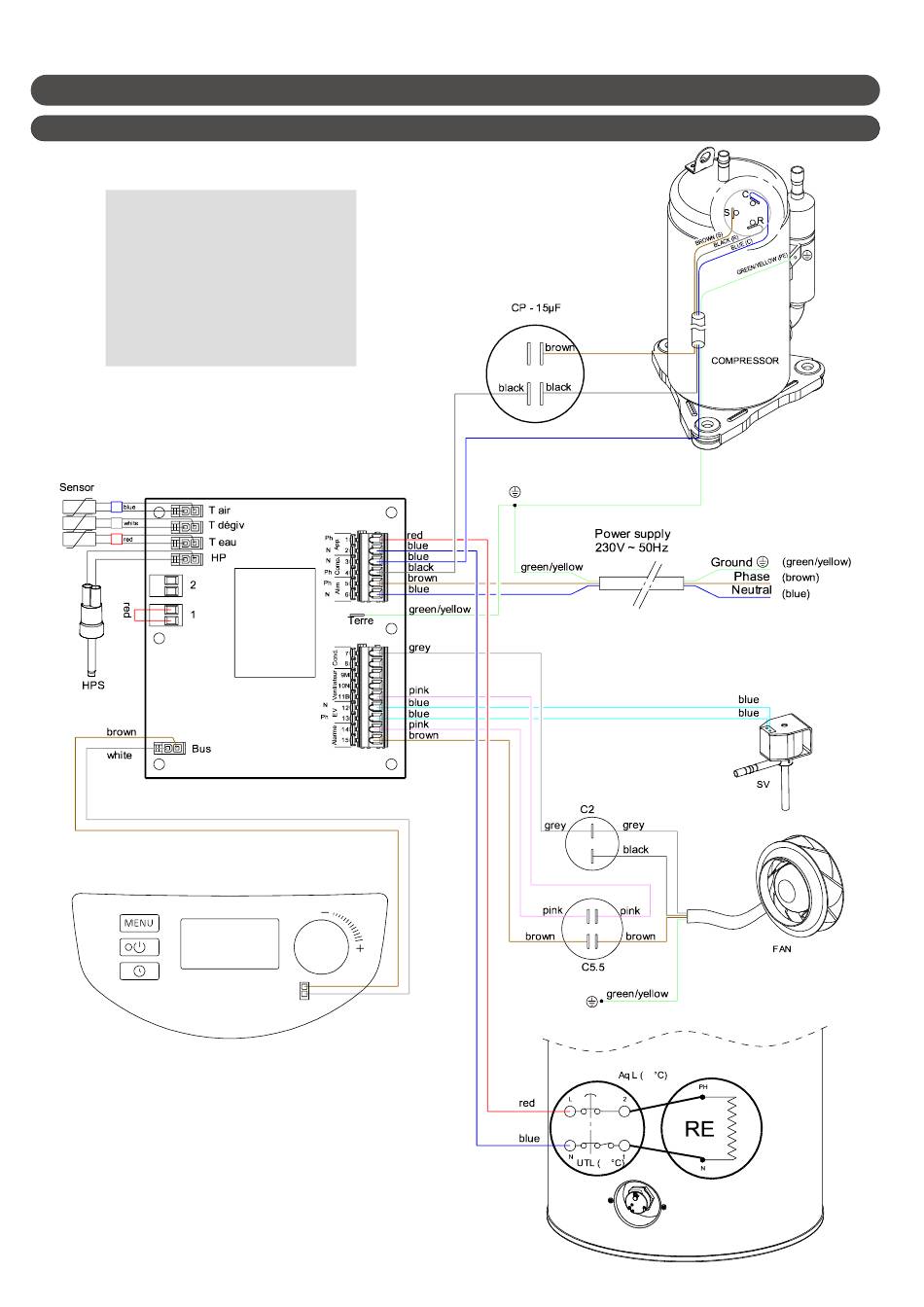

9.2 - Electrisch schema
9.2.1 - Edel AIR 200/270 DE/2
HP - High pressure - pressure switch
CP - 15µF Compressor start-up capacitor
C2 - 2µF fan capacitor
C5.5 - 5.5µF fan capacitor
SV - Defrosting valve
RE - 1200W electrical resistance
UTL - Electrical back-up temperature limiting
safety thermostat
AqL - Electrical back-up safety aquastat
HPS - High pressure - pressure switch
