3. PRODUCT OVERVIEW

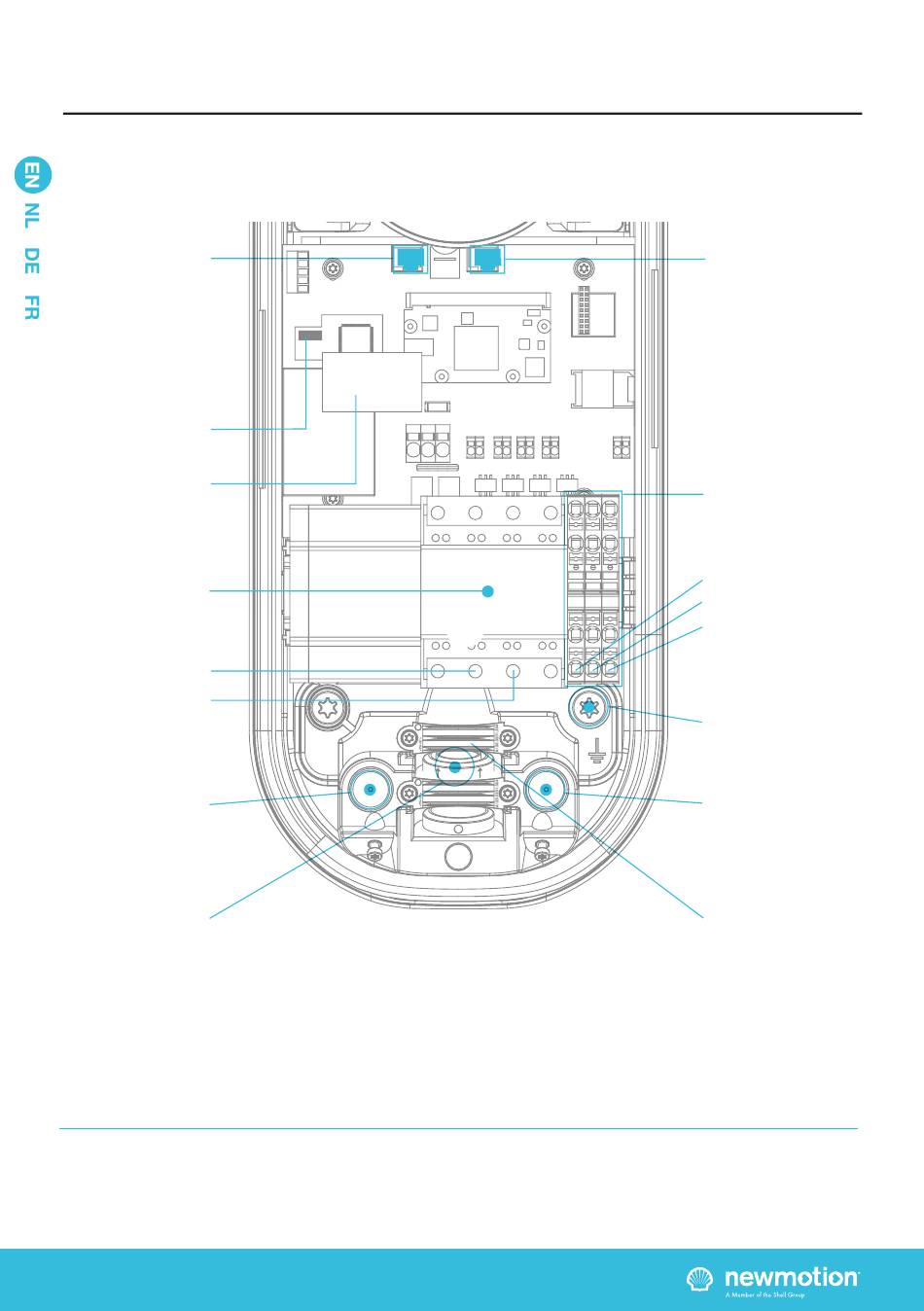

3.4.1 OVERVIEW OF CONNECTIONS
Business Pro:
UTP data port for
Ethernet / Mobile
router connection
Business Lite:
UTP data port for
connection switch
(star configuration) or
daisy chain incoming
Connection
DC-protection module
DC-protection module
kWh meter
Phase 2
Phase 3
UTP data cable inlet
with rubber seal
Inlet for
power cable
If connecting to a 230V 3-phase grid without neutral, only install 1-phase and connect one of the two other phase
wires in the neutral wire connection on the terminal block
INSTALLATIEHANDLEIDING – P10
MANUEL D'INSTALLATION – P10 | P10
All manuals and user guides at all-guides.com
VERSION 0129NM02INT01
INSIDE
091NM20INT04
Business Pro:
UTP data port for
connection Switch
in star configuration
or Business Lites
in daisy chain
configuration
Business Lite:
UTP data port
for daisy chain
outgoing
Terminal block
Phase 1
Neutral
Earthing
Earthing pole
UTP data cable inlet
with rubber seal
Power cable clamps
