3. PRODUCT OVERVIEW

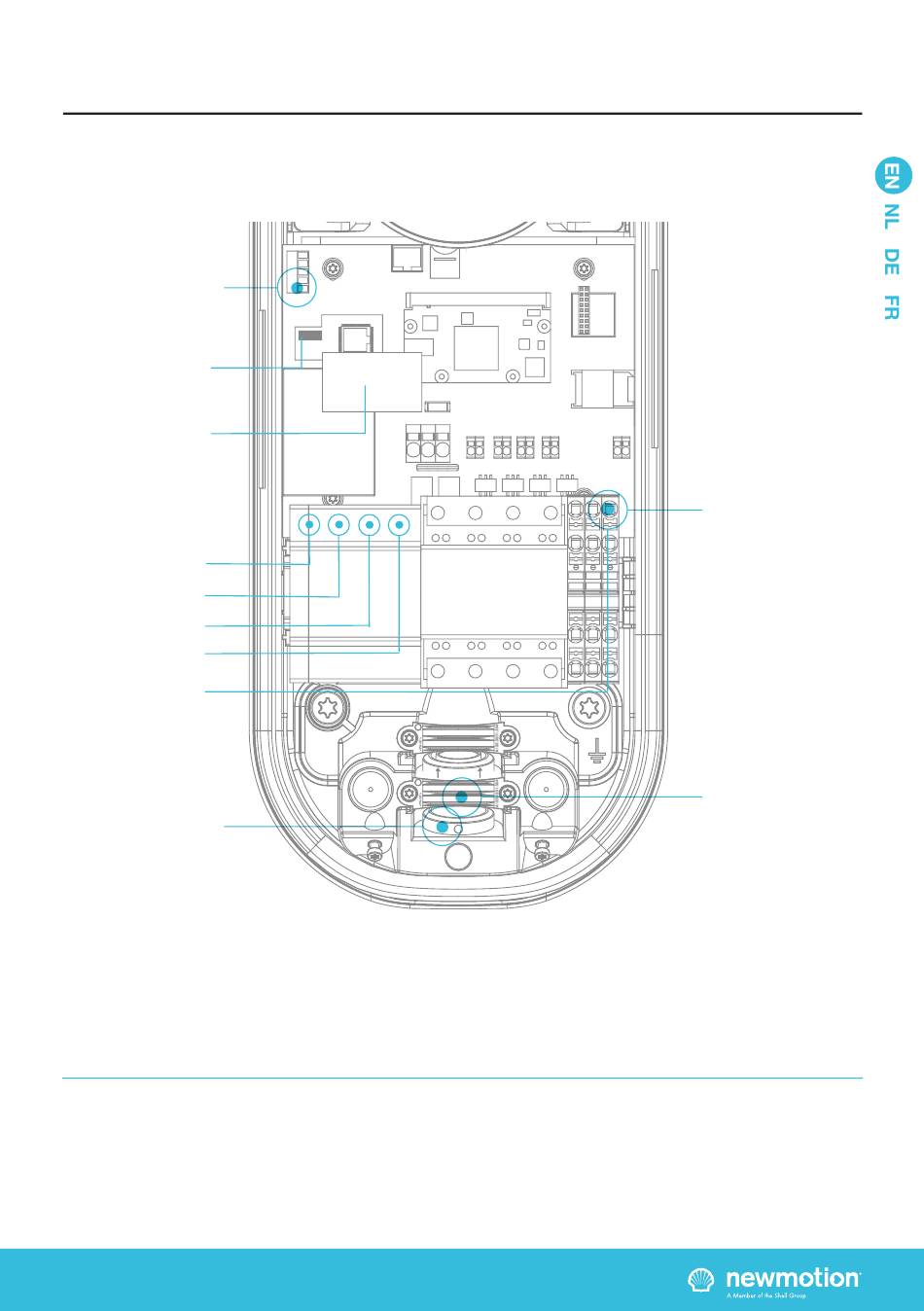

3.4.2 OVERVIEW TETHERED CABLE CONNECTIONS
Connector for
communication
with the car to red wire
Connection
DC-fault protection
module
DC-fault protection
module for
L1, L2, L3 & N
DC-protection
module
Keep the same wiring
order as the connection
under relay
L1 = portal 1
L2 = portal 3
L3 = portal 5
Neutral = portal 7
Earthing tethered cable
Tethered
cable inlet
Placement tethered cable
When installation is complete, place the plug of the cable in the designated dummy socket on the charge point
Caution: The phase 1 (brown), phase 2 (black), phase 3 (grey) and neutral (blue) of the fixed cable must go through the
DC-protection module. Failing to do so will result in no protection against DC-fault current
INSTALLATIEHANDLEIDING – P11
MANUEL D'INSTALLATION – P11 | P11
All manuals and user guides at all-guides.com
VERSION 0129NM02INT01
INSIDE
091NM20INT04
Earthing
tethered cable
Cable clamp
