sEctIoN 3
WarNINg
WarNINg
3.1
fIttINg thE pt-32Eh torch
1.
For operator safety, the torch connections are located on the output terminal board behind the lower portion of the front
panel.
2.
Thread the power cable, pilot arc cable and switch leads of the PT-32EH through the Strain Relief on the Access Cover.
3.
Connect power cable to the torch fitting (left-hand threads) and tighten securely.
4.
Connect the Pilot Arc Leads. Make sure the power cable connection is wrench-tight.
5.
Plug in the switch leads to the torch switch receptacle on the output terminal board.
6.
Reassemble the access door to the power source. Retighten Strain Relief to secure power cable, but do not overtighten.
All manuals and user guides at all-guides.com
Before any maintenance is attempted on this torch, make sure the power switch on
the console is in the "off" position and the primary input is deenergized.
For coMplEtE safEtY aND INstallatIoN procEDurEEs, coNsult thE INstruc-
tIoN lItEraturE spEcIfIc to thE coNsolE BEINg usED.
pIlot arc
coNNEctIoN
poWEr
caBlE
coNNEctIoN

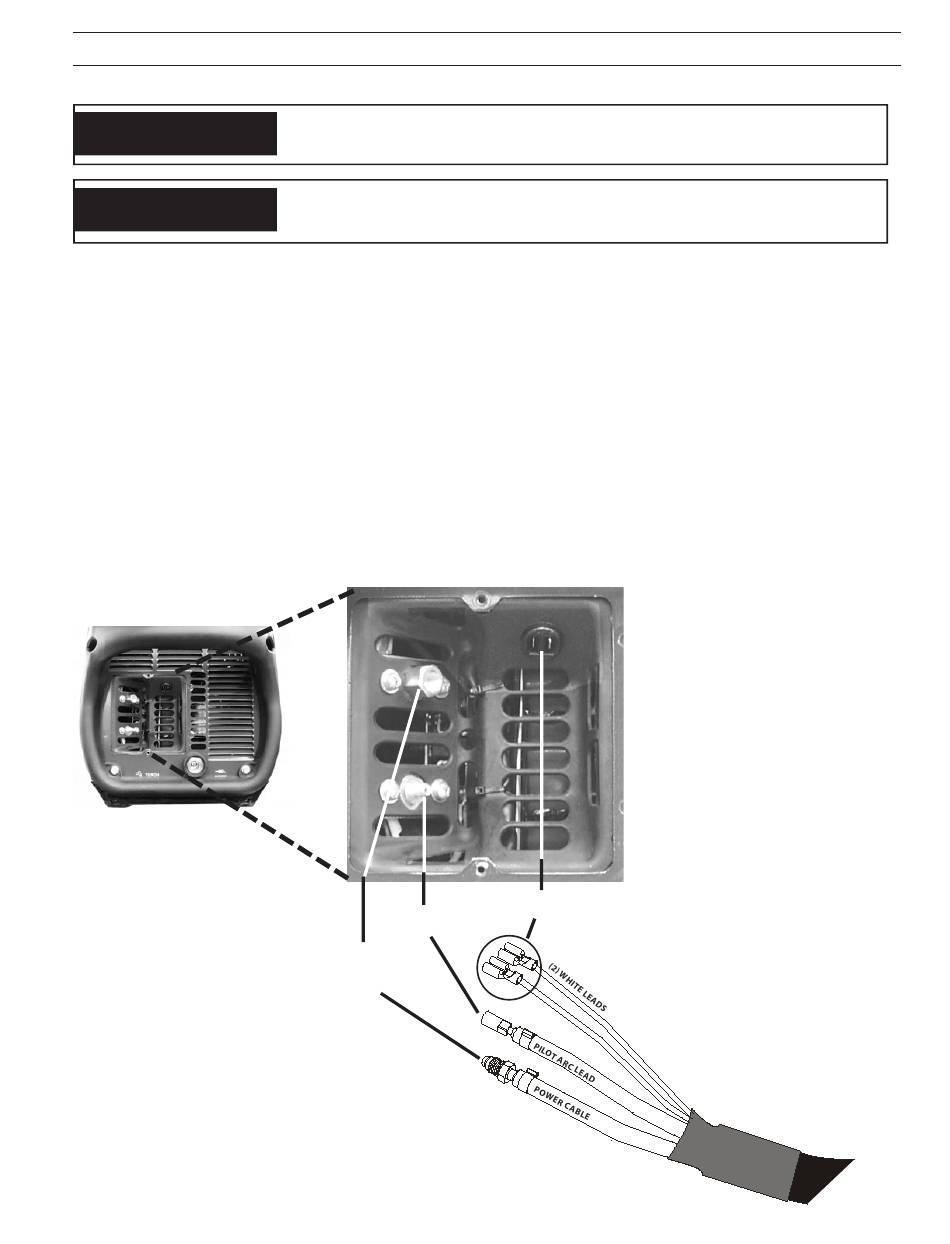

figure 3-1. typical connection assembly
NotE:
This Illustration depicts connections for
Powercut 1250 and 1500. Other Powercut
models; i.e., 875 and 1125 have identical fittings
but the connection points are configured in
different locations on the front panel. Consult
the specific console literature for complete
information.
torch trIggEr
lEaDs coNNEctIoN
73
INstallatIoN
