Pos. Beschrijving
1
Digitale ingang/uitgang 1, configureerbaar
2
GND
3
Digitale ingang/uitgang 2, configureerbaar
4
GND
5
Digitale ingang 1
6
GND
7
Digitale ingang 2
8
GND
9
Configureerbare ingang/uitgang 1
10
GND
11
Configureerbare ingang/uitgang 2
12
GND
13
Voedingsspanning, 24 V, max. 200 mA
14
GND
15
Voedingsspanning, 24 V, max. 200 mA
16
GND
Gerelateerde informatie
6.6 De IO-klemmen configureren via Grundfos GO
Remote
2.6 Identificatie

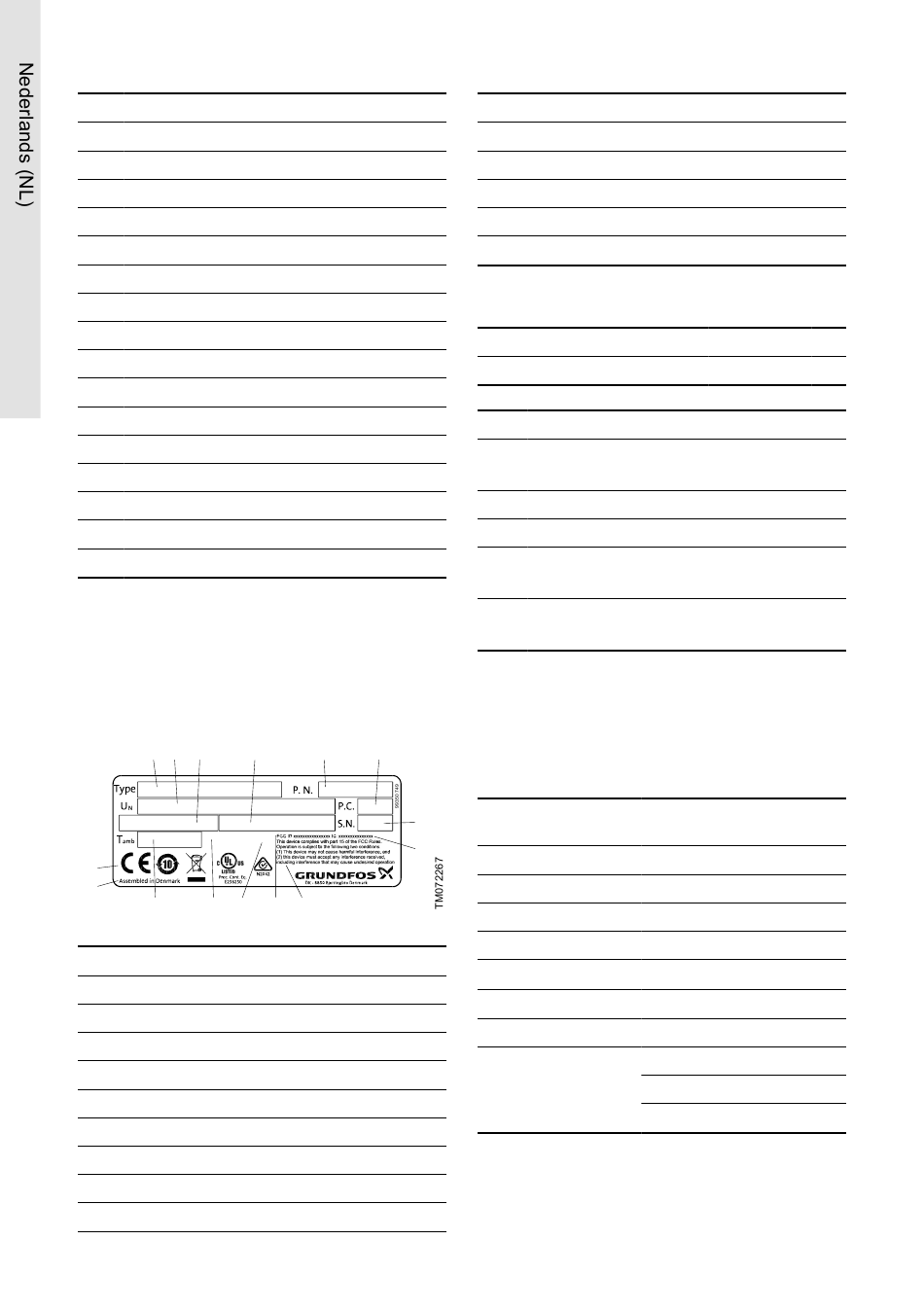

2.6.1 Typeplaatje
1
2
3
°C
15
14
13
12
11
Pos. Beschrijving
1
Productnaam
2
Voedingsspanning
3
Maximale stroom, UL
4
Maximale stroom, IEC
5
Versienummer en materiaalnummer
6
Productiecode (jaar en week)
7
Serienummer
8
IC, uitsluitend voor UL-uitvoeringen
9
FCC-tekst, uitsluitend voor UL-uitvoeringen
8
4
5
6
7
P1
8
10
9
Pos. Beschrijving
10
FCC-id, uitsluitend voor UL-uitvoeringen
11
Fabriekscode
12
Minimale en maximale omgevingstemperatuur
13
Productielocatie
14
Keurmerken en goedkeuringen
2.6.2 Typecodering voor LC 231
Voorbeeld
LC 231
Pos.
1
Pos. Beschrijving
Type:
1
•
LC 231: versie voor wandmontage
2
Aantal ondersteunde pompen
3
Stroombereik van pomp [A].
Inschakelmethode:
4
•
DOL: direct online
Paneeltype:
5
•
PI: Kunststof behuizing
2.7 Ondersteunde communicatie-
interfacemodules en protocollen
De volgende Grundfos communicatie-
interfacemodules kunnen worden toegevoegd aan het
product.
Communicatie-
Protocol
interfacemodule
CIM 050
GENIbus
CIM 150
PROFIBUS DP
CIM 200
Modbus RTU
CIM 260
3G/4G
1)
CIM 270
GRM
CIM 280
1)
Grundfos Utility Connect
CIM 300
BACnet
Modbus TCP
CIM 500
PROFINET IO
GRM IP
1)
Niet ondersteund.
Gerelateerde informatie
4.5 Een communicatie-interfacemodule installeren
2x
1-9
DOL
PI
2
3
4
5
