PREPARING THE LAND
Z
B
CN
Z
483cm
A
C
483cm

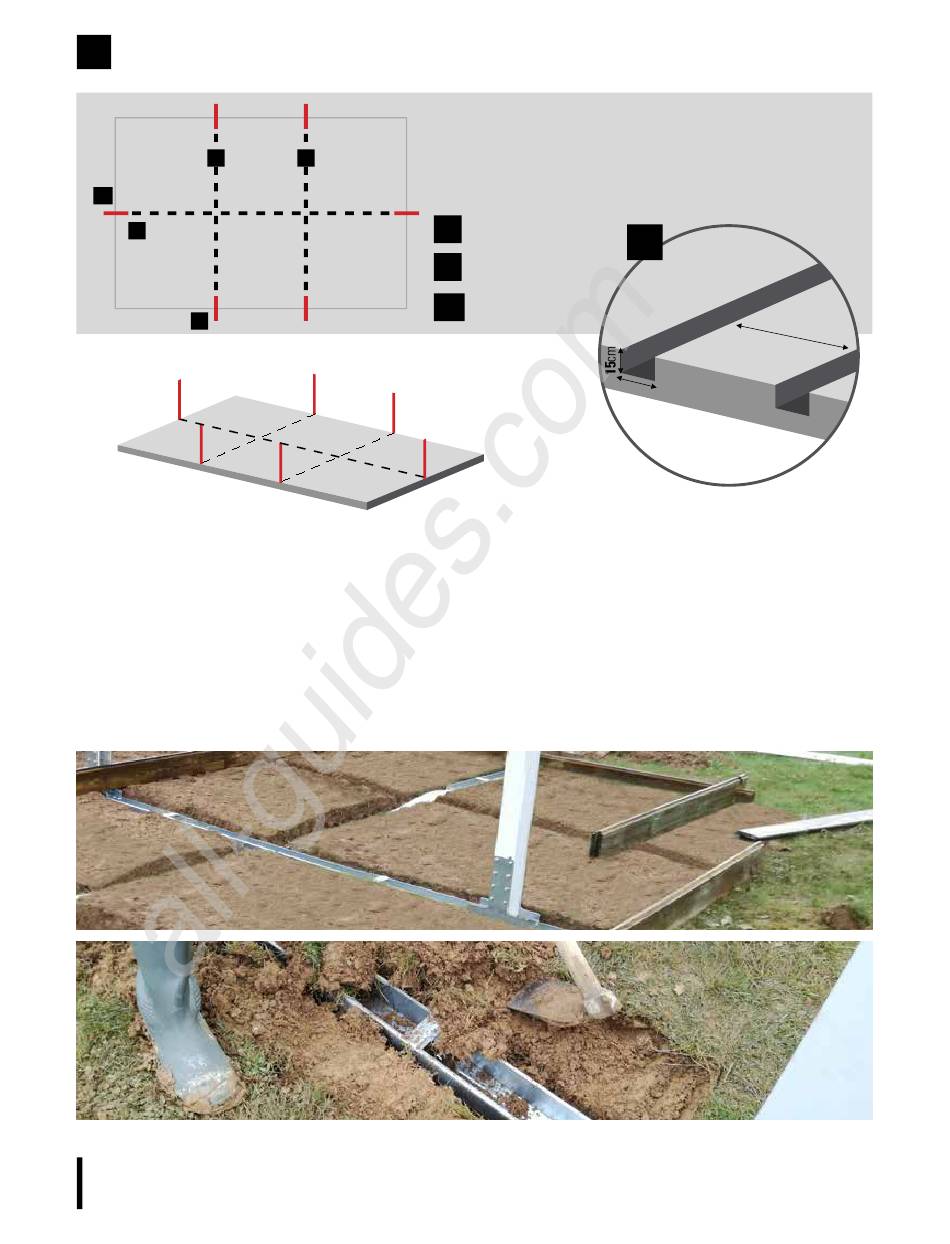

We recommend you assemble the pool between two or three persons and on a wind-free day. The use of gloves for the
installation is recommended for safety. THE ENTIRE PROCESS SHOULD BE CARRIED OUT ON FIRM AND LEVEL
GROUND, BEFORE EXCAVATING THE TRENCHES
EXCAVATION OF THE TRENCHES (Z) FOR THE COLUMNS (C) AND METALLIC STRAPS (CN).
Dimension of the foundations: ZB = 483 cm and ZA = 334 cm.
The distance between them is 125 cm.
IMPORTANT: When excavating the foundations, the rectangular space reserved for situating the AP that should be buried
5 cm and transversally fixed with their respective PG (page 48) should be excavated. All the structural system should be
perfectly levelled (columns and internal structure, beams).
46
All manuals and user guides at all-guides.com
Z
334cm
B
Z
Trenches
C
Columns
CN
C.Metalics
334cm
Z
125cm
20cm
