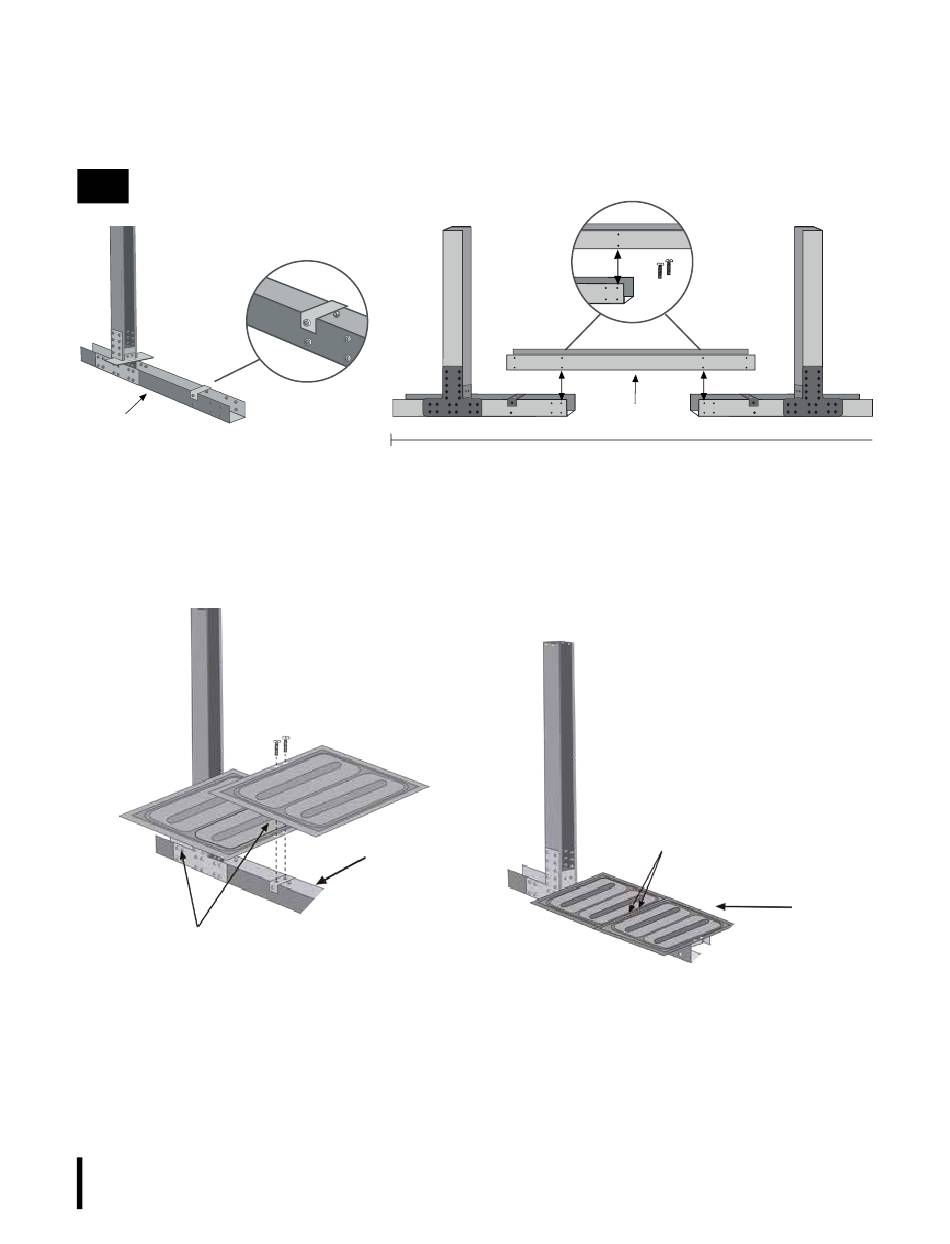

ASSEMBLY OF THE CROSSBASE
x2B
PG
• Take the crossbar Part type E and fix the PG crossbar and the TV bolts.
NOTE: there is only one crossbar between the PG crossbars (Part E).
AP
Place the flap AP so that it coincides with its two holes with those of the PEU part (the closest to the part PV1185).
Then, place the other AP flap and fix them with two bolts TM640 (place the AP flaps after having introduced the support
into the previously prepared ditch).
