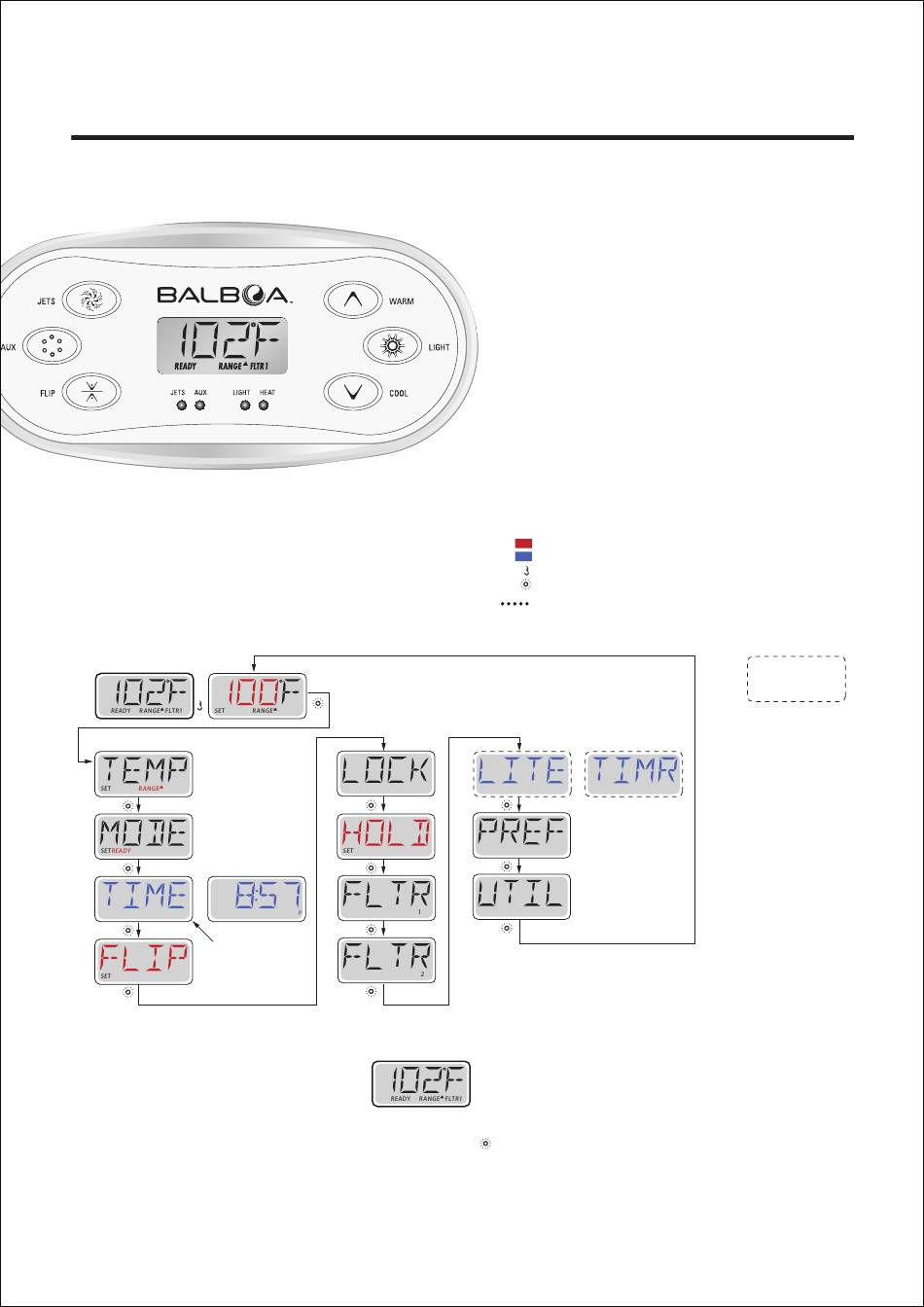

Main Menus
Navigation
Navigating the entire menu structure is done with 2 or 3 buttons on the control panel.
Power-up Screens
Each time the System powers up, a series of numbers
is displayed.
After the startup sequence of numbers, the system will
enter Priming Mode (See Page 3).
Main Screen
If Time of Day is not set
"SET TIME" will
appear in this menu.
Manufactured under one or more of these patents. U.S. Patents: 5332944, 5361215, 5550753, 5559720, 5,883,459, 6253227, 6282370,6590188, 6976052, 6965815,
7030343, 7,417,834 b2, Canadian Patent: 2342614, Australian patent: 2373248 other patents both foreign and domestic applied for and pending. All material copyright
of Balboa Water Group.
Some panels have separate WARM (Up) and COOL (Down) buttons, while
others have a single Temperature button. In the navigation diagrams
Temperature buttons are indicated by a single button icon.
Panels that have two Temperature buttons (Warm and Cool)
can use both of them to simplify navigation and
programming where a single Temperature icon is shown.
The LIGHT Button is also used to choose the various
menus and navigate each section.
Typical use of the Temperature button(s) allows
changing the Set Temperature while the numbers are
flashing in the LCD.
Pressing the LIGHT button while the numbers are flashing
will enter the menus.
The menus can be exited with certain button presses. Simply
waiting for a few seconds will return the panel operation to normal.
While the Temperature is
still flashing, press Light.
Main Screen
Waiting a few seconds in the Main Menu
will allow the display to revert to the Main Screen.
Most changes are not saved unless Light
Refer to key above.
Key
Indicates Flashing or Changing Segment
Indicates Alternating or Progressive Message - every 1/2 second
A temperature button, used for "Action"
Light or dedicated "Choose" button, depending on control panel configuration
Waiting time that keeps the last change to a menu item.
*****
Waiting time (depends on menu item) that reverts to original setting
and ignores any change to that menu item.
Light Cycle if enabled
is pressed.
Indicates a Menu Item that
Depends on a Manufacturer
Configuration and
may or may not appear.
