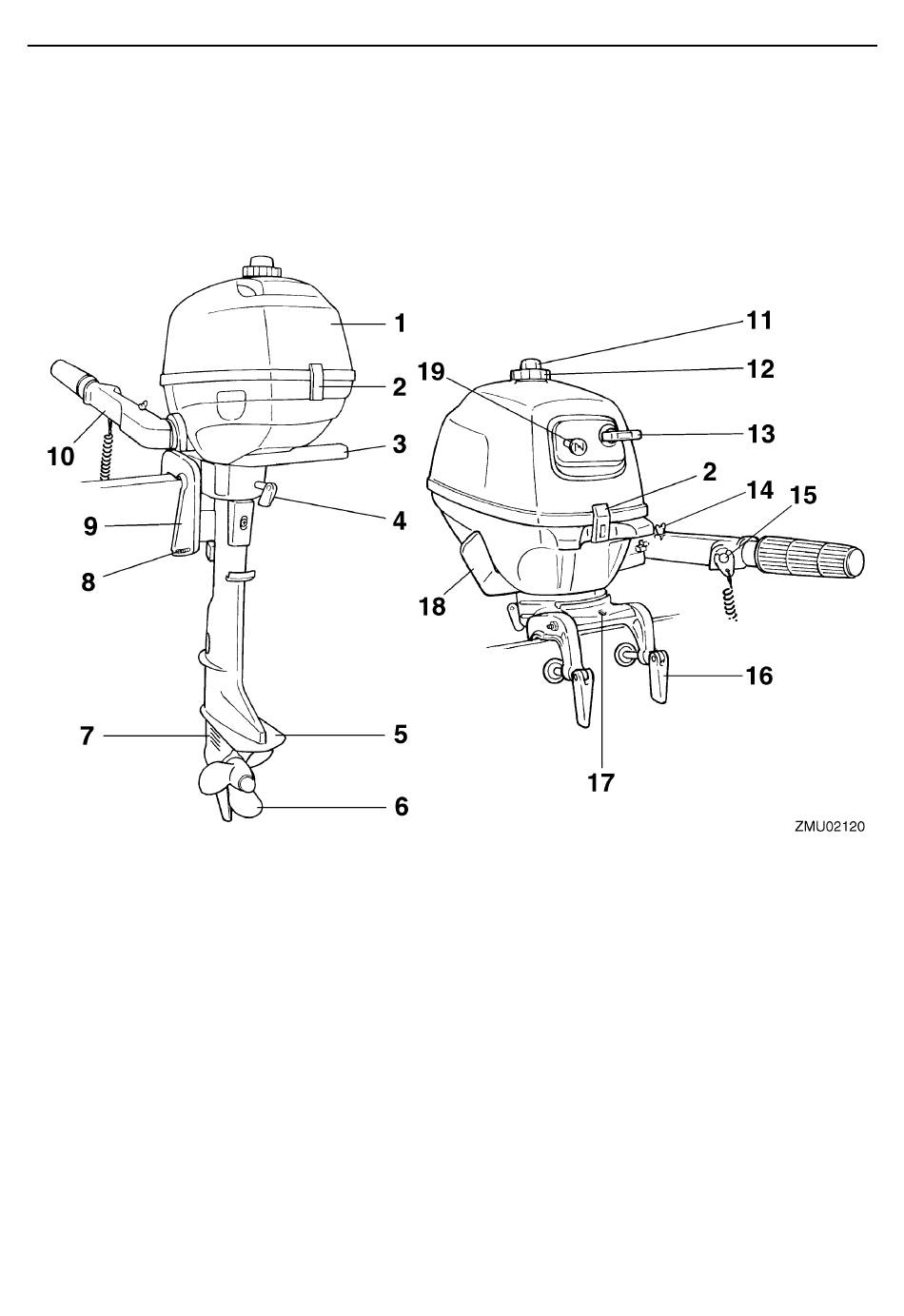

Schematische voorstelling van de componenten

NOTA:
* Kan eventueel lichtjes verschillen van de afbeelding; behoort mogelijk ook niet tot de stan-
daarduitrusting van alle modellen (bestellen bij dealer).
F2.5AMH
1. Motorkap
2. Motorkapvergrendelhendel(s)
3. Draaghendel
4. Stuurfrictieafstelinrichting
5. Anti-cavitatieplaat
6. Propeller*
7. Koelwaterinlaat
8. Trimstang
9. Klembeugel
10.Stuurhendel

Componenten

11.Ontluchtingsschroef
12.Brandstoftankkap
13.Handgreep repeteerstarter
14.Gashendelfrictieafstelling
15.Motorstopknop/Motoruitschakelaar
16.Knevelbout
17.Veiligheidskabelbevestiging
18.Schakelinrichtinghendel
19.Chokeknop
