6. Assembly
6.3 Minimum assembly dimensions
To ensure enough space for maintenance
works (e. g. change of cartridge) and for any
disassembly of the product, adhere to the
minimum assembly dimensions.
380 ml min. fitting dimensions
A = Width
90 mm
B = Height
400 mm
C = Depth
110 mm
B
C
A
G1/4

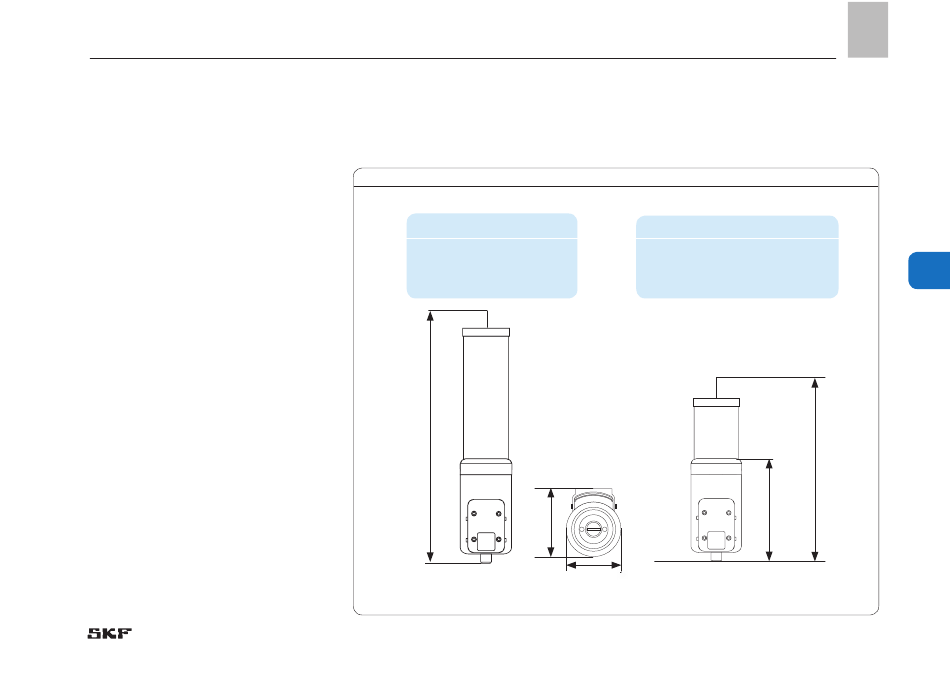

Minimum assembly dimensions Fig. 3
120 ml min. assembly dimensions
A = Width
90 mm
B = Height
300 mm
C = Depth
110 mm
D
D = 172 mm height of drive unit
EN
6
B
23
