6 Assembling the Lawn Mower
► Tighten bolt (5).

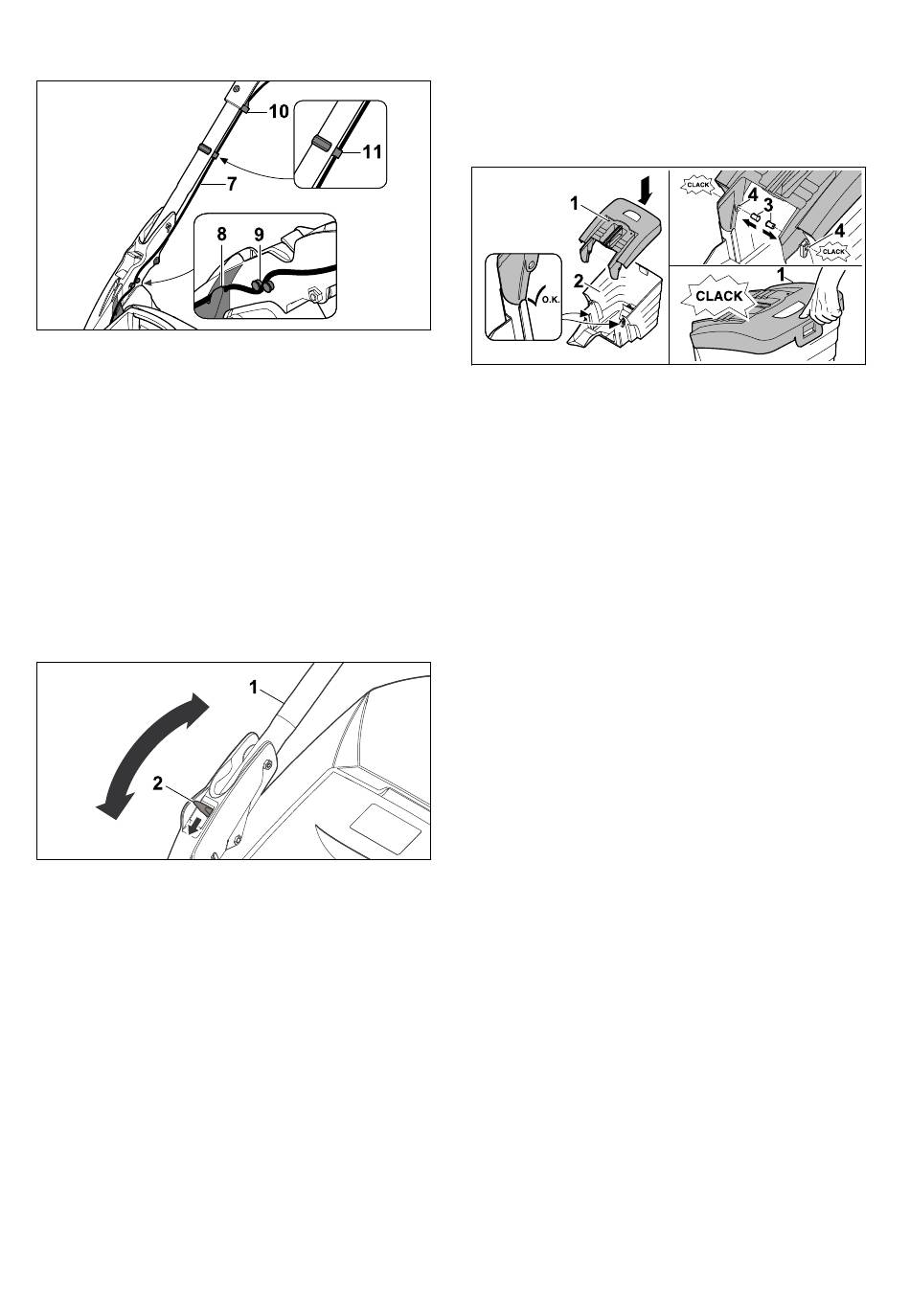

► Insert cable (7) in guide (8) and press into
holders (9 and 10).
► Fasten cable (7) to the handlebar using cable
clip (11).
The handlebar must not be dismantled again.
6.2
Folding Up and Folding the
Handlebar
6.2.1
Adjusting the Handlebar
► Switch the lawn mower off.
► Detach the extension cable connector from the
mains plug of the lawn mower.
► Place the lawn mower on a level surface.
► Hold handlebar (1).
► Press lever (2) downwards and hold.
► Move handlebar (1) into the desired position.
► Release lever (2) and ensure that the handle‐
bar fully engages again.
6.2.2
Folding the Handlebar
The handlebar can be folded for space-saving
transport or storage.
► Switch the lawn mower off.
► Detach the extension cable connector from the
mains plug of the lawn mower.
► Place the lawn mower on a level surface.
► Press and hold the lever.
► Fold down the handlebar forwards.
0478-121-9926-A
6.3
Assembling, Attaching and
Detaching the Grass Catcher
Box
6.3.1
Assembling the Grass Catcher Box
► Fit upper part of grass catcher box (1) onto
lower part of grass catcher box (2).
► Press pins (3) through openings (4) from the
inside.
The pins engage audibly.
► Press upper part of grass catcher box (1)
downwards.
The upper part of the grass catcher box
engages with a click.
6.3.2
Extension Cords
If an extension cord is used, it must have a
ground wire and the wire gage of its conductors
must meet the following minimum requirements –
depending on the line voltage and length of the
extension cord:
If rated voltage on the rating label is 220V to
240V:
– Cord length up to 20 m: AWG 15 / 1.5 mm²
– Cord length 20 m up to 50 m: AWG 13 /
2.5 mm²
If rated voltage on the rating label is 100 V to
127 V:
– Cord length up to 10 m: AWG 14 / 2.0 mm²
– Cord length 10 m up to 30 m: AWG 12 /
3.5 mm²
6.3.3
Attaching the Grass Catcher Box
► Switch the lawn mower off.
► Detach the extension cable connector from the
mains plug of the lawn mower.
► Place the lawn mower on a level surface.
English
