4.

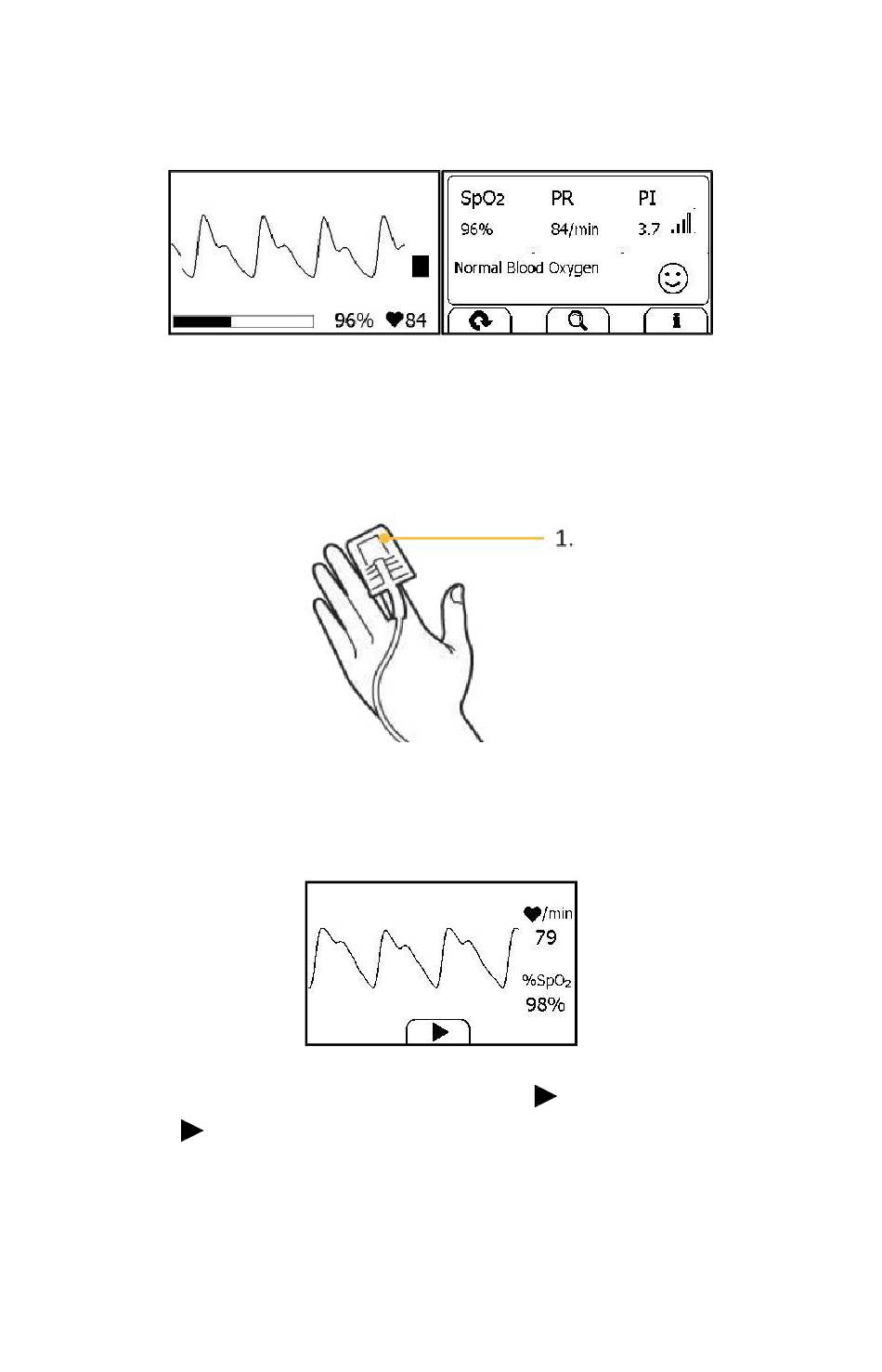

As soon as the device has detected stable curves, it automatically
starts measuring. The counter bar runs from left to right.
5.
After the bar is completely filled, the device analyzes your data and
then displays the measurement result.
Measurements with cable (optional)
1.
Connect the external SpO2 sensor to the multifunction port.
2.
Insert your index or middle finger into the external SpO2 sensor. Make
sure that the cable is placed at the tip of the hand and the fingernail is
in the position shown below.
3.
Press the <pulse oximeter> icon.
4.
Your PLETH curve and your SpO2 and pulse values will then appear on
the screen.
The device carries out the monitoring continuously. However, the data
is only saved after you have pressed the
5.
Press the
from left to right.
6.
After the bar is completely filled, the device analyzes your data and
then displays the measurement result.
1.
Position of the fingernail
key to start recording the SpO2 data. The counter bar runs
key.
26
EN
