MAIN BROOM REPLACEMENT
CAUTION!
It is advisable to wear protective gloves when
replacing the main broom because there can be
sharp debris between the bristles.
1.
Drive the machine on a level ground and engage the
parking brake.
2.
Turn the ignition key (72) to "0".
3.
Unscrew the knobs (23) and remove the right door (22).
4.

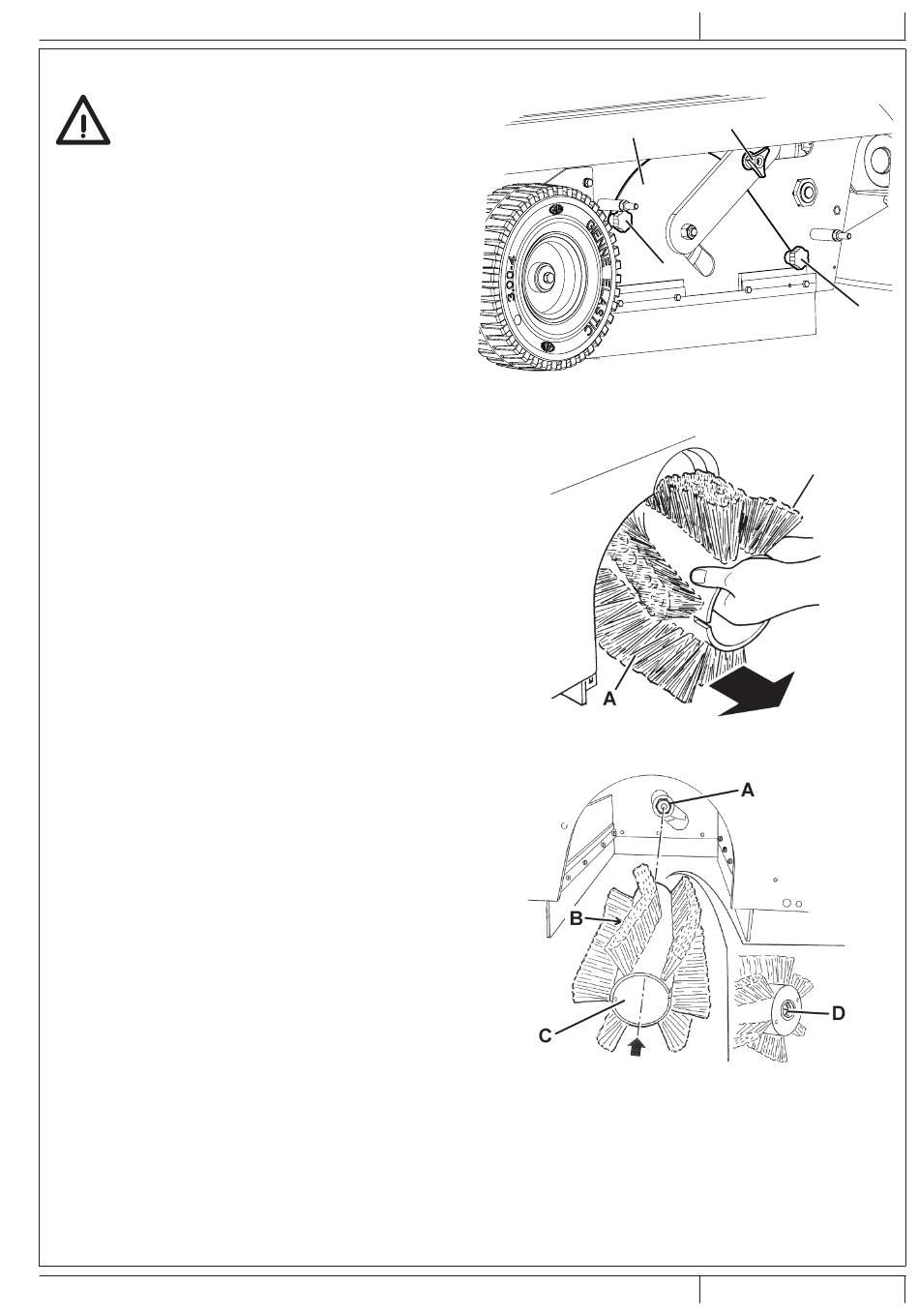

Loosen the knob (A, Fig. 4).
5.
Unscrew the knobs (B) and remove the broom
compartment cover (C).
6.
Remove the broom (A, Fig. 5).
7.
Check that the drive hub (A, Fig. 6) is free from dirt or
foreign materials (ropes, rags, etc.) accidentally rolled up.
8.
The new main broom must be installed with the bristles
rows (B) bent as shown in the figure.
9.
Install the new broom (C) and ensure that the mesh (D)
correctly fits into the relevant drive hub (A).
10. Install the broom compartment cover (C, Fig. 4) and screw
the knobs (B) and (A).
11. Install the right door (22), then screw the knobs (23).
12. Check and adjust the main broom height as shown in the
previous paragraph.
04/2009
INSTRUCTIONS FOR USE
C
B
Figure 4
Figure 5
Figure 6
1464015000 - SR 1101 B
ENGLISH
A
B
S311391
S311392
S311393
19
