It allows you to choose the operating mode of the pumps P1 and P2. ON pump always on, OFF pump always off. In AUTO
mode the panel decides when to switch the pumps on or off. To pass to ON mode, you must hold down the key for at least
3 seconds. When the key is released, the pump returns to the previous mode.
The number of blinks of the leds next to the alarm symbol represents the type of error. There is a legend on the label.
Ebox display label. The functions of the keys are summed up in Table 14.
The MODE key allows you to move on to the next items in the same menu. Holding it down for at least 1 sec allows you
to skip to the previous menu item.
The SET key allows you to leave the current menu.
Decreases the current parameter (if it is an editable parameter). The decreasing speed increases as time passes.
Increases the current parameter (if it is an editable parameter). The increasing speed increases as time passes.
9.1
Status line
When viewing the parameters, at the bottom of the display, there is the system status, showing the status of the pumps, the status of
the floats if present, and the status of the sensors if present. See Figure 58: Selection of the drop-down menus.
9.2
Menus
The complete structure of all the menus and of all the items of which they are composed is shown in Table 16.
9.3
Access to the menus
The various menus can be accessed from the main menu in two ways:
1. Direct access with a combination of keys.
2. Access by name with a drop-down menu.
Direct access with a combination of keys
The desired menu can be accessed directly by pressing simultaneously the appropriate combination of keys (for example MODE SET
to enter the Set Point menu) and the various items in the menu are scrolled with the MODE key.
Table 15 shows the menus that can be reached with the combinations of keys.
MENU NAME
User
Monitor
Setpoint
ENGLISH

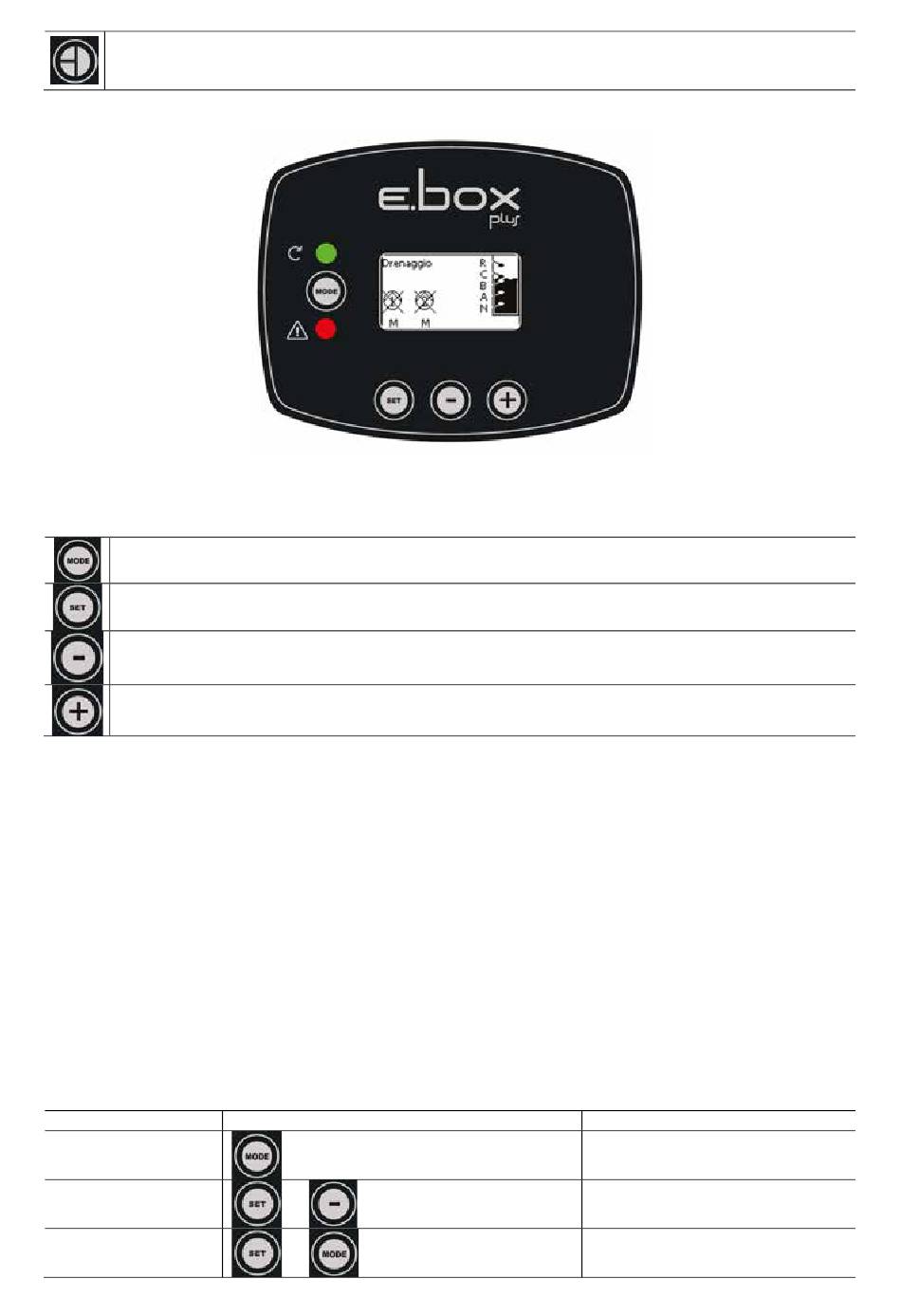

Figure 57: Label, keys and display
Table 14: Key functions
DIRECT ACCESS KEYS
100
HOLD-DOWN TIME
On releasing the button
2 Sec
2 Sec
