ATTENTION: incorrect wiring of the sensor can damage the appliance and the sensor.
NOTE: the choice of sensor limits the maximum set-point that can be reached.
8.7
Operation with pressure switches
If you decide to operate the booster set with pressure switches, they must be connected on the delivery of the booster set. The
pressure switches to be used are B and C and they are connected as indicated in the next paragraph.
8.8
Connection of pressure switches
The pressure switches must be connected to the contacts B and C of the terminal board shown in Figure 47.
8.9
Connecting the low-pressure pressure switch
To comply with the KIWA standard it is necessary to connect a low-pressure pressure switch on the pump intake, set at such a pressure
that it intervenes in the event of water lack.
The pressure switch must be connected to contact N of the Ebox and the contact must open if the pressure falls below the minimum
value. If the KIWA low pressure alarm trips, the set stops and it can be reset only manually, as required by the KIWA standard.
8.10
Setting with the display, wizard
The Ebox D can be configured with a simple wizard. The device asks the user for all the parameters necessary for its configuration. If
necessary, it can be loaded by pressing the "set" + "+" keys when switching on. To navigate in the wizard, use the following keys:
"mode" to accept the parameter displayed and move on to the next,
•
"mode" held down for more than 1 second to return to choose the parameter,
•
"-" e "+" to vary the value of the parameter.
•
ENGLISH

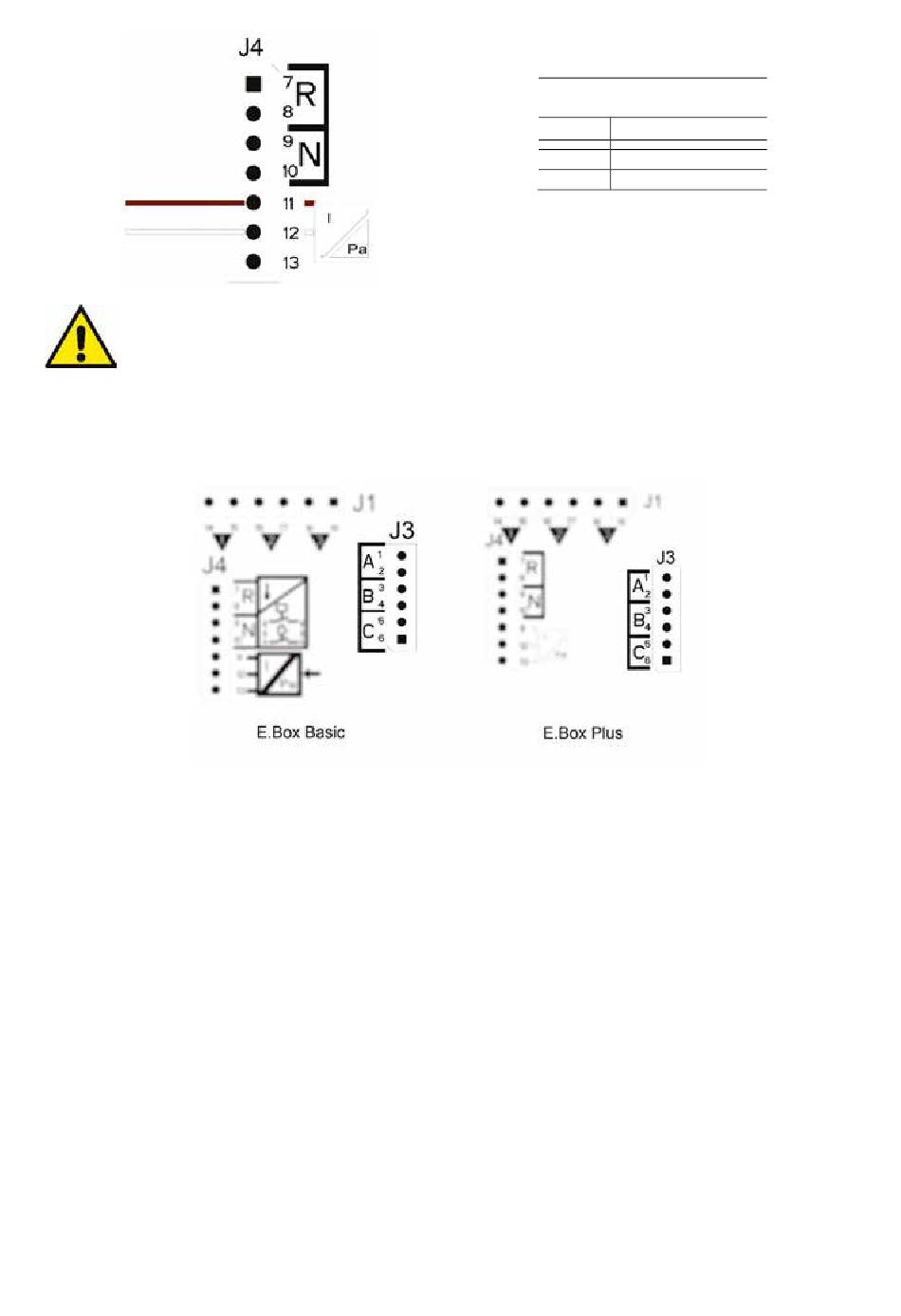

Figure 46: Connection of the pressure sensor 4..20mA
Figure 47: Pressure switch terminal board
95
Pressure sensor connections
4..20mA
Terminal
Cable to be connected
11
- OUT/GND
12
+VCC
