Connecting the units

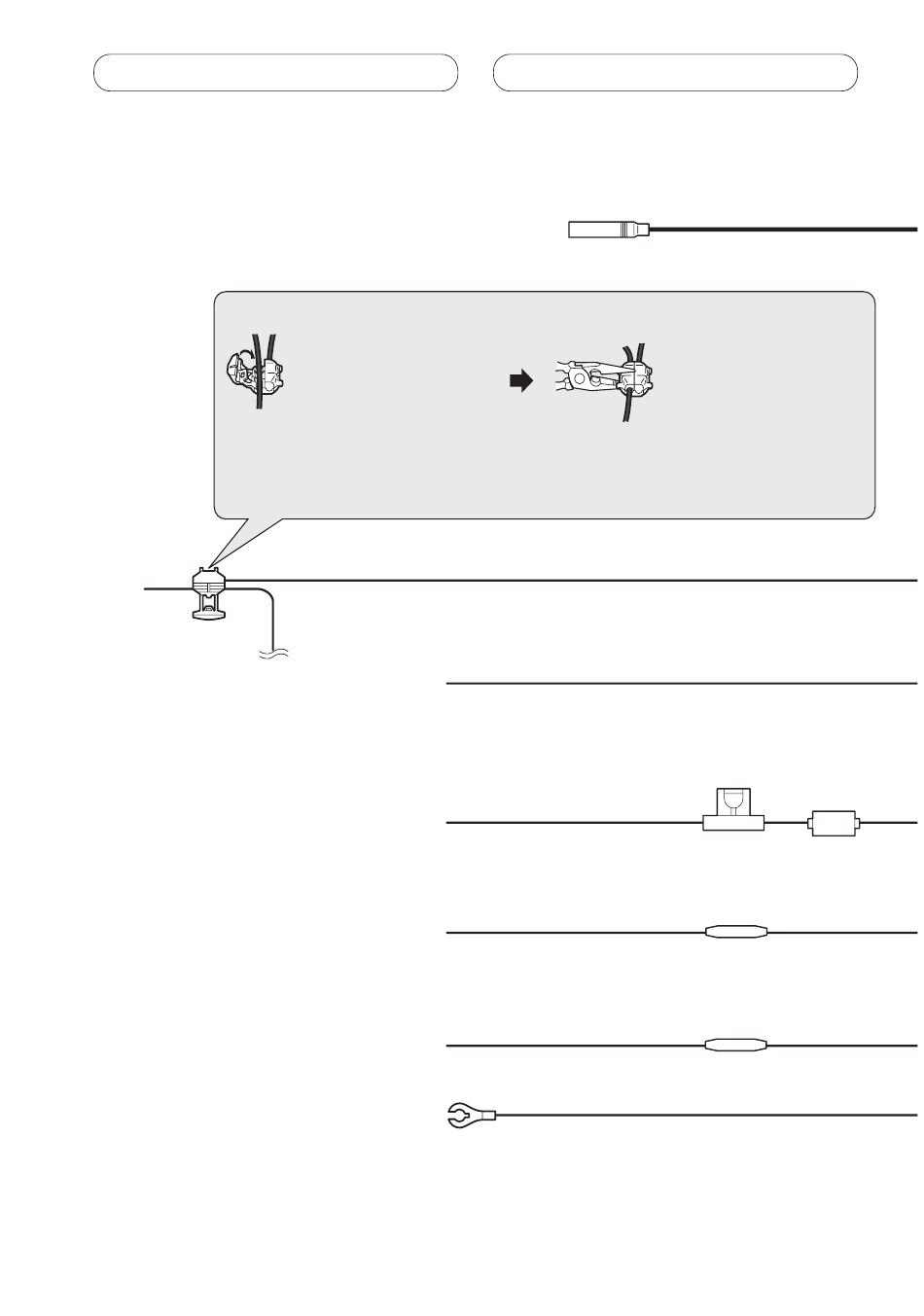

Power cable connection diagram
Connection method
Note:
• The position of the parking brake switch depends on the vehicle model. For details,
consult the vehicle Owner's Manual or dealer.
All manuals and user guides at all-guides.com
1. Clamp the lead.
Yellow/black (DOOR MUTE)
The dome light
control lead
Yellow/black (MUTE)
Yellow (+ Battery)
Red (ACC)
Orange/white (ILL)
Black (chassis ground)
Antenna jack
Connect to the lead which detects door opening.
Usually, connect to the dome light control lead.
If you use an equipment with Mute function, wire this lead
to the Audio Mute lead on that equipment.
If not, keep the Audio Mute lead free of any connections.
Connect to the constant 12 V supply
terminal.
Connect to terminal controlled by
ignition switch (12 V DC).
Connect to lighting switch terminal.
Connect to a clean, paint-free metal location.
15 cm
2. Clamp firmly with
needle-nosed pliers.
Fuse (7.5A)
Fuse resistor
Fuse resistor
