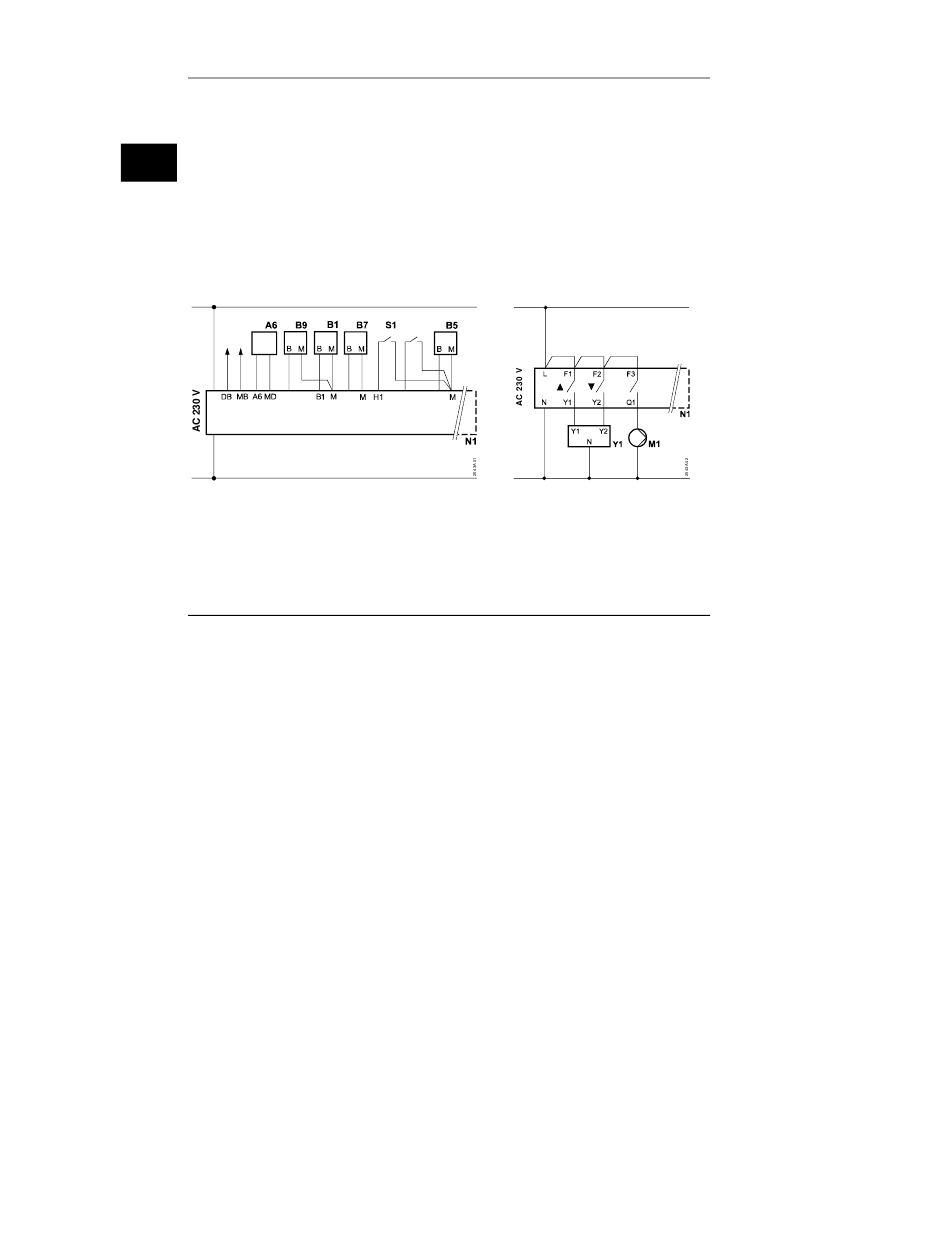

Connection diagrams
A6
Room unit
B1
Flow temperature sensor
B5
Room temperature sensor
B7
Return temperature sensor
en
B9
Outside sensor
LPB Data bus (Local Process Bus)
M1
Heating circuit pump
N1
Controller RVL479
S1
Remote control operating mode
S2
Remote control flow temperature setpoint
Y1
Actuator of heating circuit
Basic connections on the low
voltage side
LPB
D1 D2
L
B9
N
