USER MANUAL
BRUSH/PAD-HOLDER/CYLINDRICAL BRUSH DECK DISASSEMBLY/ASSEMBLY
The machine can be equipped with either the brush/pad-holder deck (18a and 18b) or the cylindrical brush deck (18c).
NOTE
When the deck is installed/removed, it could be necessary to replace the squeegee, because they must have
the same width. For correct matching of deck and squeegee, see the Squeegee Installation paragraph.
Disassembly
1.
Drive the machine on a level floor.
2.
Remove the brushes/pad-holders according to the procedure shown in the relevant paragraph. Do not remove the
cylindrical brushes.
3.
Lower the brush/pad-holder deck by pressing the pedal (11).
4.
If equipped, remove the cotter pins (B, Fig. 11) and the gas spring (A).
5.
Disconnect the brush/pad-holder motor electrical connection (D).
6.
Disconnect the solution hose union (E).
7.
Remove the screws (C), then remove the brush/pad-holder deck (F).
Assembly
8.
Assemble the components in the reverse order of disassembly, and note the following:
– When the machine is equipped with the cylindrical brush deck (18c), the gas spring (A) must not be installed.
B
A
B
32
All manuals and user guides at all-guides.com
C

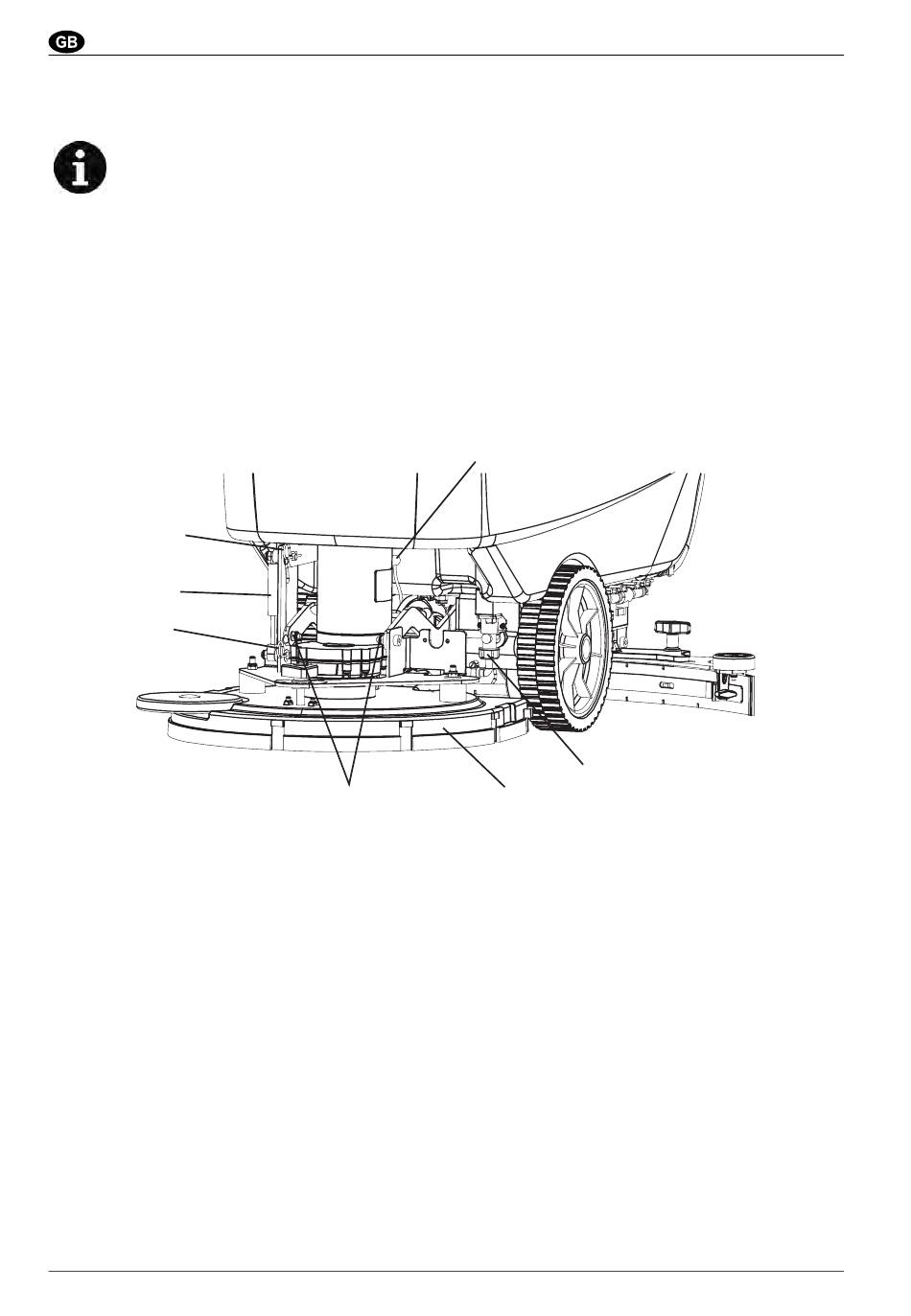

Figure 11
D
E
F
S311325
909 6752 000(2)2006-10 A
