ENGLISH

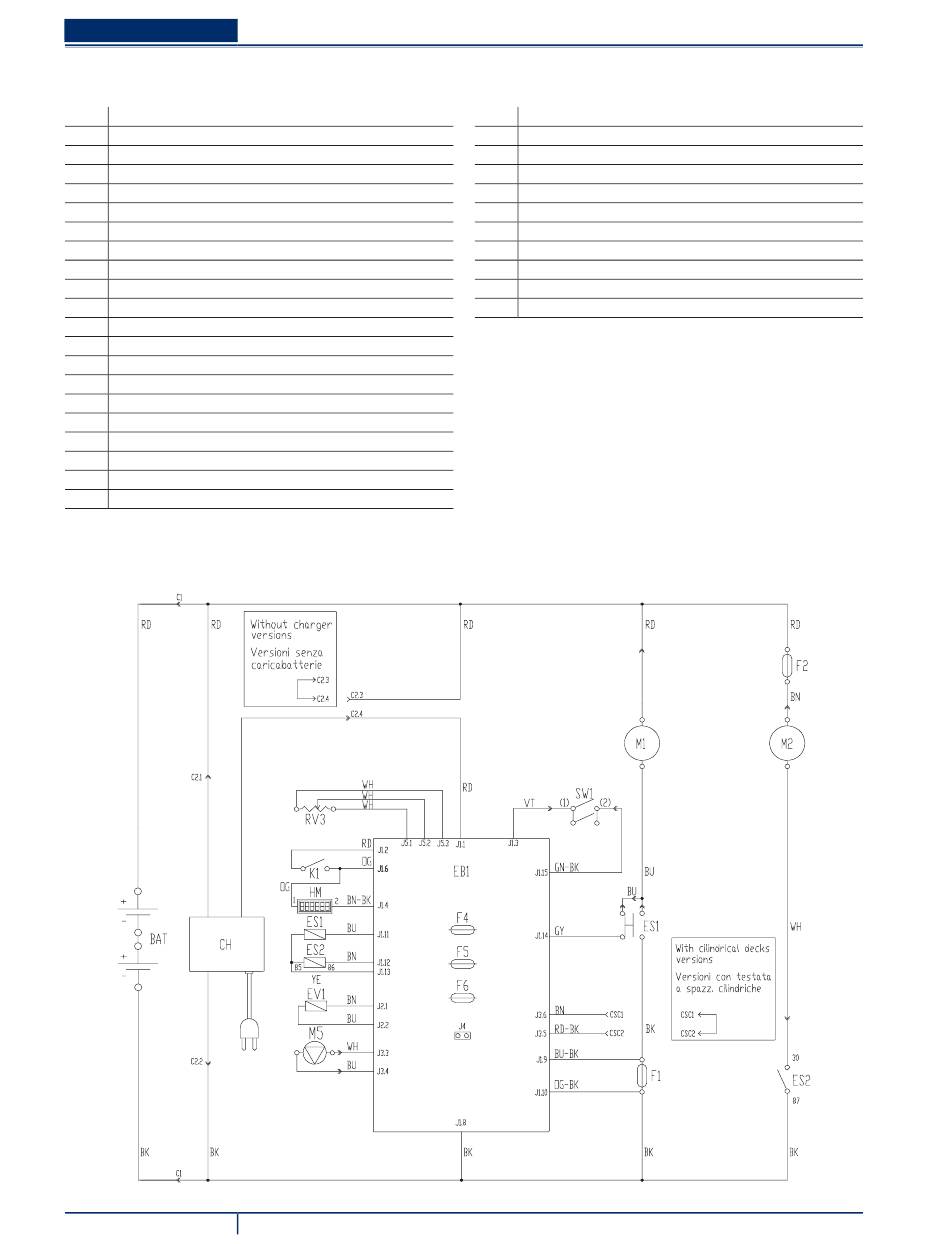

WIRING DIAGRAM (SCRUBTEC 545B - 553B)
Key
BAT
24 V battery
C1
Battery connector
C2
Battery charger connector
CH
Battery charger (optional)
CS
Deck connector
EB1
Function electronic board
ES1
Brush electromagnetic switches
ES2
Vacuum system relay
EV1
Water solenoid valve
F1
Deck fuse
F2
Vacuum system fuse
F4
Signal circuit fuse
F5
Brush release fuse
F6
Pump fuse
HM
Hour counter (optional)
K1
Ignition key
M1
Brush/pad-holder motor
M2
Vacuum system motor
M5
Detergent pump (optional)
RV3
Detergent % potentiometer (optional)
SW1
Brush/drive system enabling switch
10
All manuals and user guides at all-guides.com
USER MANUAL
SCRUBTEC 545B – 545BL – 553B – 553BL – BOOST 5
Colour codes
BK
Black
BU
Blue
BN
Brown
GN
Green
GY
Grey
OG
Orange
PK
Pink
RD
Red
VT
Violet
WH
White
YE
Yellow
P100127
9097054000(2)2009-06 A
