ENGLISH

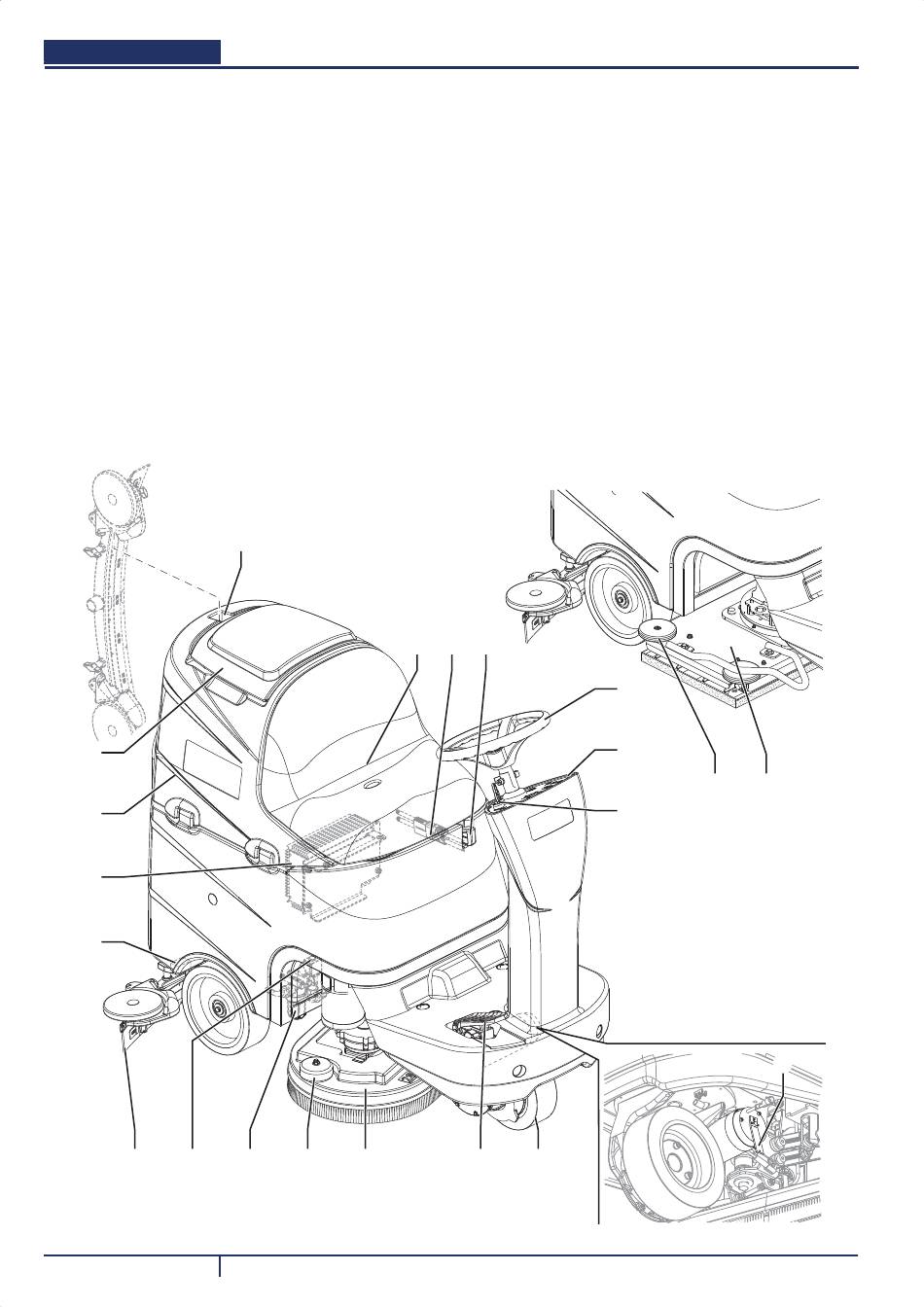

MACHINE DESCRIPTION
MACHINE STRUCTURE
1.
Steering wheel
2.
Control panel (see the following paragraph)
3.
Ignition key
4.
Forward/reverse gear pedal
5.
BOOST
®
vibrating deck
6.
Front steering, driving and braking wheel
7.
Electromagnetic brake unlocking lever
8.
Emergency push-button
9.
Battery connector
10.
Brush/pad-holder deck
20
19
16
14
18
13
6
Bedienungsanleitung auf www.gluesing.net
USER MANUAL
15
12
11
10
SCRUBTEC R 466 - R 471 - R 471C - BOOST
11.
Bumper wheel
12.
Solution Þ lter
13.
Solenoid valve
14.
Solution/clean water opening/closing tap
15.
Squeegee hook
16.
Battery charger
17.
Seat
18.
Squeegee blades assembly
19.
Dumping recovery tank assembly
20.
Recovery tank cover
17
9
8
4
6
®
R4
1
2
11
5
3
7
9098960000(1)2011-04 A
