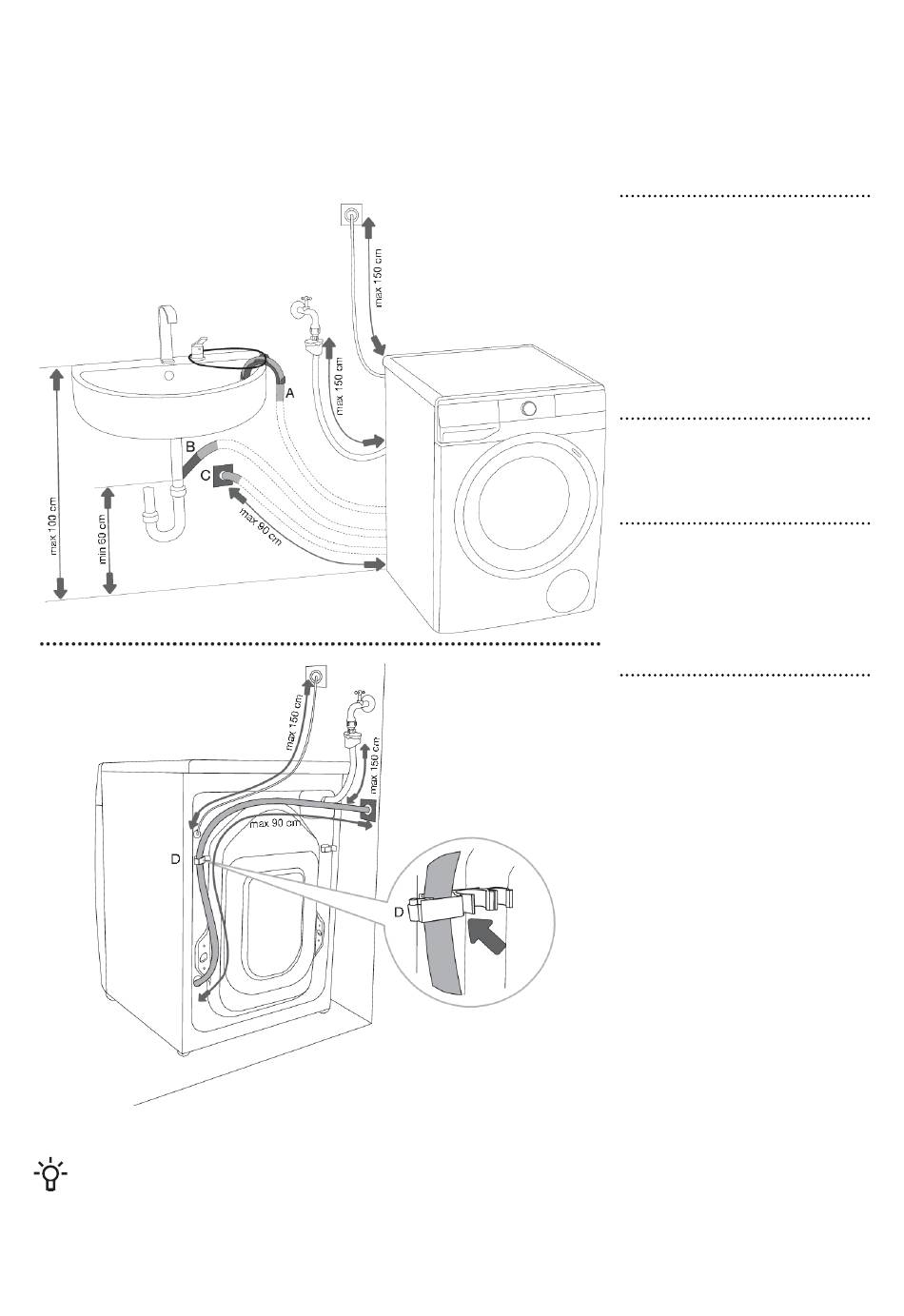

Connecting and securing the water discharge hose
Feed the water discharge hose into a washbasin or a bathtub, or connect it directly to a drain (minimum
drain connection diameter is 4 cm). The vertical distance from the floor to the end of the discharge
hose may be no more than 100 cm and no less than 60 cm. It can be attached in three ways (A, B,
C).
INFORMATION!
If the discharge hose is not correctly attached, safe and correct washing machine operation
cannot be ensured.
22
A
Discharge hose end
may be placed over a
washbasin or a bathtub. B
Use a string fed through the
opening in the elbow
support to attach the hose
and prevent it from slipping
to the floor.
B
Discharge hose may
also be attached directly to
the washbasin drain.
C
Discharge hose can
also be attached to a wall
drain with a trap; such trap
should be properly installed
to allow cleaning.
D
The discharge hose has
to be attached and affixed
to the pin on the back of the
washing machine, as shown
in the figure.
