IMPORTANT! Before connecting the power supply unit's supply fuses, check the
è
precision of the connections in the system. Check both visually, and by
measurement with an ohmmeter.
IMPORTANT! Install the protection lids of the power supply unit's connections
è
before connecting the 2 supply fuses (230V/50Hz).
DO NOT TOUCH the wires exiting from the connectors and the terminals of the
è
power supply unit. Disconnect the fuses (10 A) from the supply's phase and null of
the power supply unit.
ATTENTION! Do not supply components of the installation separately (outdoor
è
panel, terminals etc.) at tensions higher than 15Vd.c. or directly from the network
(230V/50Hz). DANGER OF ELECTRIC SHOCK and of the door phone system's
destruction.

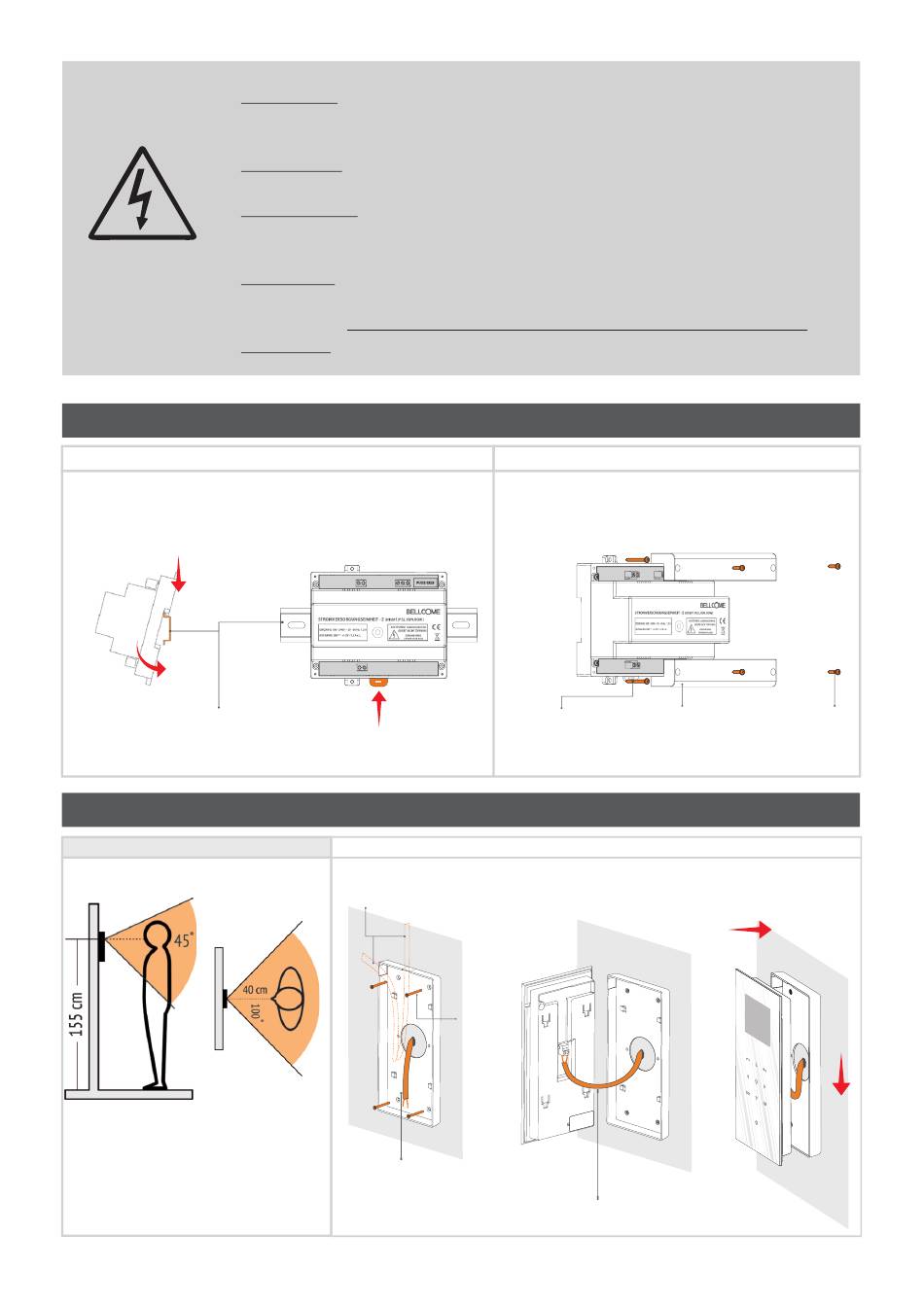

4.3 Installation of the Power supply unit
DIN rail mounting
1
2
DIN rail
4.4
Installation of the video Terminal
Before starting...
The terminal will be placed at 155cm
height (recommended height).
POWER SUPPLY - 2 smart
(PS2.VDN.ENW)
INPUT: ~230V ± 10% / 50 Hz / 0,4 A
OUTPUT:
28V ± 10% / 1,2 A
RISK OF
ELECTRICAL SHOCK!
3
Retainer
Options
for cable passage
Screw
A3,5 × 35(32)
(4 pcs.)
≈20 cm
Cable lenght
(from the wall)
Wall mounting
POWER SUPPLY - 2 smart
(PS2.VDN.ENW)
INPUT: ~230V ± 10% / 50 Hz / 0,4 A
OUTPUT:
28V ± 10% / 1,2 A
A3,5 x 32 screw (2 pcs.)
Protection lid (2 pcs.)
Surface mounting
Door phone cable
RISK OF
ELECTRICAL SHOCK!
B2,9 x 13 screw (4 pcs.)
1
2
06/16
