All manuals and user guides at all-guides.com
1
Torx
Screw

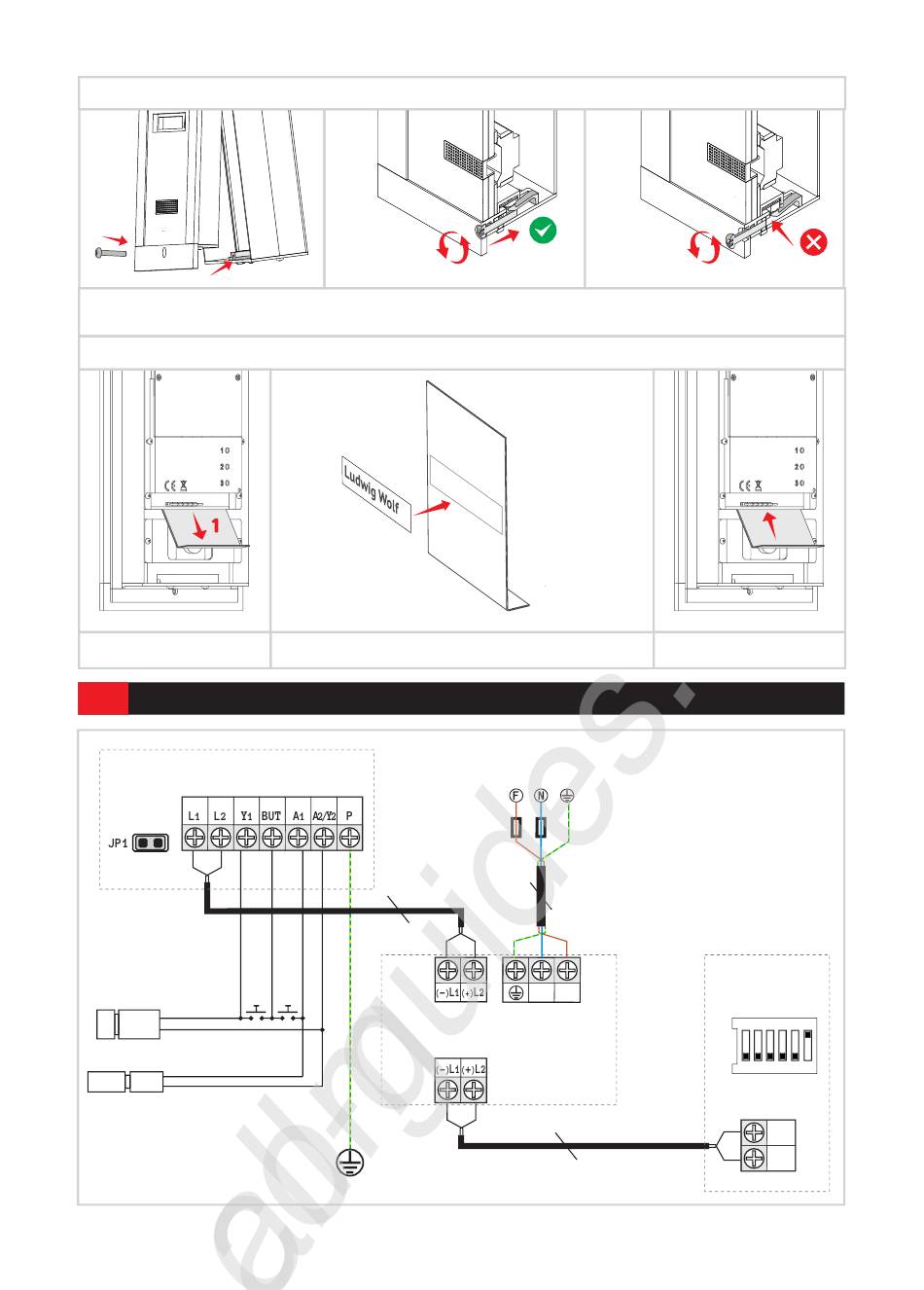

The Torx screw must be completely screwed. Otherwise, when the system is powered, the Panel emits a permanent acoustic signal. This warning
function is useful if an unauthorized person tries to open the Outdoor panel. The alarm turns on immediately after one starts to unscrew the Torx.
Remove the plastic pad from the
keyboard module
5
CONNECTION DIAGRAM
Outdoor panel
Electromagnetic
lock
(Optional)
Auxiliary command
(Optional)
Antitheft protection
2
Customization of name display
Affix a sticker with the name, cut to size, in the space allocated to it.
2x Sig. 10A
2
to the
Outdoor
panel
Power supply
3
230 V AC/50Hz
Electrical panel
N
F
to the
Terminal
2
2
Insert the pad back into the
keyboard module
Terminal
ON
OFF
1 2 3 4 5 6
L
1
L
2
08/16
