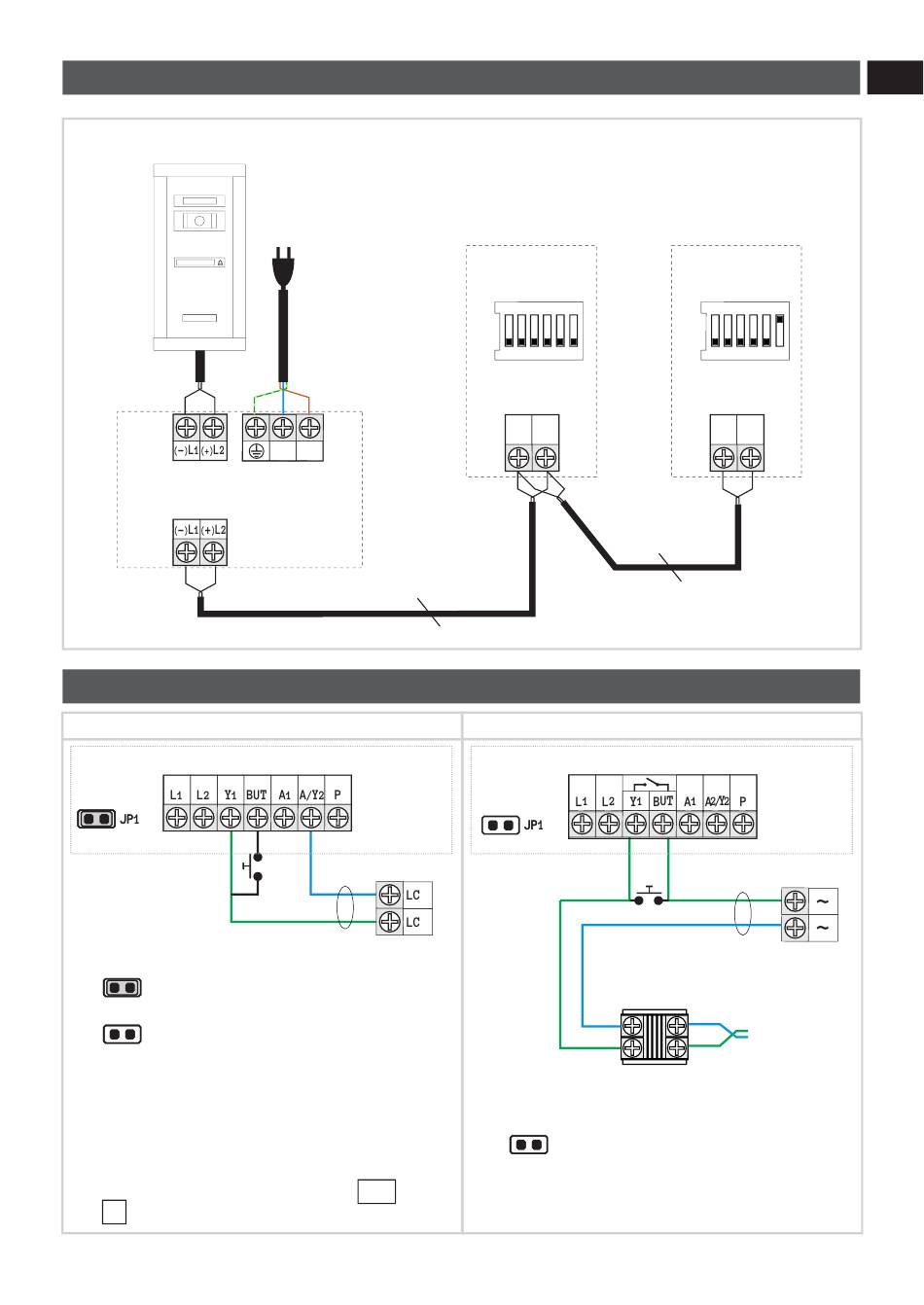

5.1 Parallel connection of an additional Terminal (optional)
Outdoor panel
to the
Outdoor
panel
Power supply
to the
Terminal

5.2 Installation of the electromagnetic lock (optional)

Direct current (DC)
Outdoor panel
2 x 0.75 mm²
JP1 connected: The Outdoor panel can
Ÿ
supply the lock with maximum 0.25A.
JP1 not connected: The lock is
Ÿ
supplied from an external DC source (see
adjoining diagram). The Outdoor panel can
switch a current of maximum 1A for the
supply of the lock.
The lock actuating button (push button -
Ÿ
normal open) from the interior of the
building will be connected to the BUT and
Y1 terminals of the Outdoor panel.
230 V AC
N
F
2
Cable
1
2
Direct current
electromagnetic lock (DC)
Main
Terminal
ON
OFF
1 2 3 4 5 6
L
L
1
2
Alternative current (AC)
Outdoor panel
12 V AC
Transformer
JP1 not connected : The Outdoor panel
Ÿ
can switch a maximum current of 1A AC for
the lock.
Additional
Terminal
ON
OFF
1 2 3 4 5 6
L
L
1
2
2
Cable
2 x 0.75 mm²
Alternative current
electromagnetic lock (AC)
230 V AC
EN
09/16
