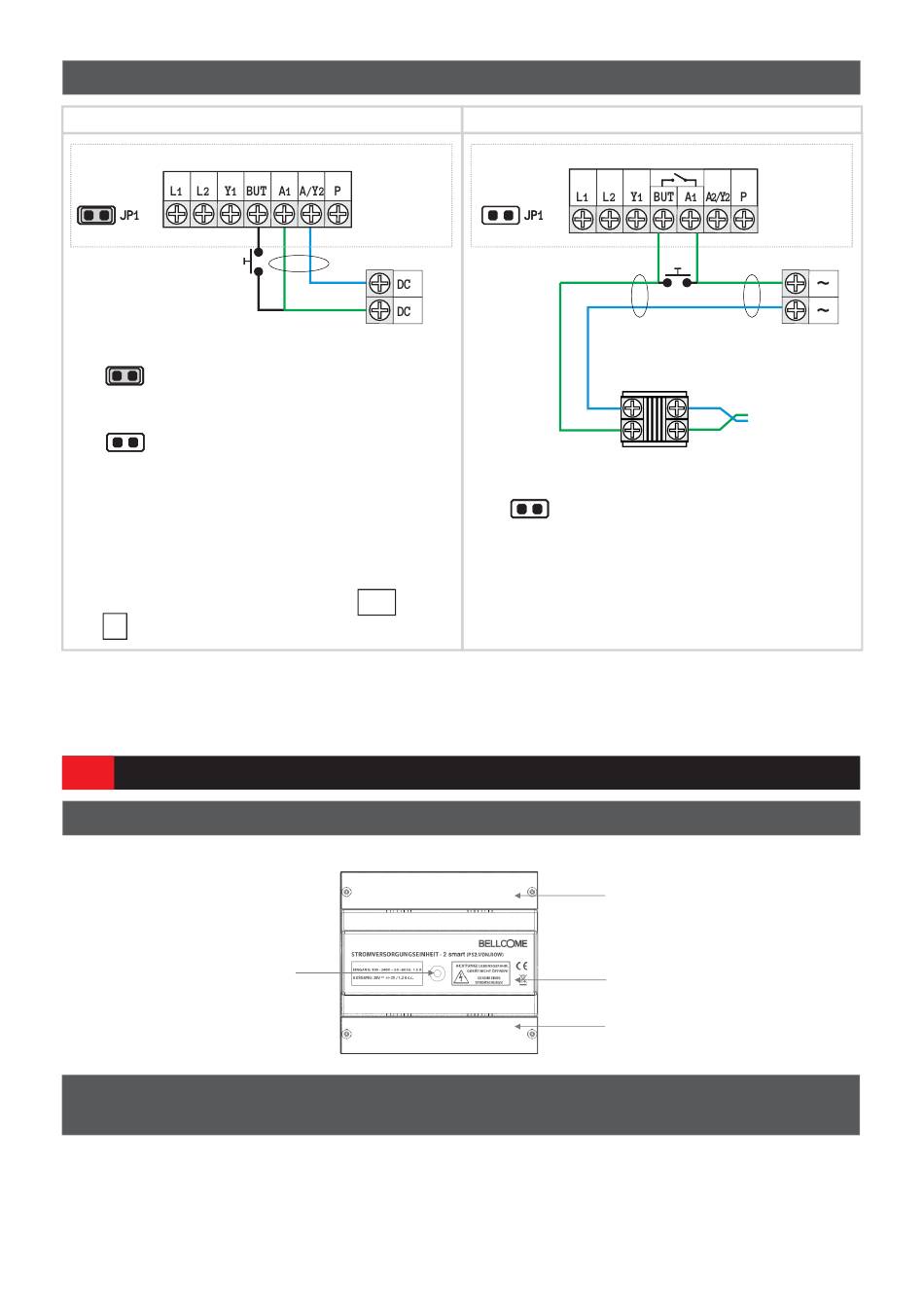

5.3 Connection of the auxiliary command (optional)
Direct current (DC)
Outdoor panel
JP1 connected: The outdoor panel can
Ÿ
supply the auxiliary automation with
maximum 0.25A.
JP1 not connected: The auxiliary
Ÿ
automation is supplied from an external DC
source (see adjoining diagram). The outdoor
panel can switch a current of maximum 1A
for the supply of the auxiliary automation.
The lock actuating button (push button -
Ÿ
normal open) from the interior of the
building will be connected to the BUT and
A1 terminals of the outdoor panel.
Note:
After the correct installation of the electromagnetic lock and/or of the auxiliary automation, the Unlock Parameter must be
set on one terminal (See S6. Unlock parameter settings). The parameter will be saved in the Outdoor panel automatically, so you
need to set only one terminal. ( in case there is another terminal connected in parallel).
6
COMMISIONING OF THE SYSTEM
6.1 Description of the Power supply unit
The Power supply unit
includes:
LED - GREEN signaling
= presence of tension
6.2 The checking of connections in the system and the connection of
the power supply unit
Check the precision of the connections in the system!
Connect the Power supply unit to the 230 V AC network, by connecting the two automatic 10A
fuses, installed on phase and null.
All manuals and user guides at all-guides.com
Cable 2 x 0.75 mm²
1
2
Auxiliary automation
- direct current (DC)
POWER SUPPLY - 2 smart
INPUT: ~230V ± 10% / 50 Hz / 0,4 A
OUTPUT:
28V ± 10% / 1,2 A
Alternative current (AC)
12 V AC
JP1 not connected : The outdoor panel
Ÿ
can switch a maximum current of 1A AC for
the auxiliary automation.
(PS2.VDN.ENW)
CAUTION!
CAUTION!
DO NOT REMOVE
DO NOT REMOVE
THE SAFETY LID!
THE SAFETY LID!
RISK OF
ELECTRICAL SHOCK!
Outdoor panel
Cable
2 x 0.75 mm²
automation
-alternative current (AC)
230 V AC
Transformer
Protection lid for
connections
Front lid
Protection lid
for connections
Auxiliary
10/16
