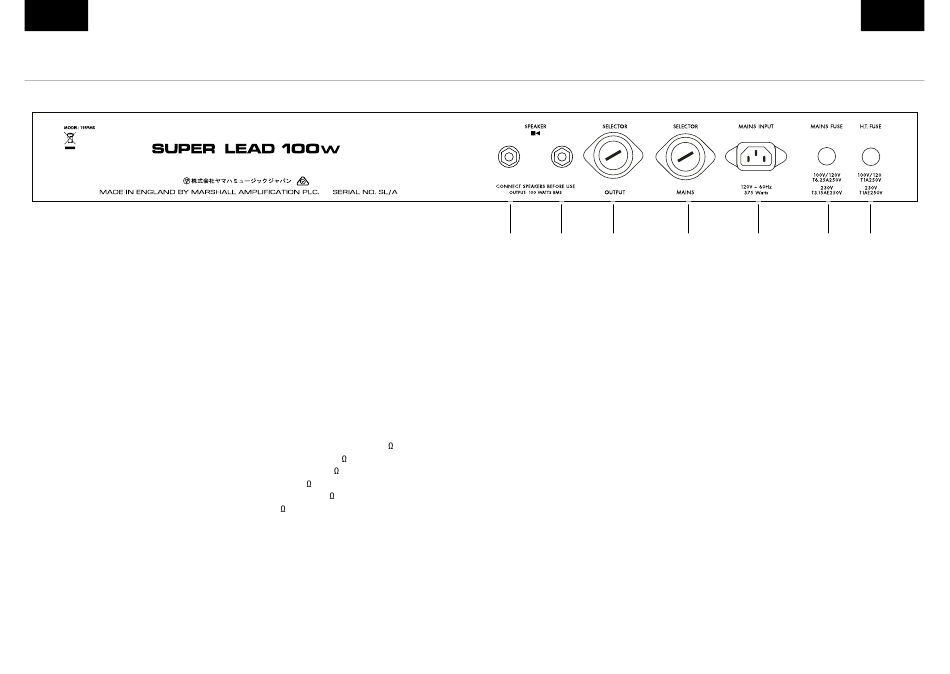

REAR PANEL FUNCTIONS
1 & 2. SPEAKER OUTPUTS
Connect one or two speaker cabinets here using 1/4"
jack speaker cables.
Warning: Always ensure the output impedance
selector is set to the appropriate impedance for the
load of your setup (speaker cabinets). Never use this
amp without a speaker or load.
6
3. OUTPUT IMPEDANCE SELECTOR
Matches the amplifier's output to the load impedance.
Ensure the amp is completely powered down before
turning the selector.
The impedance selected on the amp must match the
total impedance of the speaker cabinet(s) being used.
Common setups include:
• If the amp is running into a single 16 cabinet, the
selector should be set to 16 .
• If running into two 16 cabinets, the selector
should be set to 8 .
• If running into two 8 cabinets, the selector should
be set to 4 .
Warning: Failure to comply with these points may
result in damage to the amplifier.
1
2
3
4
4. MAINS SELECTOR
Matches the amplifier mains transformer voltage to the
incoming mains voltage. The mains selector must be
set to the voltage of the mains supply. Your amp should
be completely powered down before the selector is
turned.
Warning: Consult a qualified technician before
adjusting the mains selector.
ENGLISH
5
6
7
5. POWER INLET
The supplied mains power lead is connected here.
6. MAINS FUSE
The correct value of mains fuse is specified on the rear
panel.
7. H.T. FUSE
The correct value of H.T. fuse is specified on the rear
panel.
