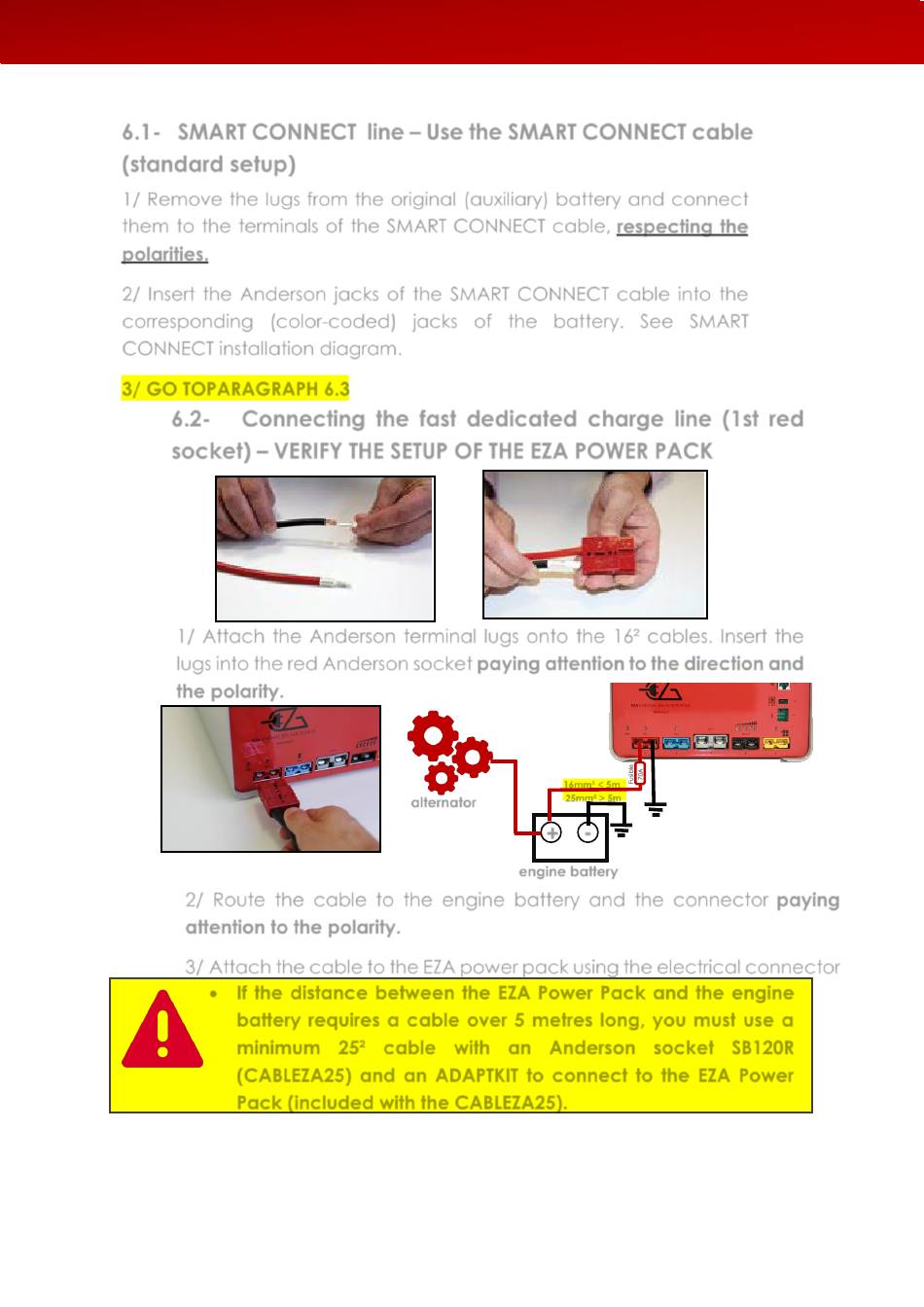

6.1- SMART CONNECT line – Use the SMART CONNECT cable
(standard setup)
1/ Remove the lugs from the original (auxiliary) battery and connect
them to the terminals of the SMART CONNECT cable, respecting the
polarities.
2/ Insert the Anderson jacks of the SMART CONNECT cable into the
corresponding (color-coded) jacks of the battery. See SMART
CONNECT installation diagram.
3/ GO TOPARAGRAPH 6.3
6.2-
Connecting the fast dedicated charge line (1st red
socket) –
VERIFY THE SETUP OF THE EZA POWER PACK
1/ Attach the Anderson terminal lugs onto the 16² cables. Insert the
lugs into the red Anderson socket paying attention to the direction and
the polarity.
2/ Route the cable to the engine battery and the connector paying
attention to the polarity.
3/ Attach the cable to the EZA power pack using the electrical connector
• If the distance between the EZA Power Pack and the engine
battery requires a cable over 5 metres long, you must use a
minimum 25² cable with an Anderson socket SB120R
(CABLEZA25) and an ADAPTKIT to connect to the EZA Power
Pack (included with the CABLEZA25).
16mm² < 5m
25mm² > 5m
alternator
-
+
engine battery
47
