CABLE SECTION AREA
25mm²<5m
35mm²>5m
125A Fuse
Alternator
Starter battery

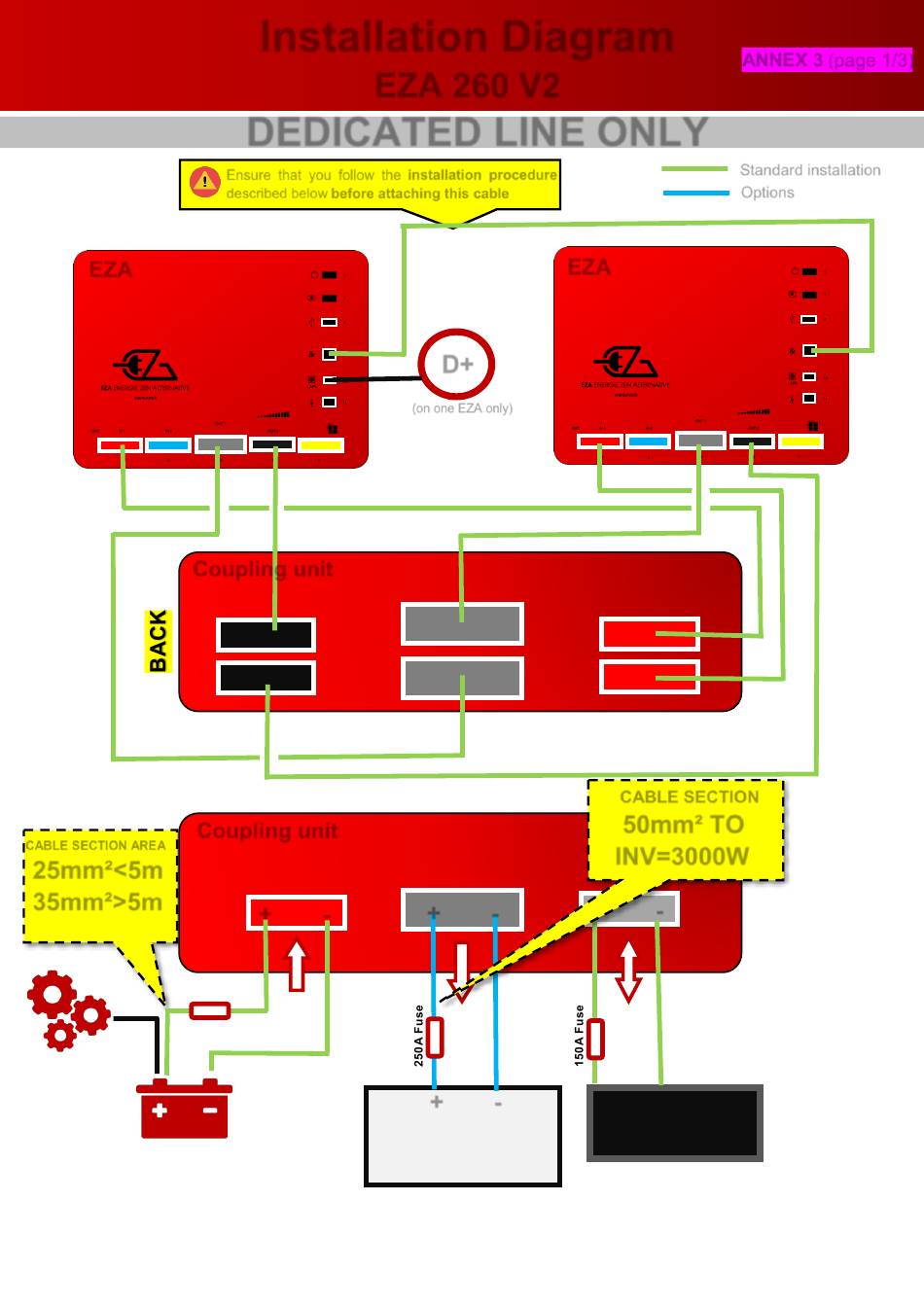

Installation Diagram
EZA 260 V2
DEDICATED LINE ONLY
Ensure that you follow the installation procedure
described below before attaching this cable
+
-
12/230V INVERTER
MAX 3000W cointinuous
EZA
D+
(on one EZA only)
+
-
+
-
7200W peak
ANNEX 3 (page 1/3)
Standard installation
Options
CABLE SECTION
50mm² TO
INV=3000W
+
-
CENTRAL
ELECTRICAL PANEL
12V / 140 Amp
