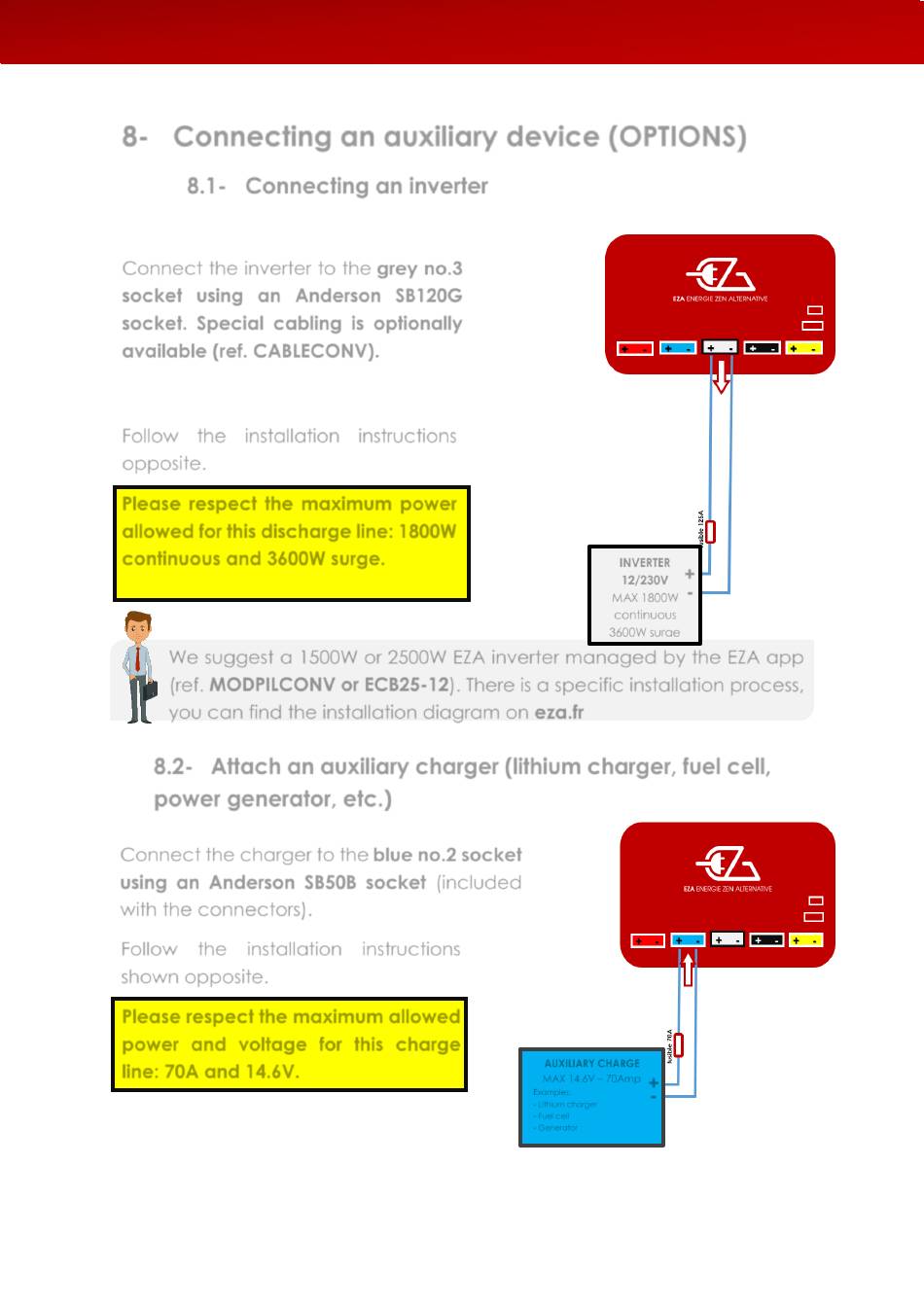

8- Connecting an auxiliary device (OPTIONS)
8.1- Connecting an inverter
Connect the inverter to the grey no.3
socket using an Anderson SB120G
socket. Special cabling is optionally
available (ref. CABLECONV).
Follow the installation instructions
opposite.
Please respect the maximum power
allowed for this discharge line: 1800W
continuous and 3600W surge.
We suggest a 1500W or 2500W EZA inverter managed by the EZA app
(ref. MODPILCONV or ECB25-12). There is a specific installation process,
you can find the installation diagram on eza.fr
8.2- Attach an auxiliary charger (lithium charger, fuel cell,
power generator, etc.)
Connect the charger to the blue no.2 socket
using an Anderson SB50B socket (included
with the connectors).
Follow
the
installation
shown opposite.
Please respect the maximum allowed
power and voltage for this charge
line: 70A and 14.6V.
instructions
Examples:
- Lithium charger
- Fuel cell
- Generator
INVERTER
+
12/230V
-
MAX 1800W
continuous
3600W surge
AUXILIARY CHARGE
AUXILIARY LOAD
+
MAX 14.6V – 70Amp
MAX 12V – 70A
+
-
_
examples:
- lithium charger
- fuel cell
- power generator
54
