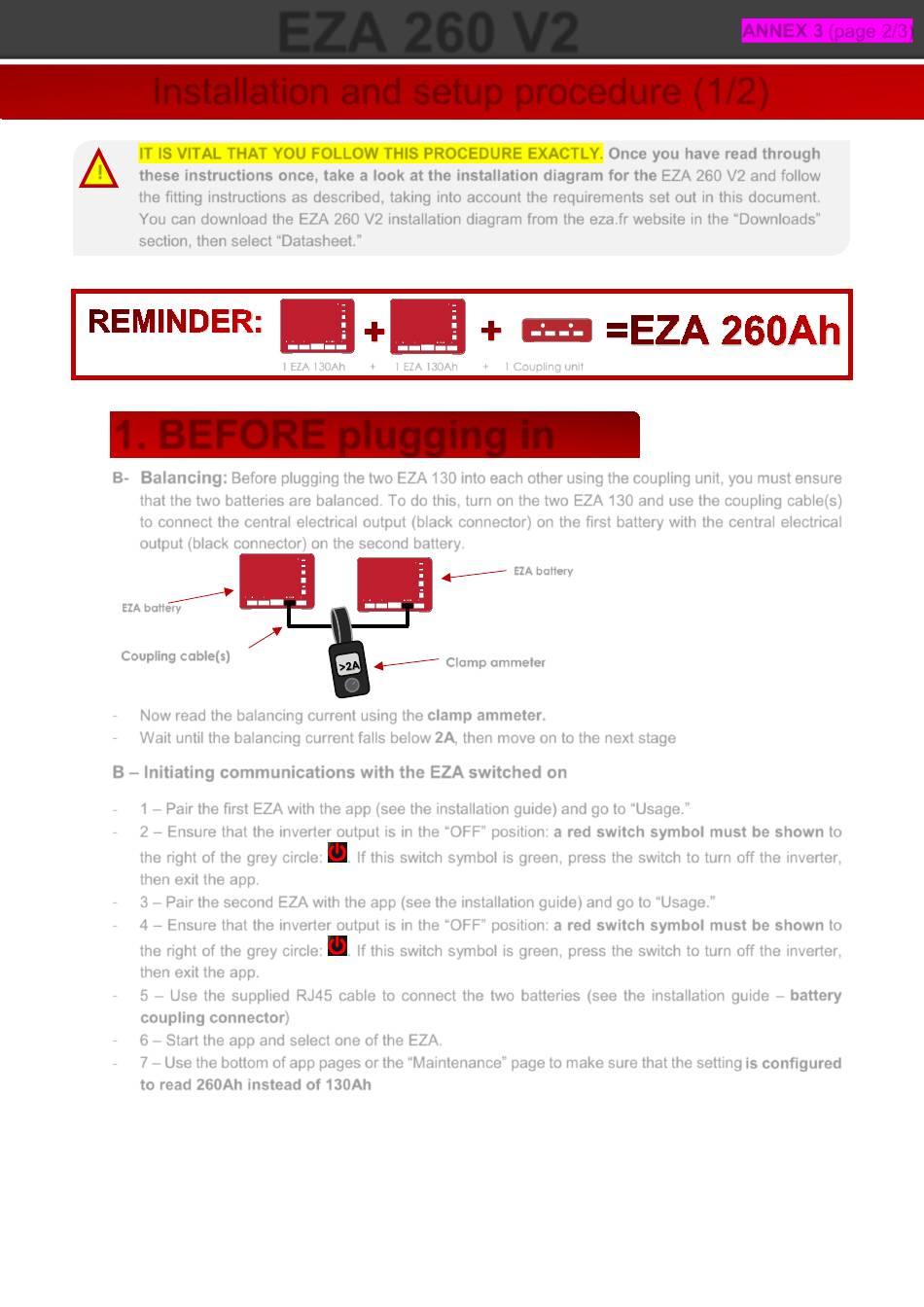

Installation and setup procedure (1/2)
IT IS VITAL THAT YOU FOLLOW THIS PROCEDURE
!
!
these instructions once, take a look at the installation diagram for the EZA 260 V2 and follow
the fitting instructions as described, taking into account the requirements set out in this document.
You can download the EZA 260 V2 installation diagram from the eza.fr website in the "Downloads"
section, then select "Datasheet."
1.
BEFORE
Balancing:
B-
Before plugging the two EZA 130 into each other using the coupling unit, you must ensure
that the two batteries are balanced. To do this, turn on the two EZA 130 and use the coupling cable(s)
to connect the central electrical output (black connector) on the first battery with the central electrical
output (black connector) on the second battery.
EZA battery
Coupling cable(s)
-
Now read the balancing current using the clamp ammeter.
-
Wait until the balancing current falls below 2A, then move on to the next stage
B – Initiating communications with the EZA switched on
-
1 – Pair the first EZA with the app (see the installation guide) and go to "Usage."
-
2 – Ensure that the inverter output is in the "OFF" position: a red switch symbol must be shown to
the right of the grey circle:
then exit the app.
-
3 – Pair the second EZA with the app (see the installation guide) and go to "Usage."
-
4 – Ensure that the inverter output is in the "OFF" position: a red switch symbol must be shown to
the right of the grey circle:
then exit the app.
-
5 – Use the supplied RJ45 cable to connect the two batteries (see the installation guide – battery
coupling connector)
-
6 – Start the app and select one of the EZA.
-
7 – Use the bottom of app pages or the "Maintenance" page to make sure that the setting is configured
to read 260Ah instead of 130Ah
EZA 260 V2
1 EZA 130Ah
+
1 EZA 130Ah
plugging in
Clamp ammeter
. If this switch symbol is green, press the switch to turn off the inverter,
. If this switch symbol is green, press the switch to turn off the inverter,
EXACTLY. Once you have read through
+
1 Coupling unit
EZA battery
ANNEX 3 (page 2/3)
