ENGLISH

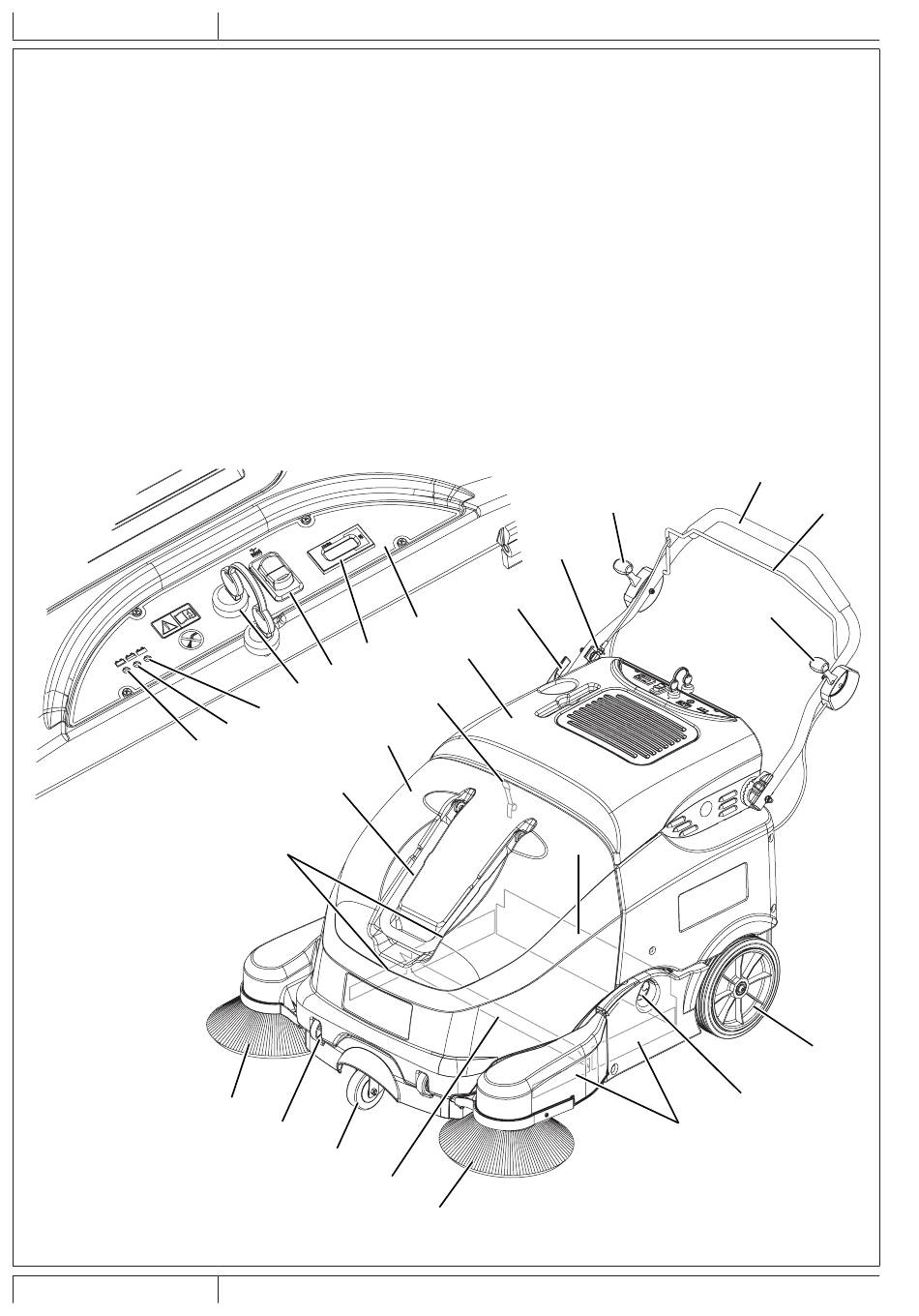

MACHINE DESCRIPTION
MACHINE STRUCTURE
1.
Control panel
2.
Ignition key:
•
Position "0": The machine is off and all functions are
disabled
•
Position "I": The machine is on and all functions are
enabled
3.
Electrical filter shaker switch
4.
Charged battery LED (green)
5.
Semi-discharged battery LED (yellow)
6.
Discharged battery LED (red)
7.
Hour counter
8.
Drive control lever
9.
Drive system control adjuster
10. Handlebar
11. Handlebar tilting adjusting lever
12. Right side broom lifting/lowering lever
6
USER MANUAL
7
3
2
4
5
6
15
26
18
16
17
SW900 - 1465366000
13. Left side broom lifting/lowering lever (optional)
14. Hopper
15. Hopper transport handle
16. Hopper wheels
17. Front pivoting wheel
18. Right side broom
19. Left side broom (optional)
20. Rear driving wheels
21. Battery and main motor hood
22. Front hood latch
23. Left door opening/closing knob
24. Front skirt
25. Rear skirt
26. Side skirts
11
1
21
22
14
24
19
12
9
25
26
10
8
13
20
23
P100813
